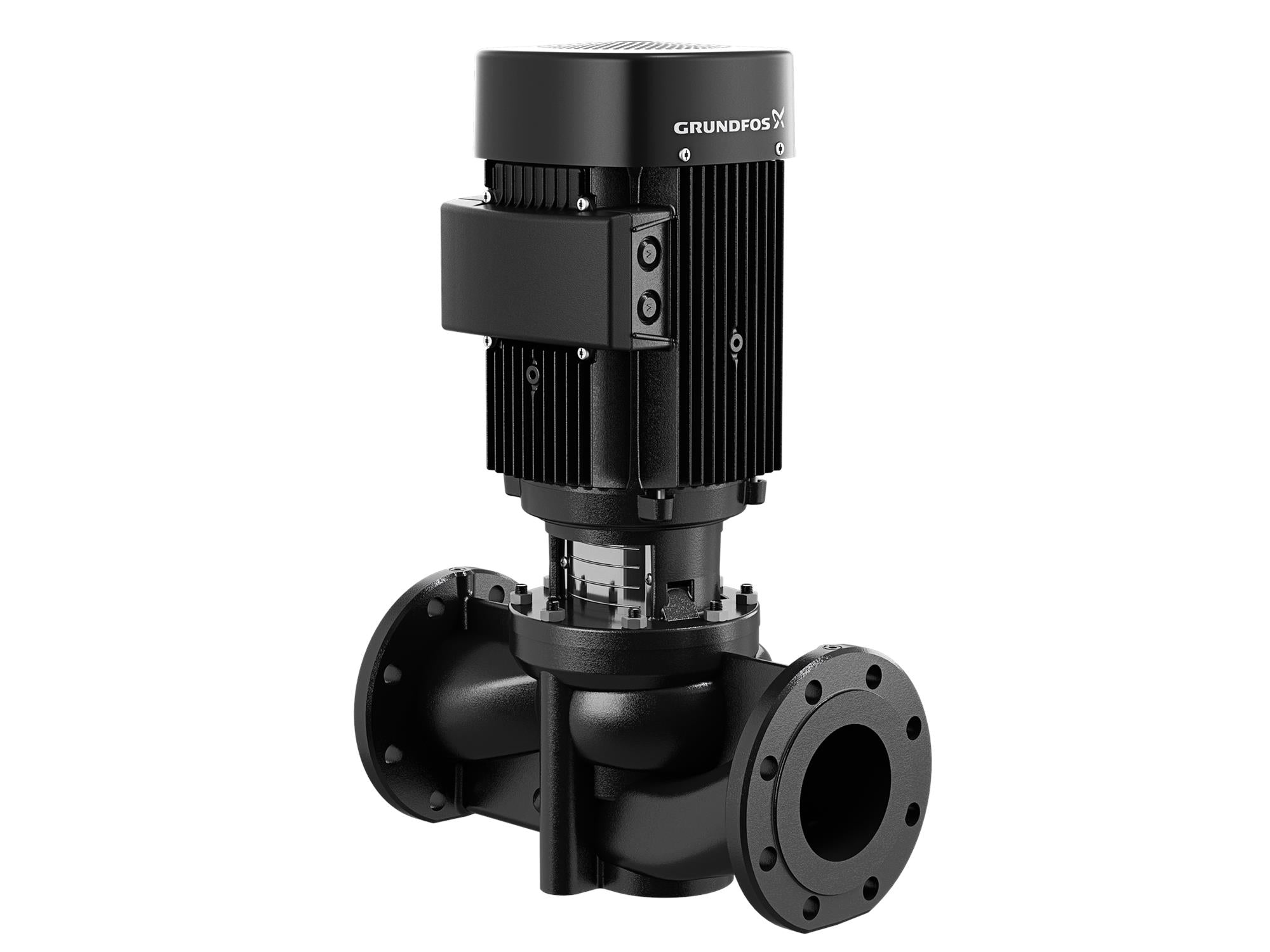

Grundfos 91122112, TP50-160/2 1.5HP CI PEO Inline Pump

SKU: LSI4PGZ7SQ Part Number: 91122112

Price:
Sale price$3,429.95 Regular price$5,119.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This inline single-stage pump is a TP50-160/2 model with a 1.5HP motor, designed for heating, cooling, and district energy applications. It has a close-coupled design with a mechanical shaft seal and operates at fixed speeds.

Specifications

Manufacturer Grundfos
Part Number 91122112
Rated flow 92.5 US gpm
Rated head 39.37 ft
Actual impeller diameter 3.43 in
Primary shaft seal BUBE
Curve tolerance ISO 9906:1999 Annex A
Pump housing Cast iron, EN-JL1040, ASTM 25 B
Impeller Stainless steel, DIN W.-Nr. 1.4301, AISI 304
Maximum operating pressure 145.04 psi
Flange standard USA
Pipe connection 2"
Pumped liquid Water
Liquid temperature range 5 .. 284 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
DOE Pump Energy Index CL 0.91
Gross weight 57 lb
Country of origin US
Custom tariff no. 8413.70.2025

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
