Description

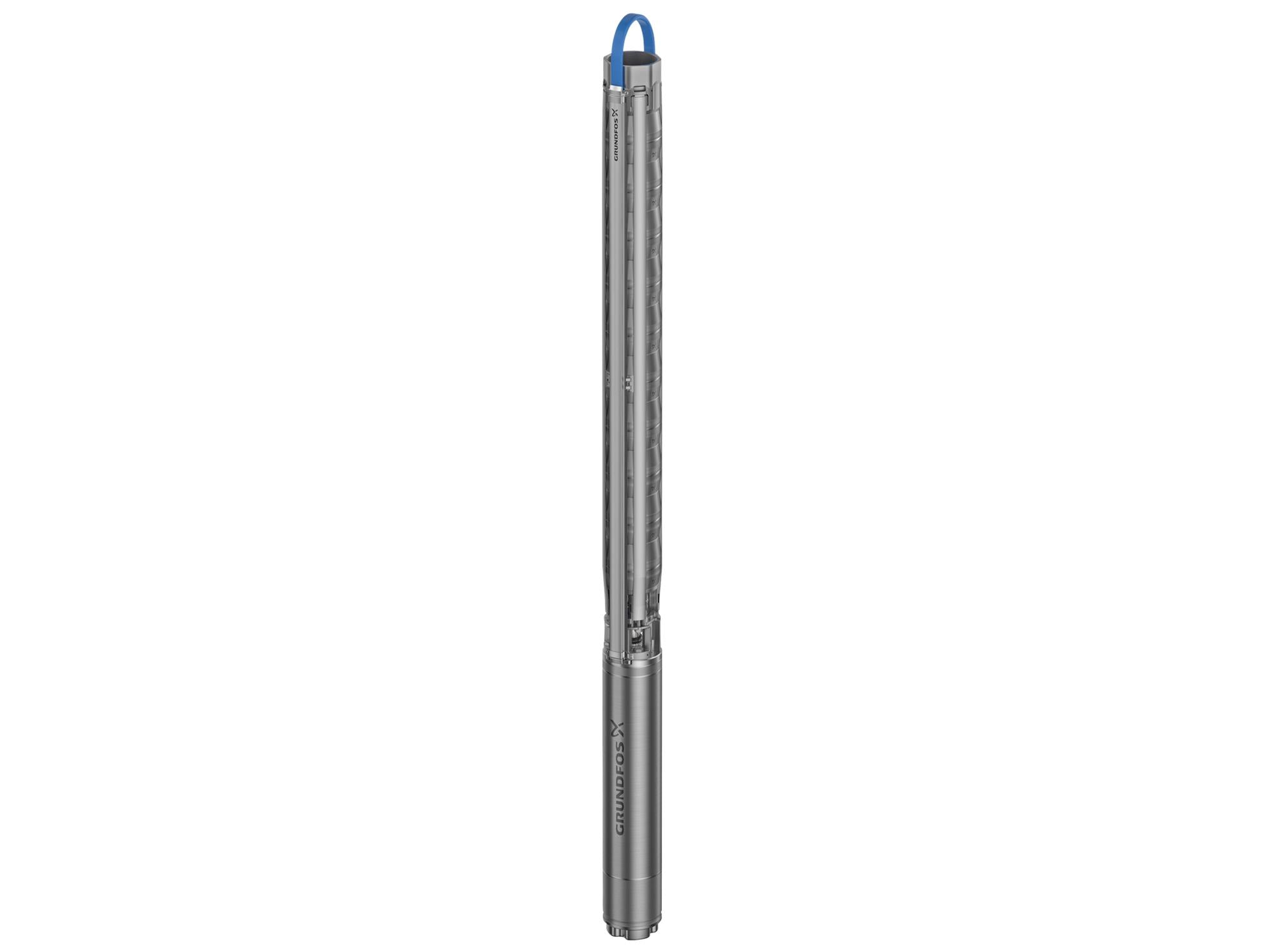

This submersible groundwater pump is part of a range designed for frequency-regulated operation in groundwater applications. It is constructed entirely from stainless steel and available in three material grades, with sizes including 6 inches. The 6-inch motor operates at 3600 rpm and requires a frequency drive, offering high energy efficiency through its permanent magnet design. Suitable for water treatment fertigation, chemigation, dosing, controls and digital groundwater management, as well as drip, micro spray, and soaker hose irrigation systems.
Specifications
Manufacturer | Grundfos |
---|---|
Part Number | 92673216 |
Pump speed on which pump data are based | 3600 rpm |
Rated flow | 317 US gpm |
Rated head | 42.65 ft |
Stages | 1 |
Number of reduced-diameter impellers | NONE |
Shaft seal for motor | SiC/SiC NBR |
Approvals | CULDWUS,CCSAUS |
Approvals for drinking water | PROP65 |
Curve tolerance | ISO9906:2012 3B |
Motor version | T60 |
Return valve | YES |
Pump | Stainless steel, EN 1.4301, AISI 304 |
Impeller | Stainless steel, EN 1.4301, AISI 304 |
Motor | Stainless steel, EN 1.4301, AISI 304 |
Maximum operating pressure | 870.23 psi |
Maximum outlet pressure | 29.01 psi |
Type of connection | NPT(F) |
Size of connection | 4 inch |
Motor diameter | 6 inch |
Pumped liquid | Water |
Liquid temperature range | 5 .. 140 °F |
Selected liquid temperature | 68 °F |
Density | 62.29 lb/ft³ |
Motor type | PM |
Motor flange design | Grundfos |
Rated power - P2 | 10 HP |
Power (P2) required by pump | 10.1 HP |
Main frequency | 60 Hz |
Rated voltage | 3 x 410-480 V |
Motor frequency | 120 Hz |
Service factor | 1.15 |
Rated current | 14.4 A |
Rated speed | 1650-3600 rpm |
Motor efficiency at full load | 89.9 % |
Number of poles | 4 |
Start. method | Direct-on-line (DOL) |
Enclosure class (IEC 34-5) | IP68 |
Insulation class (IEC 85) | F |
Built-in motor protection | NONE |
Thermal protec | external |
Built-in temperature transmitter | No |
Number of cables | 1 |
Windings | Enamelled |
Rpm related to frequency | 3600 rpm at 120 Hz |
Frequency converter | VFD IPM type required |
DOE Pump Energy Index CL | 0.92 |
Net weight | 103 lb |
Gross weight | 130 lb |
Shipping volume | 2.61 ft³ |
Sales region | Namreg |
Country of origin | US |
Custom tariff no. | 8413.70.21 |
Recommended CUE (IP20) | 99619016 |
Recommended Sine wave filter (IP20) | 92617581 |
