Please note this item is made to order and additional lead-times may apply.

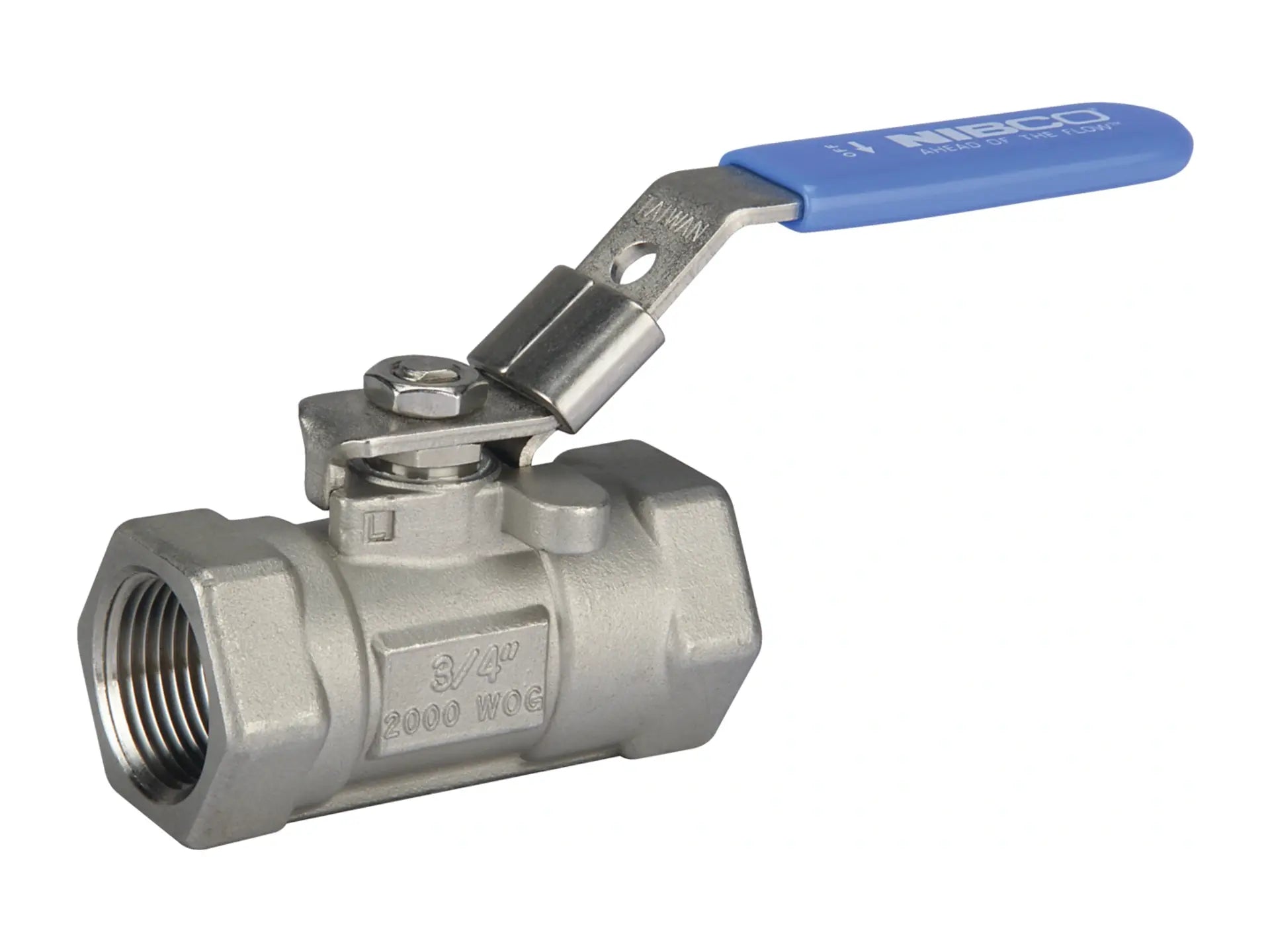

This NIBCO stainless steel ball valve provides bubble-tight shutoff at 2000 psi. The one-piece valve meets Fire Safe requirements. It is recommended for petrochemical, utility service applications. This valve features a standard locking lever handle for security purposes, threaded ends for easy installation and has a cast mounting pad for actuation. It may be used for isolation and throttling (half open to full open only). Also available with oval or oval locking handle. This NIBCO ball valve provides ease of operation with quarter-turn (90°) open to close. The reinforced PTFE seat ring, Graphoil stem packing and stainless steel ball/stem exhibits high chemical resistance properties and is recommended for process piping. The one-piece design eliminates leak paths. Please refer to NIBCO technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO ball valves are backed by the exclusive NIBCO INC. 5-year 125% limited warranty.
Features
- Valve pressure rating 2000 psi 138 bar non-shock cold working pressure
- Maximum temperature rating 400°F
- Reduced port
- Blowout-proof stem
- Stainless steel ball and stem
- Locking lever handle
- Threaded end connections
- Conforms to MSS SP-110
- API-607 Fifth Edition Fire Safe
