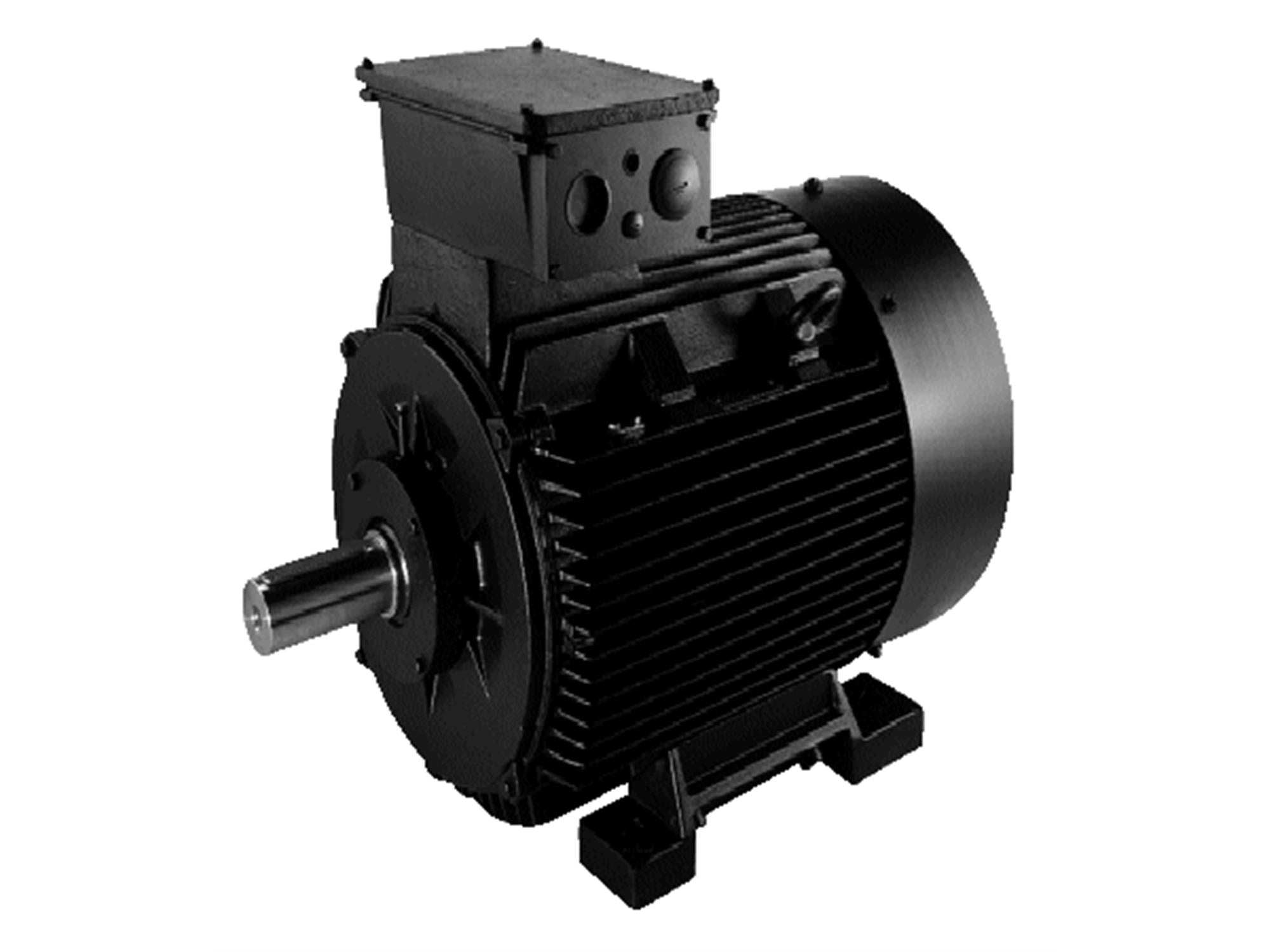

Grundfos 84Z00H22, 30HP Motor 230/460V ODP 3500RPM Standard

Roll over image to zoom in Click on image to zoom

Grundfos 84Z00H22, 30HP Motor 230/460V ODP 3500RPM Standard

Name: Grundfos 84Z00H22, 30HP Motor 230/460V ODP 3500RPM Standard
Brand: Grundfos
SKU: LSI5B3K0ZO
Price: 5668.95 USD
Availability: OutOfStock

SKU: LSI5B3K0ZO Part Number: 84Z00H22

Price:

$5,668.95 $6,164.00

Save 8% Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

This motor is a 30HP unit with an open drip-proof design, operating at 230/460V and 3500RPM. It is categorized under standard motors.

Manufacturer	Grundfos
Part Number	84Z00H22
Shaft diameter	1.62 in
Length of shaft end	3 in
Approvals for motor	cURus/cCSAus
Energy approvals for motor	CC,
Cooling	ODP
Maximum ambient temperature	104 °F
Flange size for motor	284TS
Motor type	BALDOR
Rated power - P2	30 HP
Main frequency	60 Hz
Rated voltage	3 x 230/460 V
Service factor	1.15
Rated current	70/35 A
Rated speed	3530 rpm
IE efficiency	IE3 93,6%
IE Efficiency class	IE3 / NEMA Premium
Motor efficiency at full load	93.6 %
Number of poles	2
Enclosure class (IEC 34-5)	ODP
Insulation class (IEC 85)	F
Built-in motor protection	NONE
Tropic protec	No
Bearing insulation type N-end	Steel Bearing
Net weight	324 lb
Color/Type	BLACK
Custom tariff no.	8501.52.8040

Baldor motors (I & O instructions)

WEG motors, GB/ES version (I & O instructions)

WEG motors, Additional languages (I & O instructions)

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
