Description

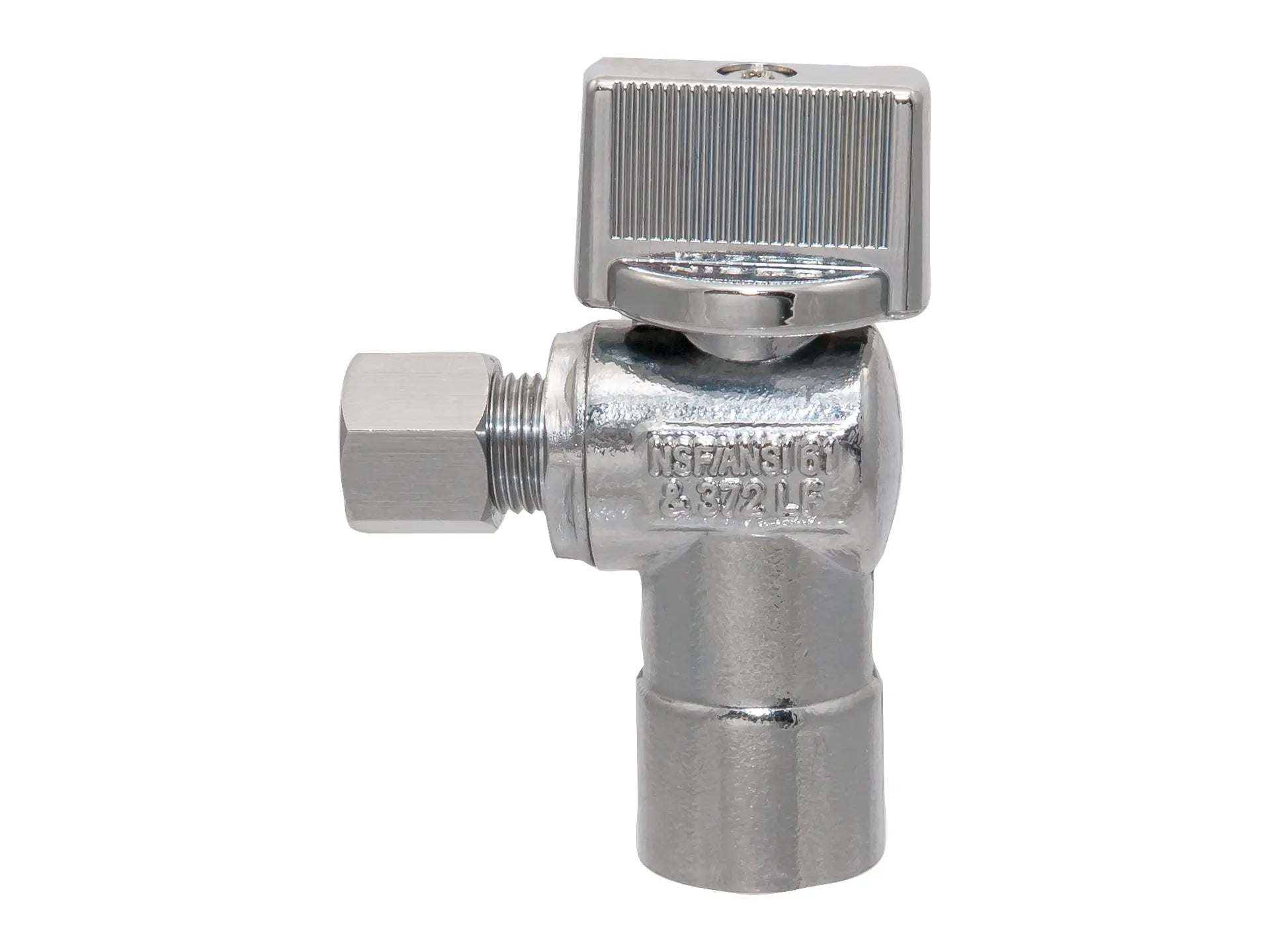

NIBCO PRO-Stop quarter-turn supply stop valve is made of chrome-plated brass with a PTFE seat. The specially designed seat and shell are 100% tested to ensure no leakage for the life of the valve. The multi-purpose shutoff valve is ideal for applications in domestic water systems. NIBCO PRO-Stop supply stop valve ensures trouble-free operation and ease of access. It has an oversized chrome-plated handle with a ribbed surface for ease of operation and gripping. The quarter-turn valve features a blowout-proof stem and EPDM o-ring seal. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. PRO-Stop valves are backed by a NIBCO 2-year limited warranty. Choose NIBCO flow control products for the most specified, versatile and economical option in commercial and residential applications.
Features
- Solder x compression connections
- Valve pressure rating 125 psi cold working pressure
- Easy to install
- Simple on/off quarter-turn operation
- Blowout-proof stem
- Angle pattern
- Lead-free
- IAPMO Listed to cUPC and NSF/ANSI 61-9 & 372
Specifications
| Manufacturer | NIBCO |
|---|---|
| Part Number | ND612L6 |
| Model | 7125-LF |
| Application(s) | Lead-Free |
| System Use | Lead-Free, Residential Plumbing |
| Basic Material | Lead-Free Bronze |
| Nominal Pipe Size | 1/2" x 1/4" |
| Type of Valve | Pro Stop Supply Stop |
| Type of Stop Valve | Angle |
| Valve End Connection Type | Solder Cup x Compression |
| End Connection | Solder |
| Turns Operations | Quarter-Turn |
| Old Material Number | 7125LF1214 |
| UPC | 039923353887 |
| Length | 2.46" |
| Width | 1.72" |
| Height | 0.91" |
| Potable Water Code | LL Compliant NSF/ANSI 372 |
| CA Proposition 65 Warning Statement | WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Notes and Disclaimer | PRO-Stop is a registered trademark of NIBCO INC. |
