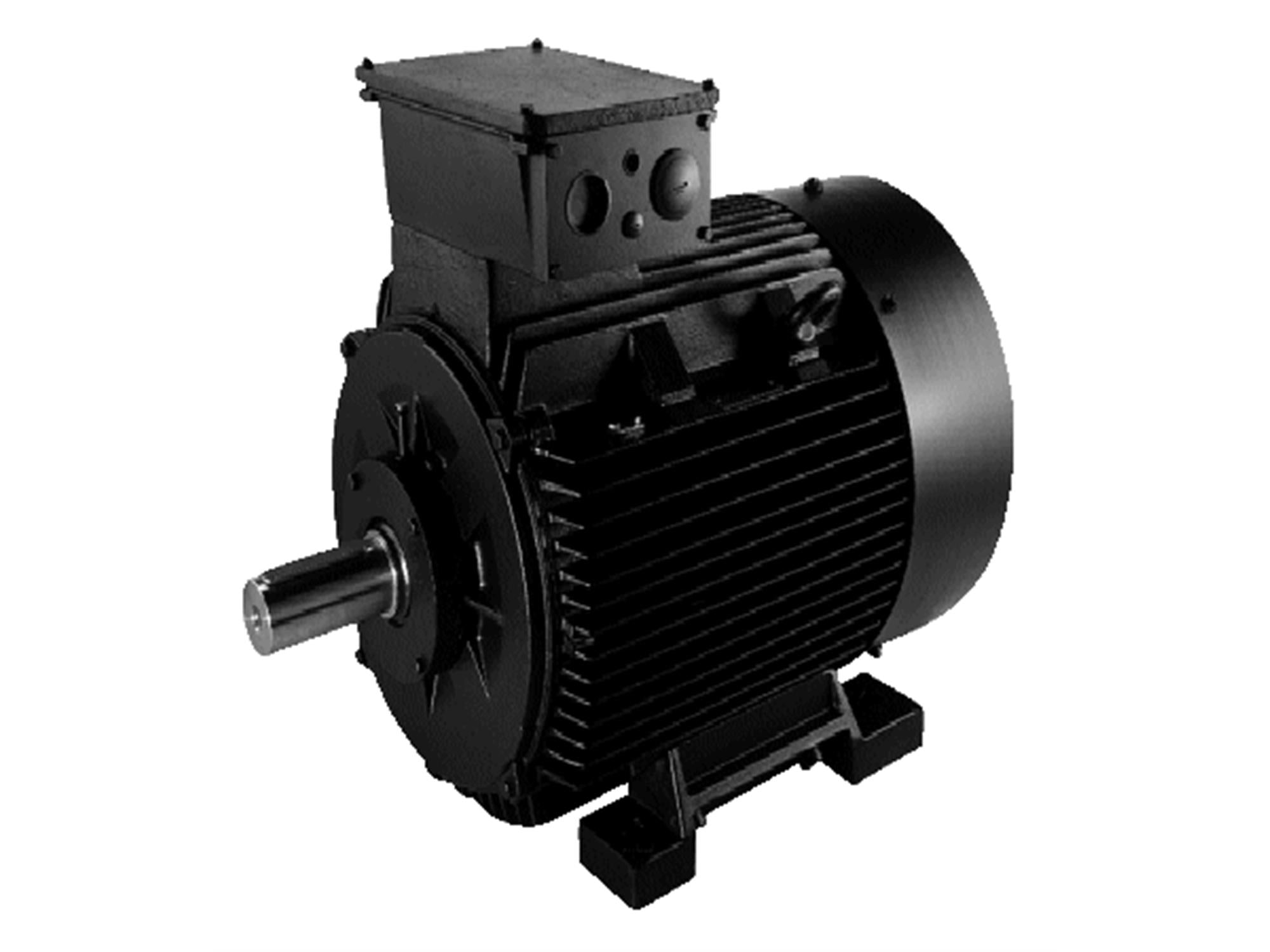

Grundfos 85700012, MTR2 TEF 5HP 1X208-230S 60 STD Motor

Roll over image to zoom in Click on image to zoom

Grundfos 85700012, MTR2 TEF 5HP 1X208-230S 60 STD Motor

Name: Grundfos 85700012, MTR2 TEF 5HP 1X208-230S 60 STD Motor
Brand: Grundfos
SKU: LSI5UH7UAX
Price: 1865.95 USD
Availability: OutOfStock

SKU: LSI5UH7UAX Part Number: 85700012

Price:

$1,865.95 $2,784.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

This motor is identified as the MTR2 TEF 5HP 1X208-230S 60 STD and is categorized under standard motors.

Manufacturer	Grundfos
Part Number	85700012
Shaft diameter	1.13 in
Length of shaft end	2.63 in
Approvals for motor	cURus/cCSAus
Energy approvals for motor	CC,
Cooling	TEFC
Maximum ambient temperature	104 °F
Flange size for motor	213CZ
Motor type	BALDOR
Rated power - P2	5 HP
Main frequency	60 Hz
Rated voltage	1 x 208-230 V
Service factor	1.15
Rated current	24.0-22.0 A
Full load SF current	27.0-25.0 A
Rated speed	3450 rpm
IE efficiency	80.0%
Motor efficiency at full load	80.0 %
Number of poles	2
Enclosure class (IEC 34-5)	TEFC
Insulation class (IEC 85)	F
Built-in motor protection	NONE
Tropic protec	No
Thermal protec	internal
Mounting design per IEC 34-7	NEMA type C
Bearing insulation type N-end	Steel Bearing
Net weight	101 lb
Color/Type	BLACK

Baldor motors (I & O instructions)

WEG motors, GB/ES version (I & O instructions)

WEG motors, Additional languages (I & O instructions)
