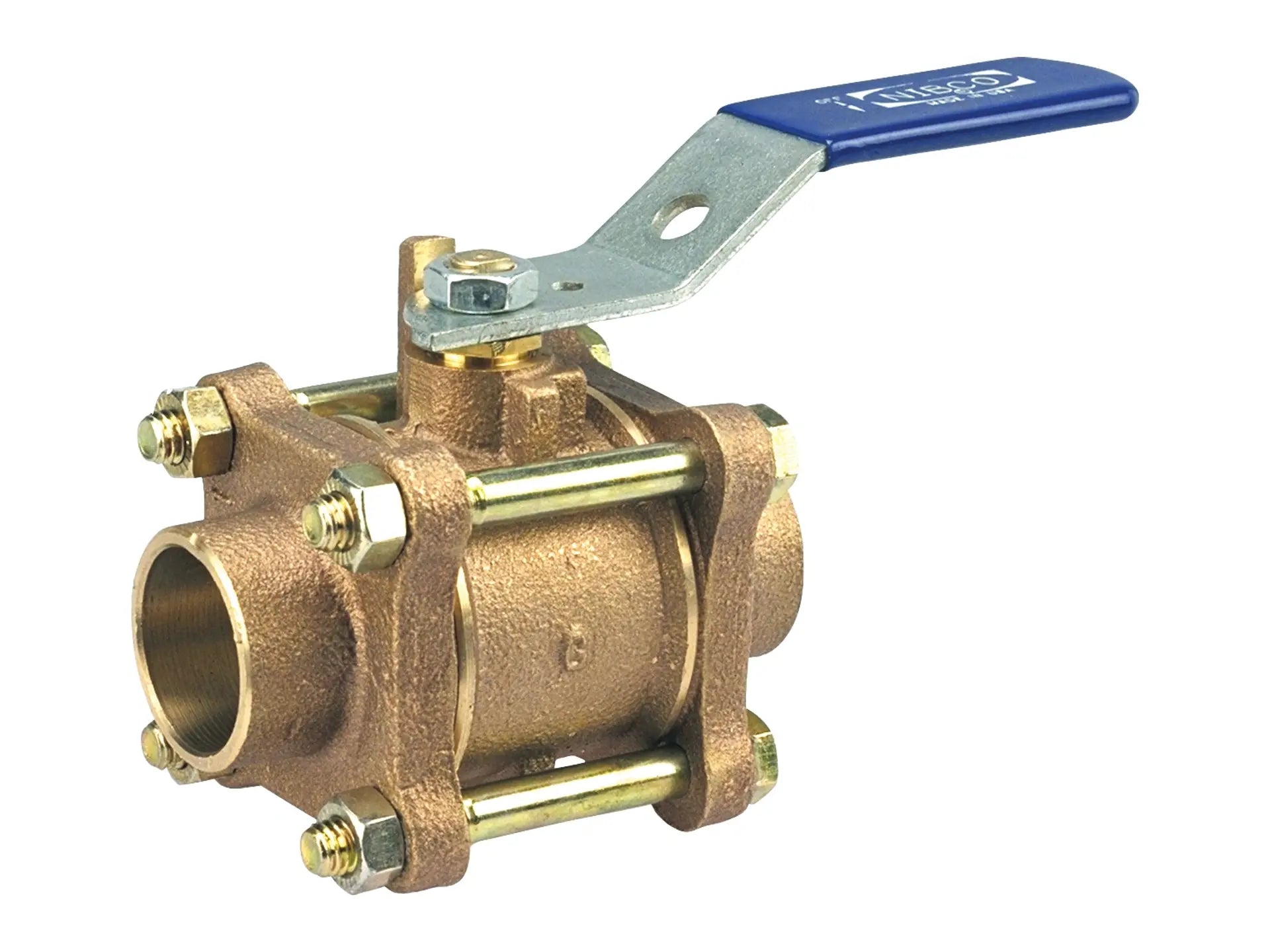

NIBCO S-595-Y 1/2" Bronze Bronze Ball Valve NJ93006

SKU: LSI60W61HV Part Number: NJ93006 Model: S-595-Y

Price:
Sale price$95.95 Regular price$191.10

Save 50% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

NIBCO bronze ball valve features solder ends for easy installation. The three-piece valve is ideal for hot/cold water, numerous gas applications, compressed air, vacuum service, condenser and chilled water. It may be used for isolation and throttling (half open to full open only). The three-piece valve is repairable in-line. NIBCO bronze ball valve provides ease of operation with quarter-turn (90°) open to close, and bubble-tight shutoff at 600 psi. The PTFE seat ring and brass hard chrome plated ball exhibits high chemical resistance properties and is recommended for many high pressure applications. Options include NIB-SEAL insulated handle that eliminates condensate. Please refer to NIBCO technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.

Features

  • Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
  • Maximum temperature rating 400°F
  • Full port
  • Chrome plated brass ball, silicon bronze stem
  • Blowout-proof stem
  • Standard lever handle or locking lever, optional NIB-SEAL
  • Solder end connections
  • Dezincification resistant
  • Use in U.S. drinking water applications is prohibited after January 3, 2014
  • Conforms to MSS SP-110

Specifications

Manufacturer NIBCO
Part Number NJ93006
Model S-595-Y
Basic Material Bronze
Nominal Pipe Size 1/2"
Type of Valve Ball
Ball Port Style Full Port
Ball Material Brass with Hard Chrome Plate
Ball Stem Material Bronze
Valve End Connection Type Female Solder Cup
End Connection Solder
Ball Operator CS Standard Lever Handle
Turns Operations Quarter-Turn
Stem Material Silicon Bronze
Seat Seal Material PTFE
Valve Trim Package Bronze Trim
Valve Pressure Rating (CWP) 600 psi/41.4 Bar CWP
Valve Pressure Rating (SWP) 150 psi/10.3 Bar SWP
Old Material Number S595Y12
UPC 039923686459
Length 6"
Width 2.95"
Height 1.83"
Potable Water Code Not LL Comp not intend potable
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Notes and Disclaimer NIB-SEAL is a registered trademark of NIBCO INC.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
