Description

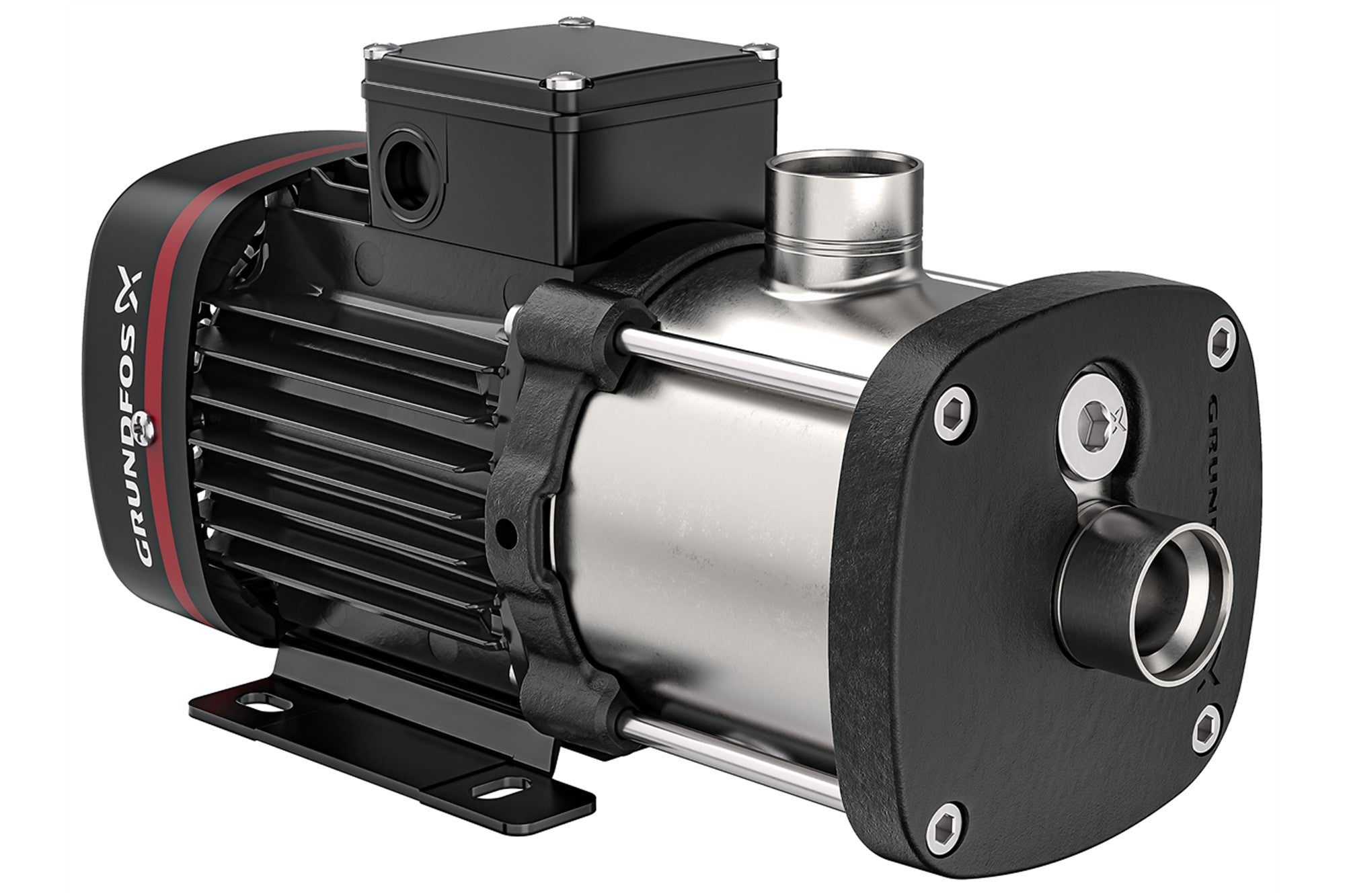

This horizontal end-suction pump is a compact and quiet solution with an integrated frequency converter and intelligent features. Its modular design allows for customized solutions, making it suitable for applications such as water treatment fertigation, chemigation, dosing, controls and digital groundwater management, as well as drip, micro spray, and soaker hose irrigation.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 99087481 |
| Pump speed on which pump data are based | 3480 rpm |
| Rated flow | 52.8 US gpm |
| Rated head | 52.89 ft |
| Impellers | 1 |
| Code for shaft seal | AQQE |
| Approvals | CE,CULUS,EAC,CURUS,UKCA |
| Approvals for drinking water | WRAS,ACS,NSF61,UBA |
| Curve tolerance | ISO9906:2012 3B |
| Pump version | A |
| Pump housing | Stainless steel, EN 1.4301, AISI 304 |
| Impeller | Stainless steel, EN 1.4301, AISI 304 |
| Material code | I |
| Code for rubber | E |
| Range of ambient temperature | -4 .. 131 °F |
| Maximum operating pressure | 232.06 psi |
| Max pressure at stated temperature | 232 psi / 194 °F, 145 psi / 250 °F |
| Type of connection | NPT(F) |
| Size of suction port | 1 1/2 inch |
| Size of outlet port | 1 1/2 inch |
| Outlet position | 12 |
| Connect code | S |
| Pumped liquid | Water |
| Liquid temperature range | -4 .. 248 °F |
| Selected liquid temperature | 68 °F |
| Density | 62.29 lb/ft³ |
| Motor standard | NEMA |
| Frame size | 80CB |
| IE efficiency class | IE3 / NEMA Premium |
| Rated power - P2 | 1.48 HP |
| Main frequency | 60 Hz |
| Suitable for 50/60 Hz (Yes/No) | N |
| Rated voltage | 3 x 208-230YY/440-480Y V |
| Service factor | 1.00 |
| Rated current | 5,2-5,1/2,55-2,65 A |
| Rated speed | 3430-3470 rpm |
| Enclosure class (IEC 34-5) | IP55 |
| Insulation class (IEC 85) | F |
| Built-in motor protection | NONE |
| Cable included (Yes/No) | N |
| Frequency converter | None |
| Terminal box position | 12 |
| Minimum efficiency index, MEI ≥ | 0.52 |
| Net weight | 41 lb |
| Gross weight | 46.5 lb |
| Country of origin | MX |
| Custom tariff no. | 8413.70.2040 |
