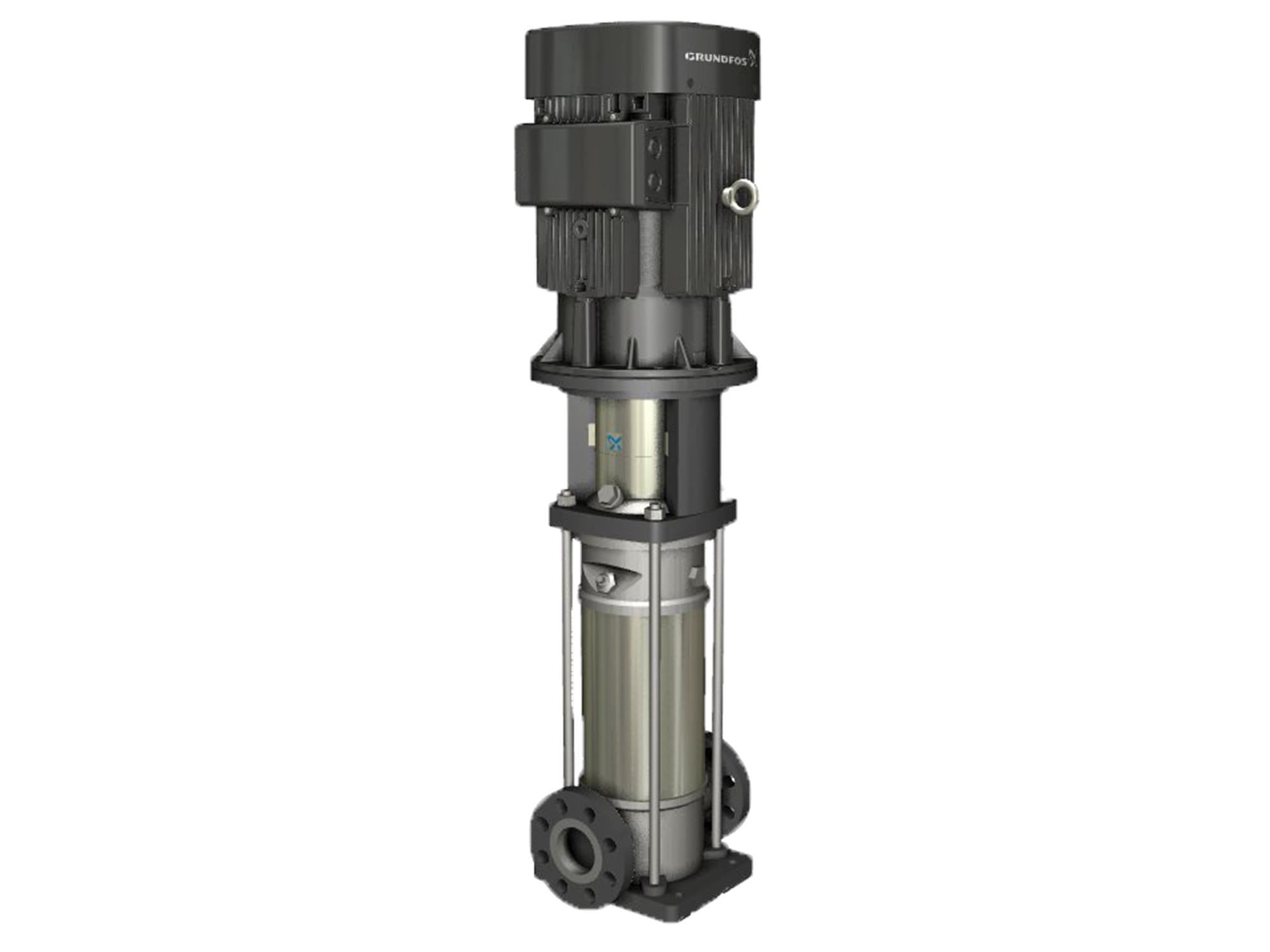

Grundfos 98522373, CRN5-22 A-FGJ-A-E-PQQE Vertical Multistage Pump

SKU: LSI6FC11OG Part Number: 98522373

Price:
Sale price$7,193.95 Regular price$10,737.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This vertical multistage centrifugal pump has suction and discharge ports on the same level.

Specifications

Manufacturer Grundfos
Part Number 98522373
Rated pump speed 3467 rpm
Rated flow 30.4 US gpm
Rated head 532.8 ft
Maximum head 716.2 ft
Stages 22
Impellers 22
Number of reduced-diameter impellers 0
Low NPSH N
Pump orientation Vertical
Shaft seal arrangement Tandem
Code for shaft seal PQQE
Approvals CE,CURUS
Curve tolerance ISO9906:2012 3B
Pump version A
Base Stainless steel, EN 1.4408, AISI 316
Impeller Stainless steel, EN 1.4401, AISI 316
Material code A
Code for rubber E
Maximum ambient temperature 140 °F
Maximum operating pressure 362.59 psi
Max pressure at stated temperature 363 psi / 250 °F, 363 psi / -4 °F
Type of connection DIN / ANSI / JIS
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Pressure rating for connection PN 25
Flange rating inlet 300 lb
Flange size for motor 213TC
Connect code FGJ
Pumped liquid Water
Liquid temperature range -4 .. 248 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard NEMA
Motor type 132DA
Rated power - P2 7.5 HP
Power (P2) required by pump 7.5 HP
Main frequency 60 Hz
Rated voltage 3 x 208-230YY/460Y V
Service factor 1.15
Rated current 19,5-18,1/9,09 A
Starting current 1020-1480 %
Cos phi - power factor 0.89-0.86
Rated speed 3490-3520 rpm
IE Efficiency class NEMA Premium / IE3 60Hz
Motor efficiency at full load 89.5 %
Motor efficiency at 3/4 load 89.6-89.1 %
Motor efficiency at 1/2 load 88.1-86.7 %
Number of poles 2
Enclosure class (IEC 34-5) 55 Dust/Jetting
Insulation class (IEC 85) F
Built-in motor protection PTC
Frequency converter None
Pressure sensor N
Net weight 173 lb
Gross weight 285 lb
Shipping volume 12.9 ft³

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.

Estimate shipping

Repair Parts

(4 items)

Grundfos 96455086, Shaft Seal Kit HQQEGG KB012S1
Grundfos 96455090, Gasket Kit EPDM CR/I/N 1S/1/3/5
Save 6%
Grundfos 96455099, Wear Part Kit for CR/I/N5 -22 Stages (SIC)
Save 6%
Grundfos 96533362, Tandem Gasket Kit EPDM CR/I/N 1s/1/3/5
