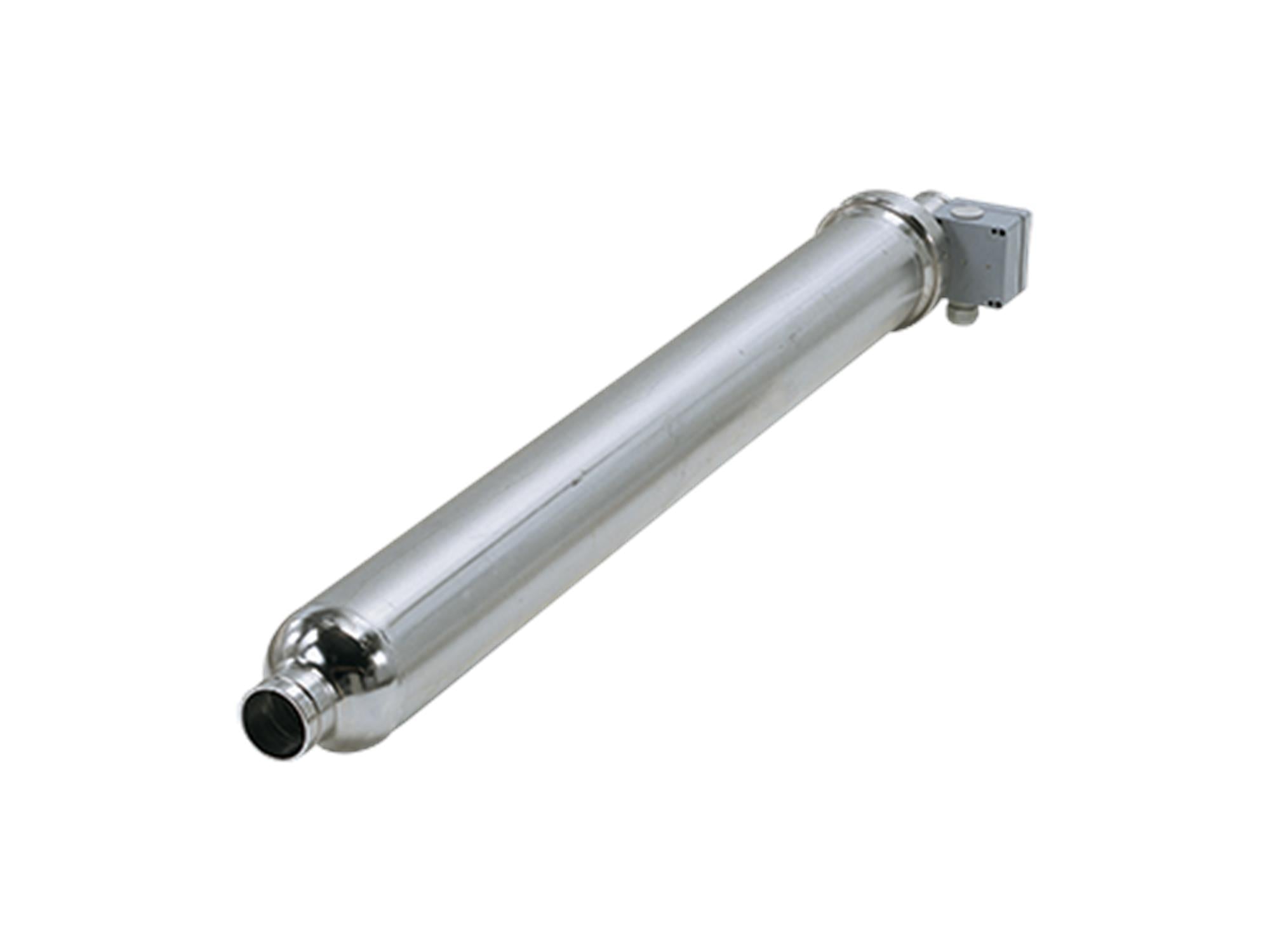

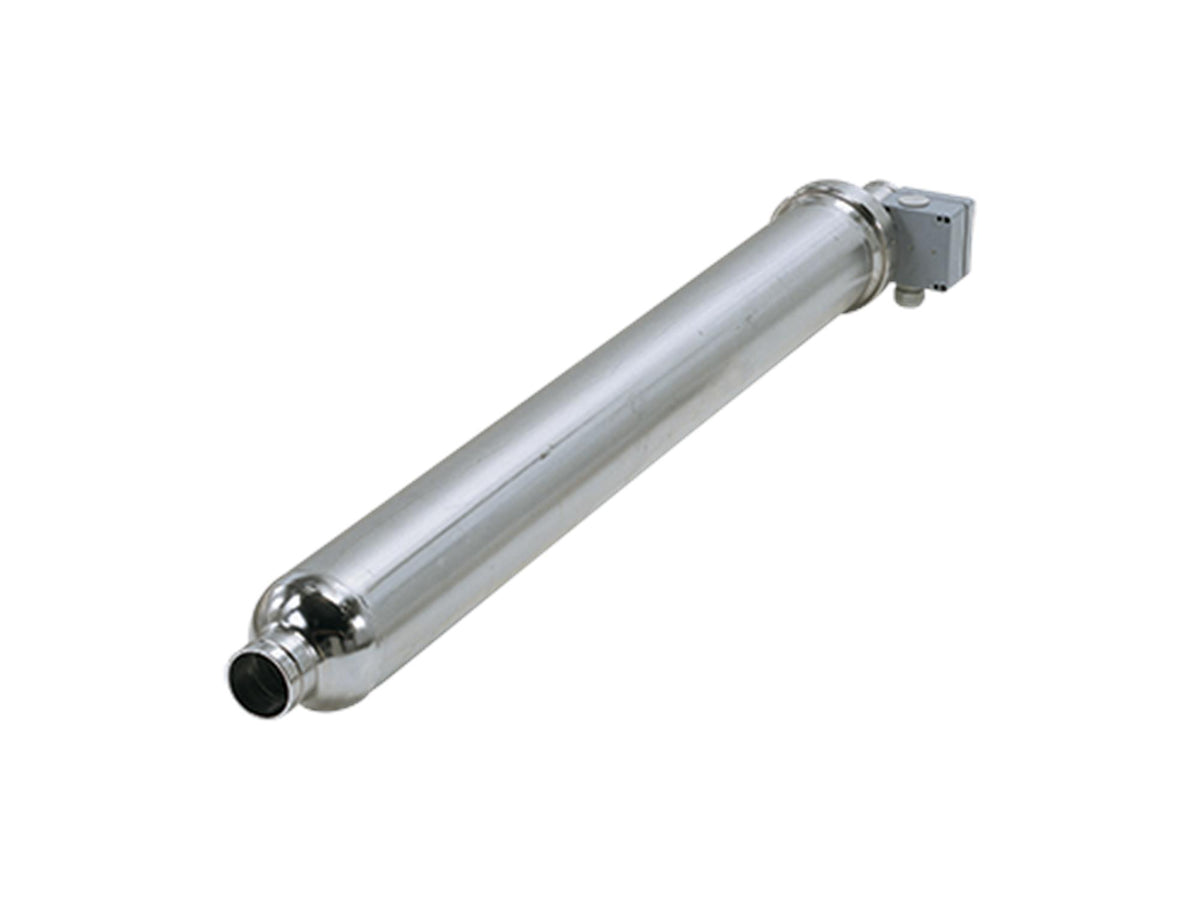

Grundfos 96293277, BM hp 17-4-R Booster Module, 5.5kW, 3x440-480V, 60 Hz

Roll over image to zoom in Click on image to zoom

Grundfos 96293277, BM hp 17-4-R Booster Module, 5.5kW, 3x440-480V, 60 Hz

Name: Grundfos 96293277, BM hp 17-4-R Booster Module, 5.5kW, 3x440-480V, 60 Hz
Brand: Grundfos
SKU: LSI6JWDUHC
Price: 77109.95 USD
Availability: OutOfStock

SKU: LSI6JWDUHC Part Number: 96293277

Price:

$77,109.95

Save -43% Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

This high pressure booster module is used for boosting and liquid circulation in systems under a high static pressure.

Manufacturer	Grundfos
Part Number	96293277
Rated flow	88.1 US gpm
Rated head	150.9 ft
Stages	4
Curve tolerance	ISO9906:2012 3B
Pump	Stainless steel, DIN W.-Nr. 1.4539, AISI 904L
Impeller	Stainless steel, EN 1.4539, AISI 904L
Motor	Stainless steel, DIN W.-Nr. 1.4539, AISI 904L
Code for rubber	NBR
Sleeve	Stainless steel, SAF 2205, EN 1.4462
Maximum operating pressure	1199.46 psi
Maximum permissible inlet pressure	1189.31 psi
Maximum outlet pressure	1189.31 psi
Pipe connection standard	PJE
Pipe connection	89 mm
Pumped liquid	Water
Maximum liquid temperature	104 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Rated power - P2	7.5 HP
Main frequency	60 Hz
Rated voltage	3 x 440-480 V
Service factor	1.15
Rated current	13.2 A
Rated speed	3450-3460-3480 rpm
Start. method	DOL
Enclosure class (IEC 34-5)	IP66
Minimum efficiency index, MEI ≥	0.70
Net weight	74.3 lb
Gross weight	167 lb

BM, BMhp (Data booklet)
