Description

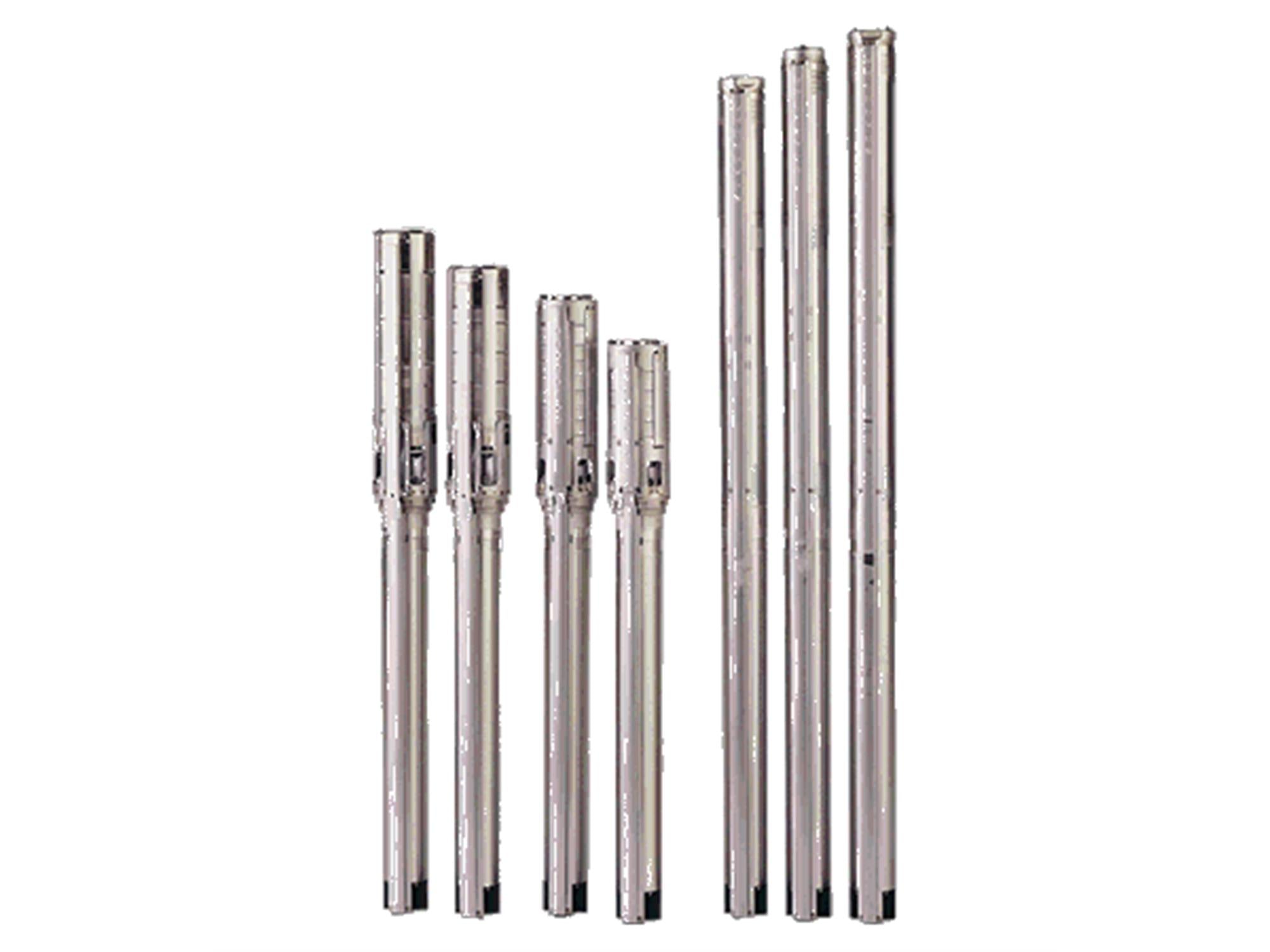

This submersible pump is a 3" SQFlex centrifugal model designed for medium heads and flow rates. It operates on both AC and DC voltage, with an integrated inverter suitable for solar, wind, and AC power sources. The system supports renewable energy use with features like maximum power point tracking (MPPT), dry-running protection, and overload safeguards. This pump is adaptable to various installation needs in applications such as water treatment fertigation, chemigation, dosing, digital groundwater management, and irrigation systems.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 95027333 |
| Stages | 3 |
| Approvals | CE,EAC,CN RoHS Exempt |
| Pump Number | 95027410 |
| Return valve | Y |
| Zinc Anodes | No |
| Pump | Stainless steel, DIN W.-Nr. 1.4301, AISI 304 |
| Impeller | EN 1.4301 |
| Motor | Stainless steel, DIN W.-Nr. 1.4301, AISI 304 |
| Rotor | Stainless steel, DIN W.-Nr. 1.4301, AISI 304 |
| Stator | Stainless steel / EPDM, DIN W.-Nr. 1.4301, AISI 304 |
| Maximum ambient pressure | 217.56 psi |
| Maximum operating pressure | 217.56 psi |
| Type of connection | NPT(M) |
| Size of connection | 1 inch |
| Minimum borehole diameter | 2.99 in |
| Pumped liquid | Water |
| Liquid temperature range | 32 .. 104 °F |
| Selected liquid temperature | 68 °F |
| Density | 62.29 lb/ft³ |
| Motor type | MSF3 |
| Power input - P1 | 1.4 kW |
| Rated power - P2 | 1.34 HP |
| Rated voltage AC | 1 x 90-240 V |
| Rated voltage DC | 30-300 V |
| Rated current | 8.4 A |
| Power factor | 1.0 |
| Rated speed | 3600 rpm |
| Start. method | direct-on-line |
| Enclosure class (IEC 34-5) | IP68 |
| Insulation class (IEC 85) | F |
| Built-in motor protection | Y |
| Thermal protec | internal |
| Length of cable | 6.56 ft |
| Udc | 300 V, 30 V |
| Minimum efficiency index, MEI ≥ | -.-- |
| Net weight | 17.4 lb |
| Gross weight | 21.4 lb |
| Shipping volume | 0.85 ft³ |
| Sales region | North America |
| Country of origin | MX |
| Custom tariff no. | 8413.70.2004 |
