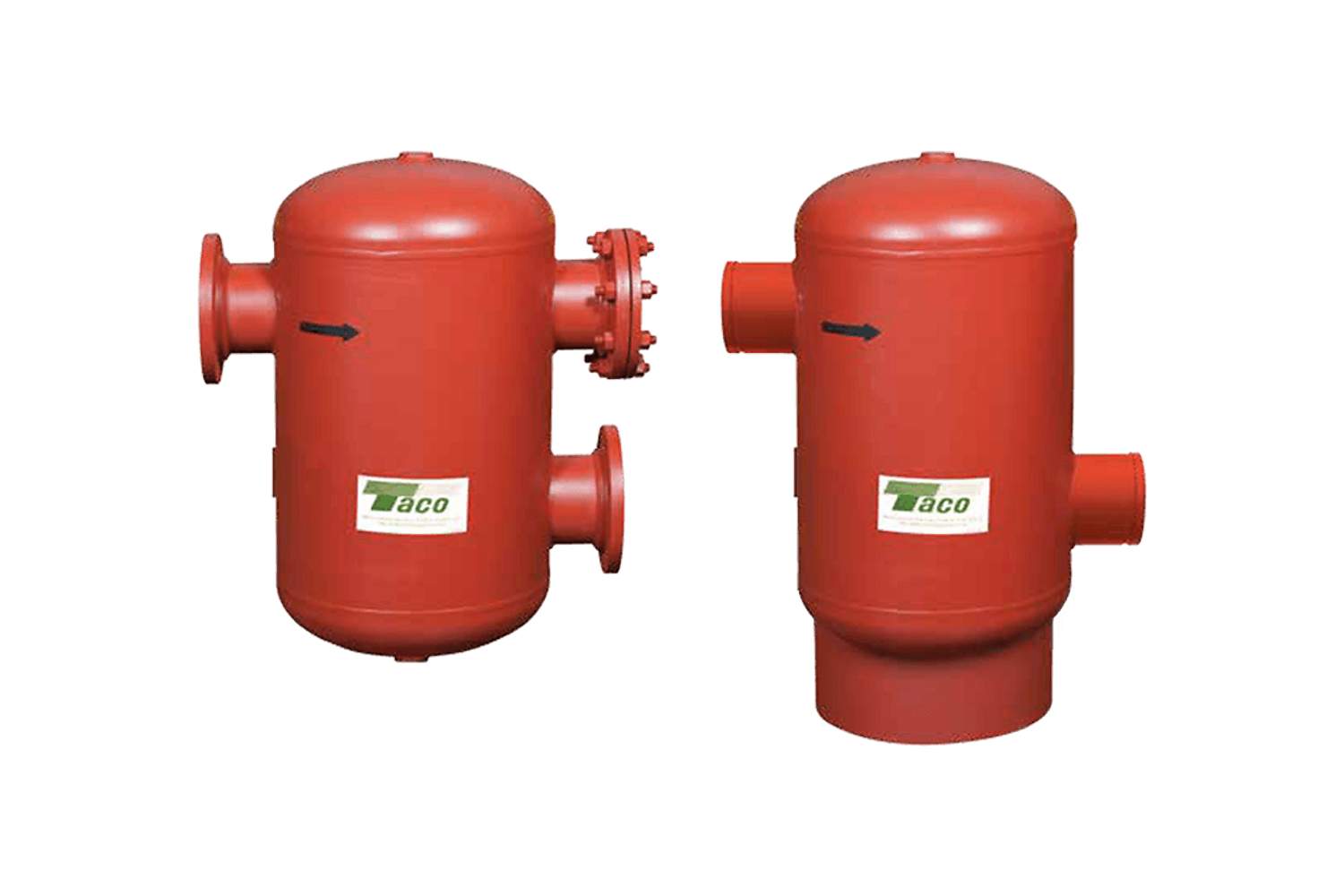

This Taco AC/ACF Series In-Line Air Separator, Model AC04, is a 4" flanged connection unit designed to remove air from hydronic systems. The separator operates by utilizing the difference in specific gravity between air and water to separate the two materials. As water flows through the unit, any entrained air is separated and vented through a float-style vent valve. This ensures that only fluid remains in the system, which can increase efficiency and prevent damage caused by air pockets. With a maximum working pressure of 250 psi, this in-line air separator is suitable for use in a wide range of hydronic applications. Its compact size and easy installation make it an ideal choice for both commercial and residential HVAC systems.
AC/ACF Series Overview
Taco AC/ACF Series In-Line Air Separators deliver quality and performance through their internal baffle design. AC/ACF Series In-Line Air Separators work well in constant and variable flow systems.
Features & Benefits
- Designed, constructed, and tested to ASME Section VIII, Div. 1 requirements
- Available with removable stainless strainer
- Higher maximum pressures available
- All fabrication done in house
- Computerized selections to ensure fast and easy design
- National Board Registration
- CRN registration (optional)
