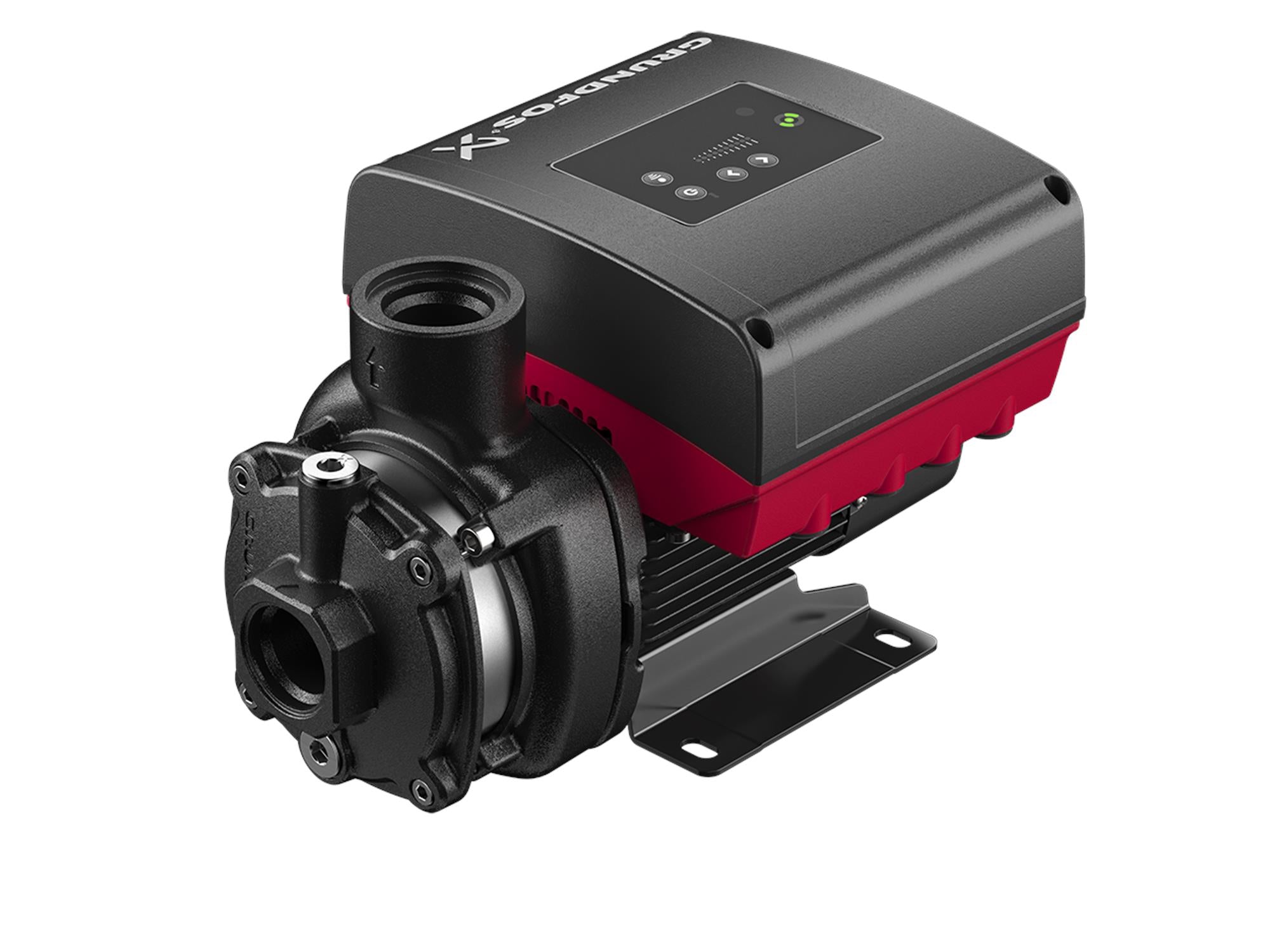

Grundfos 99329881, CME 10-2 A-S-A-E-AQQE T-A-A-N Horizontal End-Suction Pump

SKU: LSI6R8UDT7 Part Number: 99329881

Price:
Sale price$2,933.95 Regular price$4,583.00

Save 36% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This horizontal end-suction pump is a compact and quiet solution with an integrated frequency converter and intelligent features. Its modular design allows for customized configurations, making it suitable for applications such as water treatment fertigation, chemigation, dosing, controls and digital groundwater management, as well as drip, micro spray, and soaker hose irrigation.

Specifications

Manufacturer Grundfos
Part Number 99329881
Rated pump speed 3480 rpm
Rated flow 52.8 US gpm
Rated head 128 ft
Impellers 2
Code for shaft seal AQQE
Approvals CE,EAC,CURUS,UKCA
Approvals for drinking water WRAS,ACS,NSF61
Curve tolerance ISO9906:2012 3B
Pump version A
Pump housing Cast iron, EN-GJL-200, ASTM A48-25A
Impeller Stainless steel, EN 1.4301, AISI 304
Material code A
Code for rubber E
Range of ambient temperature -4 .. 131 °F
Maximum operating pressure 145.04 psi
Max pressure at stated temperature 145 psi / 194 °F, 145 psi / 194 °F
Type of connection NPT(F)
Size of suction port 1 1/2 inch
Size of outlet port 1 1/2 inch
Outlet position 12
Connect code S
Pumped liquid Water
Liquid temperature range -4 .. 194 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard NEMA
Frame size 90D
Rated power - P2 3 HP
Main frequency 50 / 60 Hz
Suitable for 50/60 Hz (Yes/No) Y
Rated voltage 3 x 440-480 V
Service factor 1.15
Rated current 3.8 A
Rated speed 3480 - 4000 rpm
Enclosure class (IEC 34-5) IP55
Insulation class (IEC 85) F
Frequency converter Built-in
Terminal box position 12
Minimum efficiency index, MEI ≥ 0.7
Net weight 63.8 lb
Gross weight 67.7 lb
Country of origin MX
Custom tariff no. 8413.70.2040

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
