Description

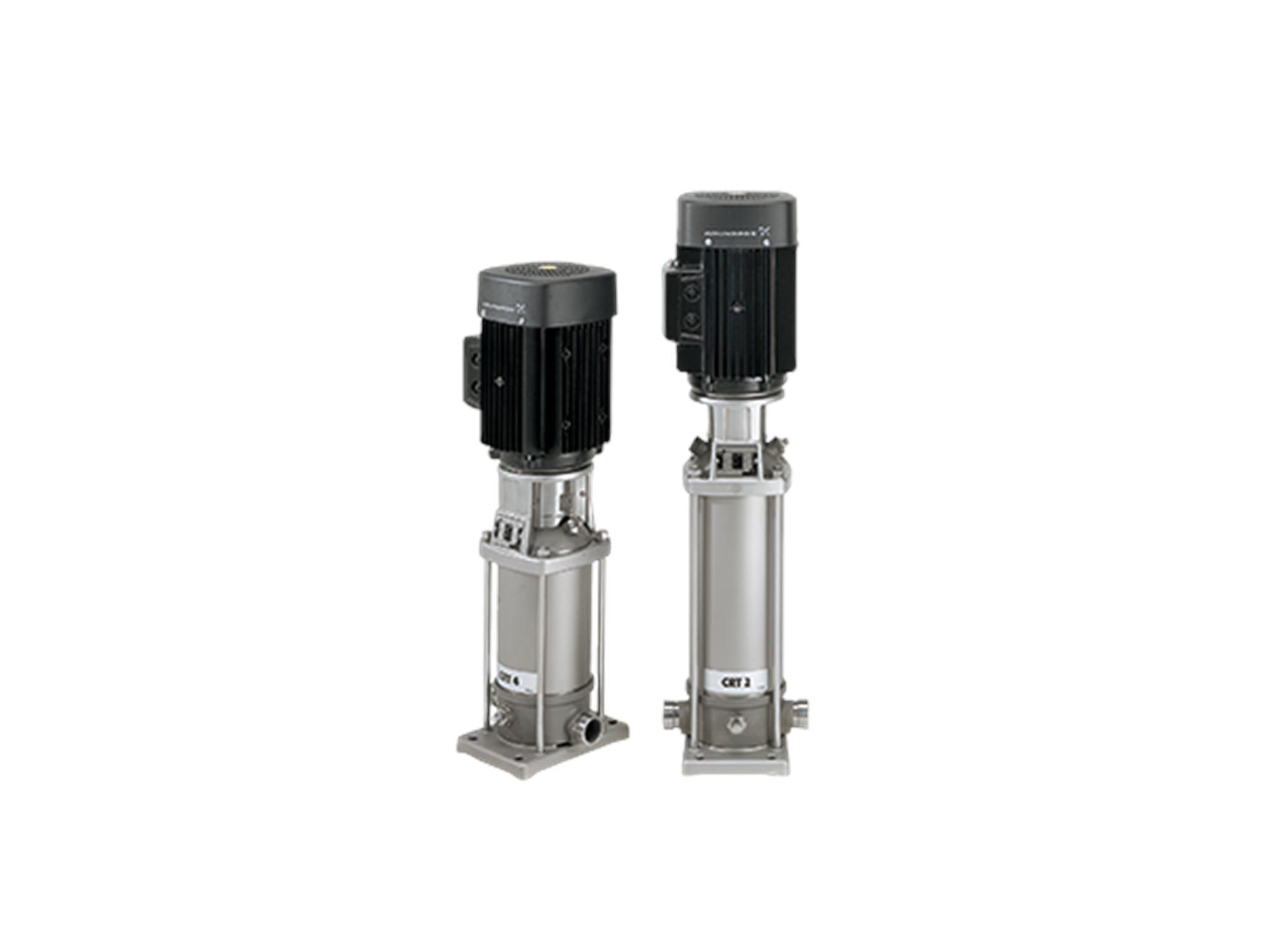

This vertical multistage centrifugal pump has suction and discharge ports on the same level. It is constructed with titanium, providing exceptional resistance to a wide range of acids, alkalis, seawater, and industrial chemicals.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 96100870 |
| Rated pump speed | 3500 rpm |
| Rated flow | 30.8 US gpm |
| Rated head | 123.7 ft |
| Maximum head | 190.3 ft |
| Stages | 4 |
| Impellers | 4 |
| Code for shaft seal | AUUV |
| Approvals | CE,EAC,UKCA,SEPRO |
| Curve tolerance | ISO9906:2012 3B |
| Pump version | A |
| Pump housing | Titanium |
| Impeller | Titanium, ASTM B265 |
| Material code | A |
| Code for rubber | V |
| Bearing | SIC |
| Maximum ambient temperature | 140 °F |
| Maximum operating pressure | 362.59 psi |
| Max pressure at stated temperature | 363 psi / 194 °F, 363 psi / -4 °F |
| Type of connection | PJE |
| Pipe connection | 42,4 mm |
| Flange size for motor | FT115 |
| Connect code | P |
| Pumped liquid | Water |
| Liquid temperature range | -4 .. 194 °F |
| Selected liquid temperature | 68 °F |
| Density | 62.29 lb/ft³ |
| Motor standard | IEC |
| Motor type | 90SD |
| Rated power - P2 | 2 HP |
| Power (P2) required by pump | 2 HP, 2 HP |
| Main frequency | 60 Hz |
| Rated voltage | 3 x 230-277D/400-480Y V |
| Rated current | 5,30-5,00/3,05-2,90 A |
| Starting current | 780-980 % |
| Cos phi - power factor | 0.85-0.75 |
| Rated speed | 3480-3530 rpm |
| IE Efficiency class | NEMA Premium / IE3 60Hz |
| Motor efficiency at full load | 85.5 % |
| Motor efficiency at 3/4 load | 87.5-86.3 % |
| Motor efficiency at 1/2 load | 87.1-83.7 % |
| Number of poles | 2 |
| Enclosure class (IEC 34-5) | 55 Dust/Jetting |
| Insulation class (IEC 85) | F |
| Built-in motor protection | NONE |
| Frequency converter | None |
| Minimum efficiency index, MEI ≥ | 0.7 |
| Net weight | 54.2 lb |
| Gross weight | 65.3 lb |
