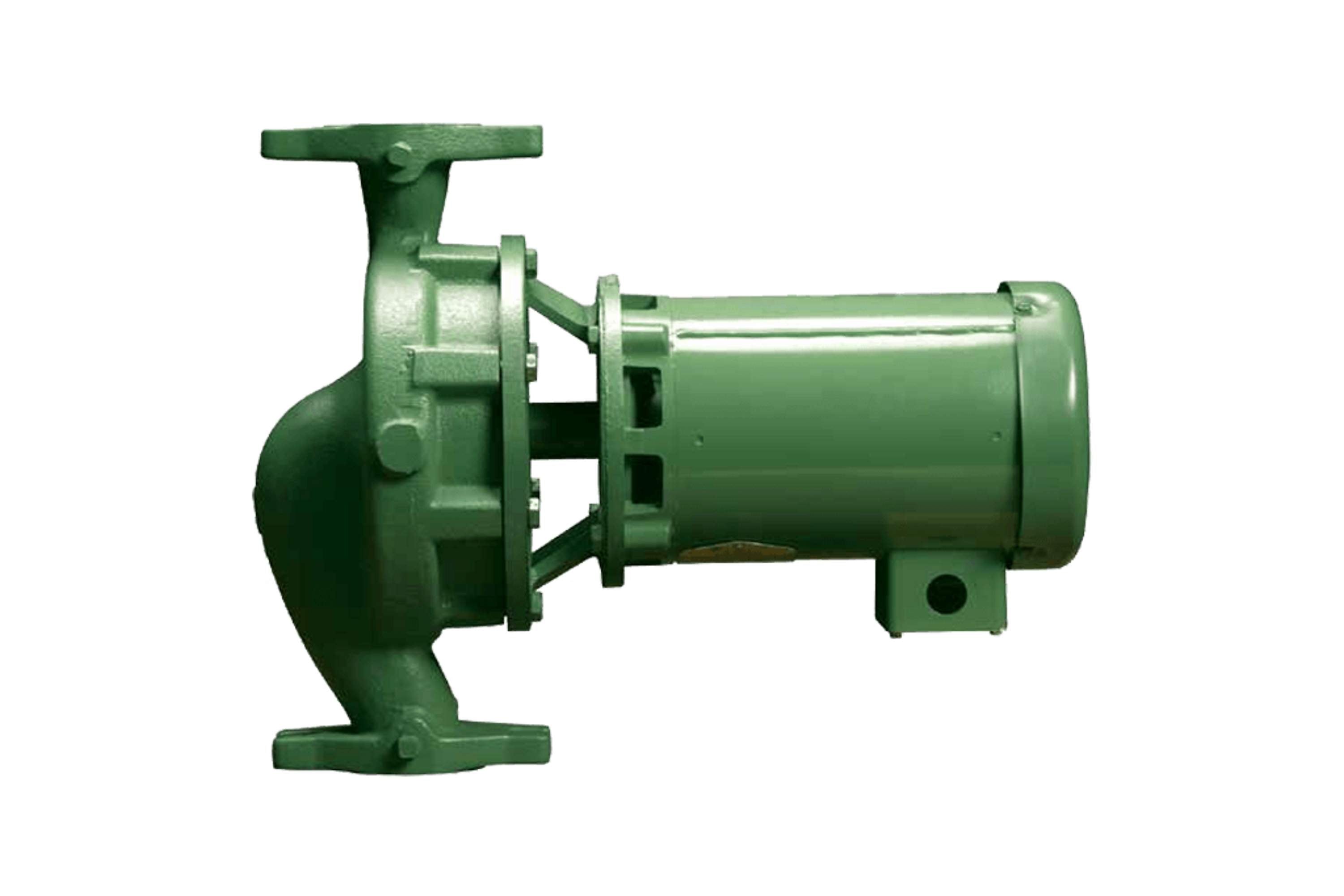

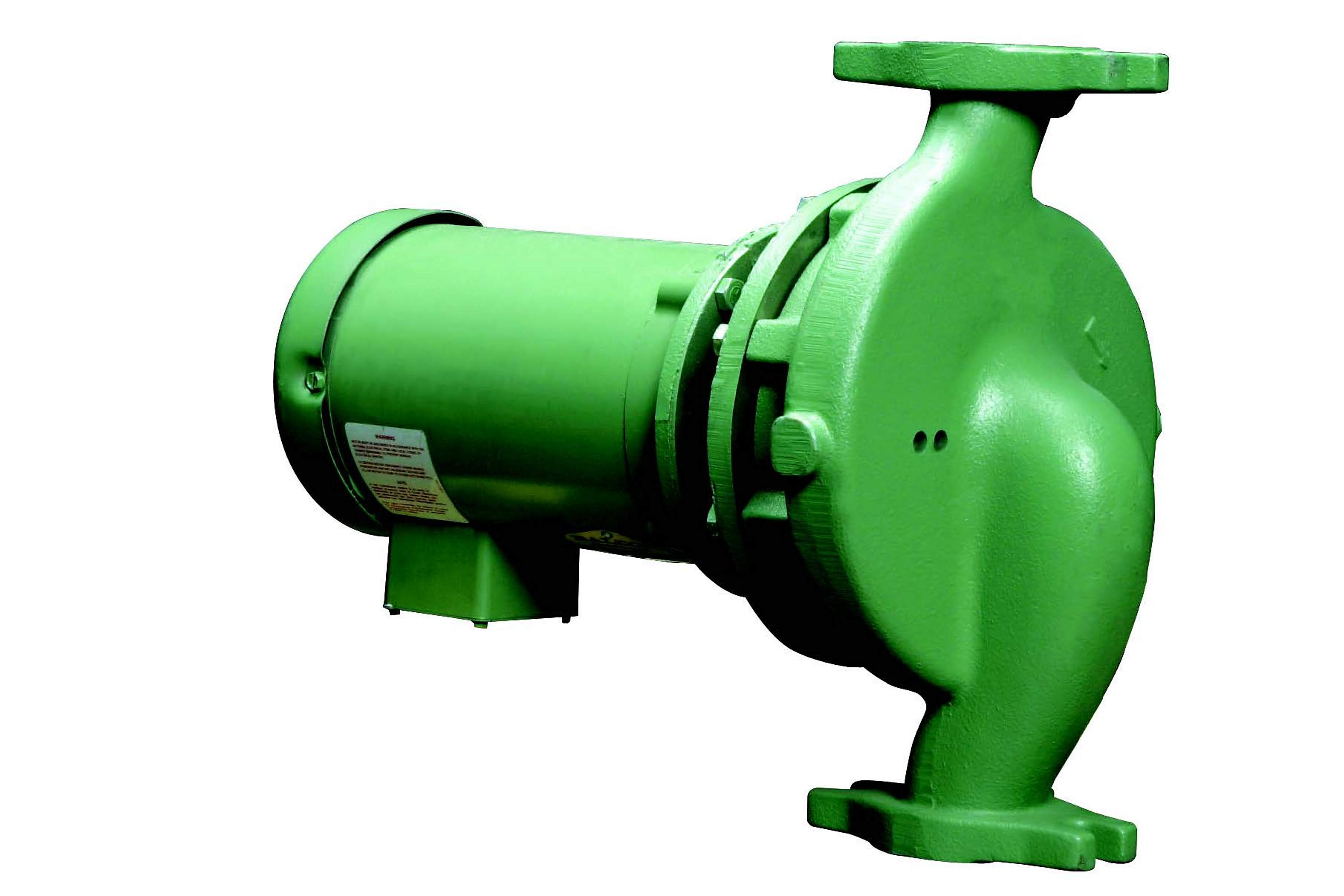

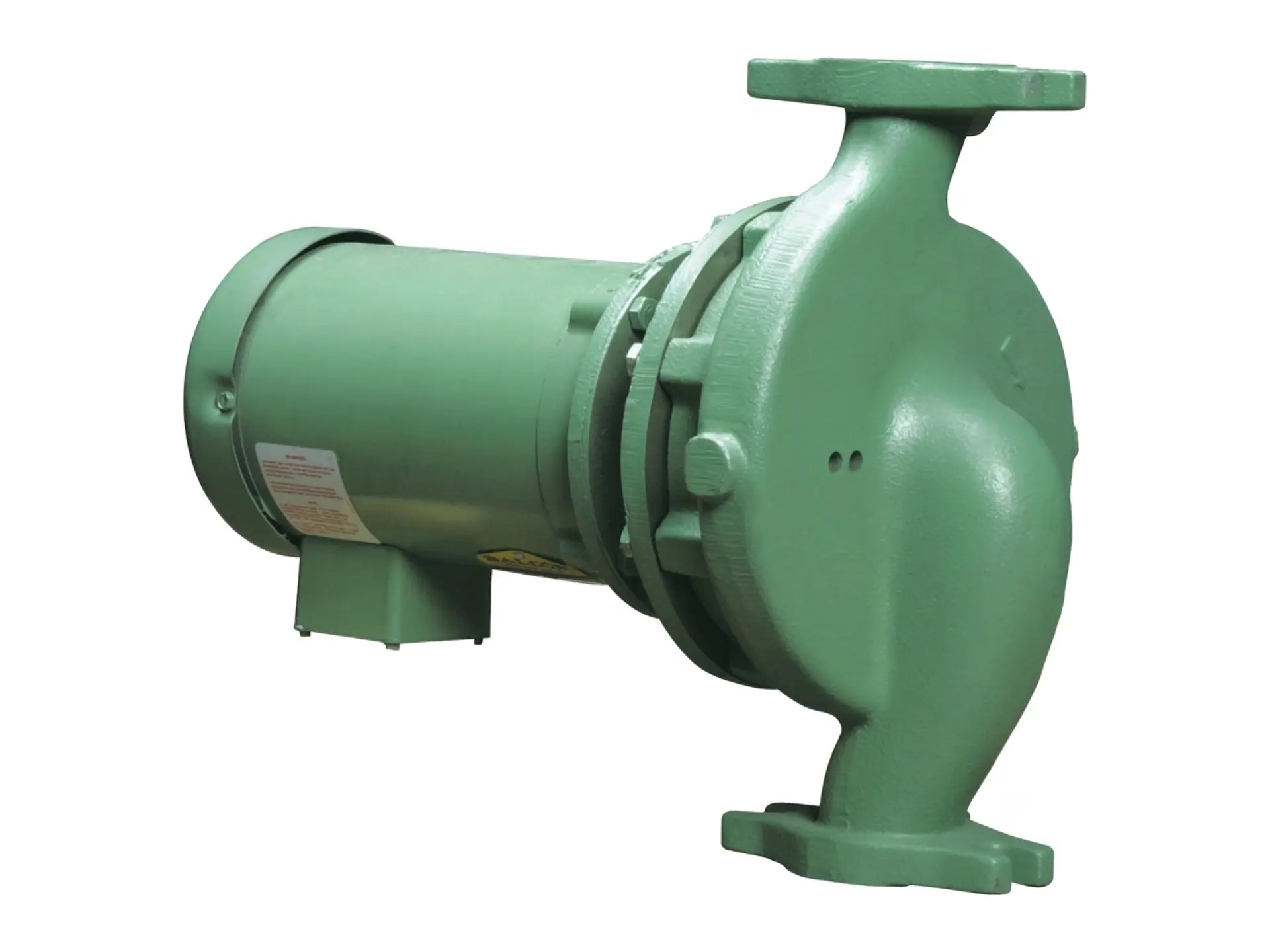

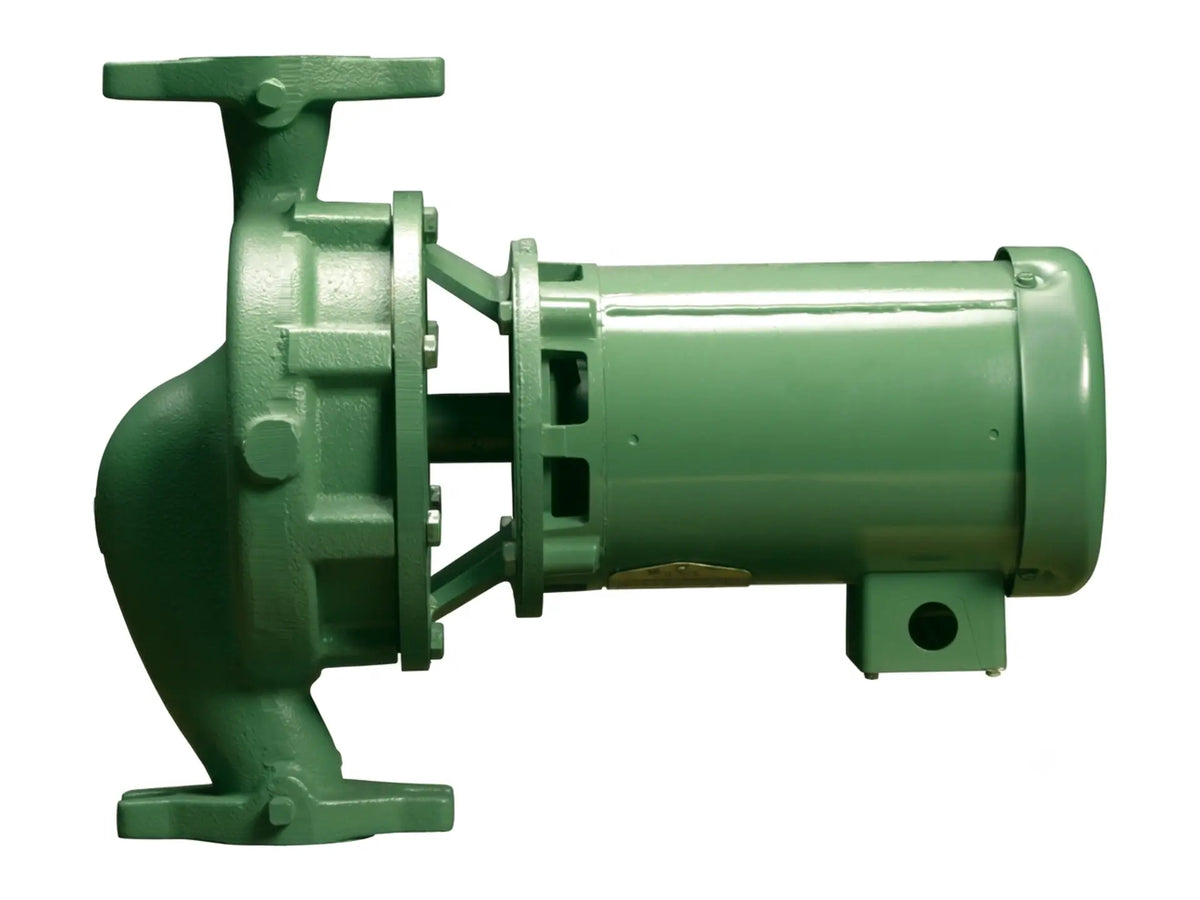

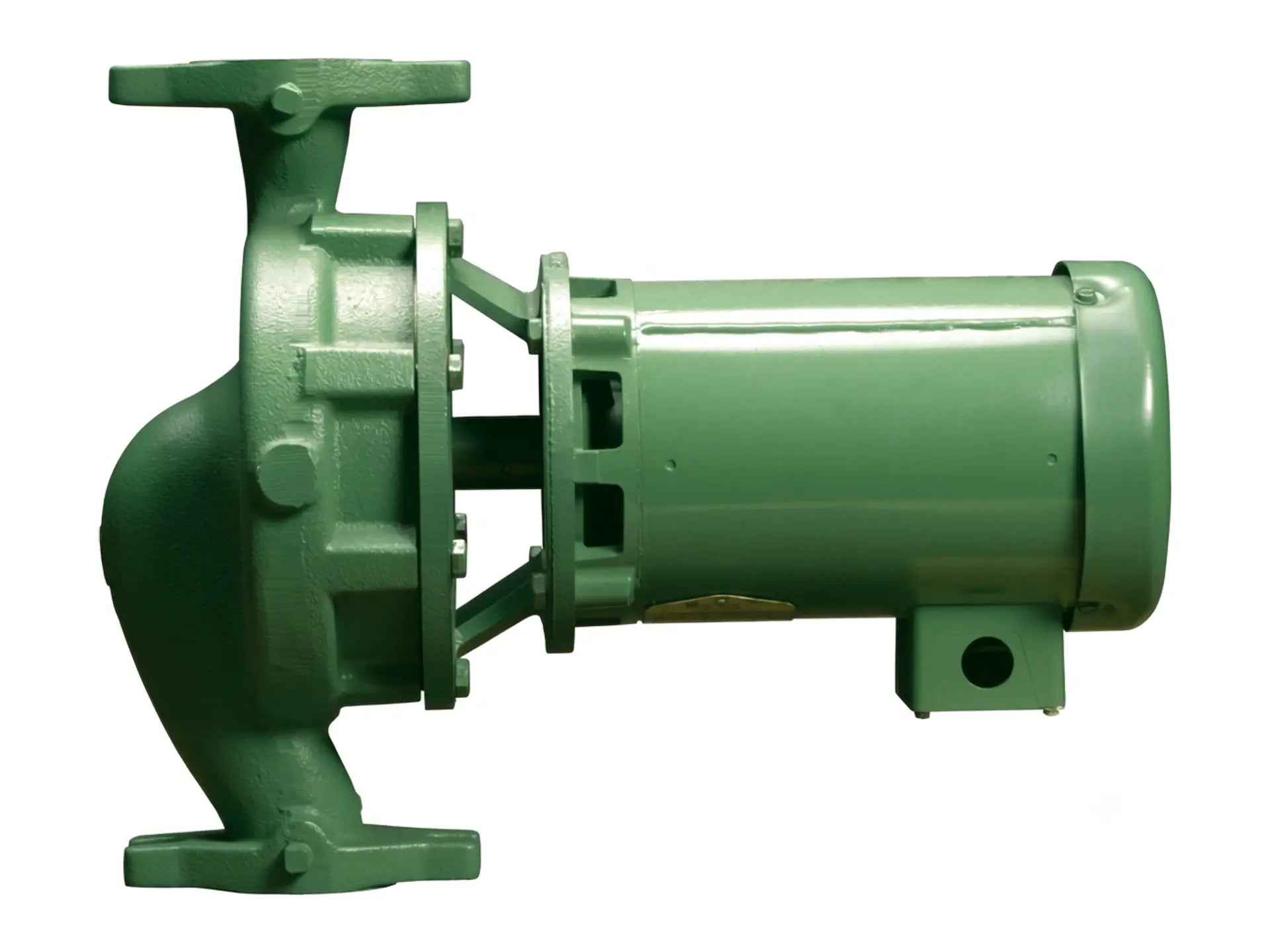

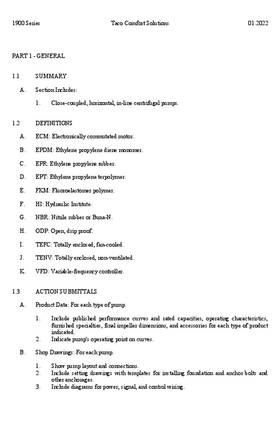

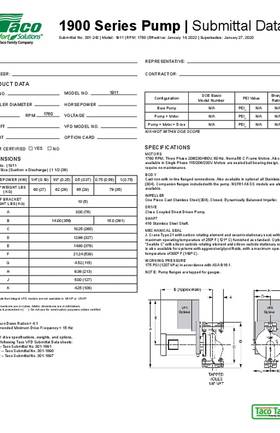

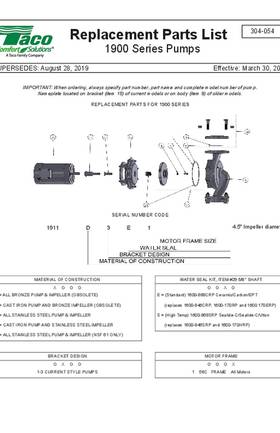

This close-coupled in-line pump features an in-line design with 2" suction and discharge ports aligned for smooth fluid flow. The unit includes an NSF-61 rated stainless steel casing, impeller, face plate, and shaft. A cast iron bracket supports the assembly, while a ceramic seat, carbon rotor, and EPT rubber mechanical seal manages fluid containment at temperatures reaching 250°F. This configuration is self-supporting, allowing for vertical or horizontal installation within the system piping. The hydraulic assembly has a 6.15" nominal impeller diameter and integrated pressure tappings, achieving a pump energy index of 0.48.

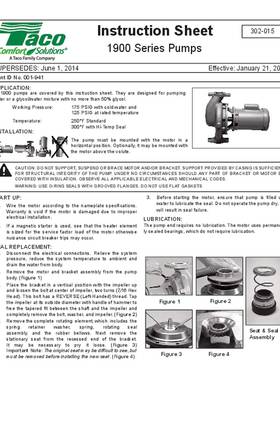

The system uses a 5 HP, 3450 RPM, TEFC motor with a 230/460V, 3PH power supply, combined with a VFD compatible with 208-240V, 3PH input. Maintenance-free operation is supported by permanently sealed, grease-lubricated motor ball bearings. Utilizing a rear pull-out design, the assembly permits complete removal of the motor and rotating components for servicing without disturbing the connected piping layout.
