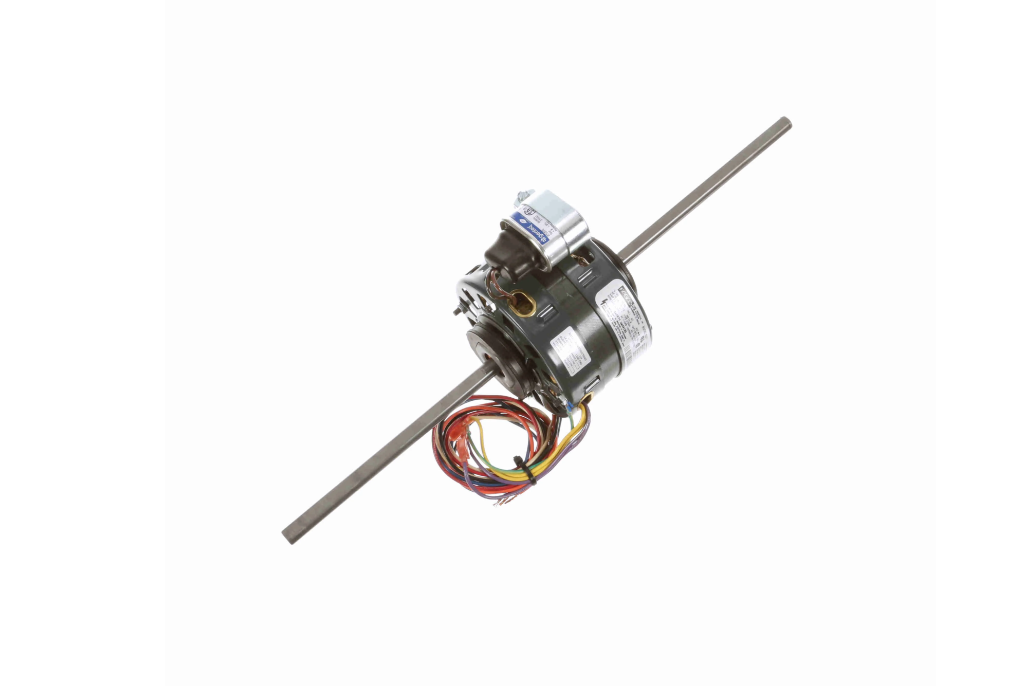

Resilient Mounting Ring Lead End and Opposite Lead End
Specifications
Phase:
1
Output KW:
0.13 kW
Speed:
1550 RPM
Frame:
42
Thermal Protection:
Thermally Protected
Frequency:
60 Hz
Duty:
Continuous
UL:
Recognized
CE:
N
Electrical Type:
Permanent Split Capacitor
Poles:
4
Mounting:
Resilient Rings
Opp Drive End Bearing:
Sleeve
Shaft Type:
Flat
Shaft Diameter:
0.500 in
Output HP:
1/6-1/8-1/10-1/12 HP
Voltage:
120 V
Service Factor:
1
Enclosure:
Open Air Over
Ambient Temperature:
40°C
Current:
3.2/1.7/1.3/1.1 A
Insulation Class:
B
CSA:
Y
Number of Speeds:
4
Starting Method:
Across the Line
Rotation:
Reversible
Drive End Bearing:
Sleeve
Frame Material:
N/A
Overall Length:
19.58 in
Shaft Extension:
8.13 in
Specifications
Manufacturer
Fasco
Part Number
D221
About Fasco
Fasco offers various commercial HVAC, pumping, and air-moving applications. The product range includes C-Frame, 3.3", and ECM smart motors integrated with the blower unit. Fasco has a 100-year history as an industry innovator that produces cutting-edge technology to solve problems, save energy, and reduce downtime.
