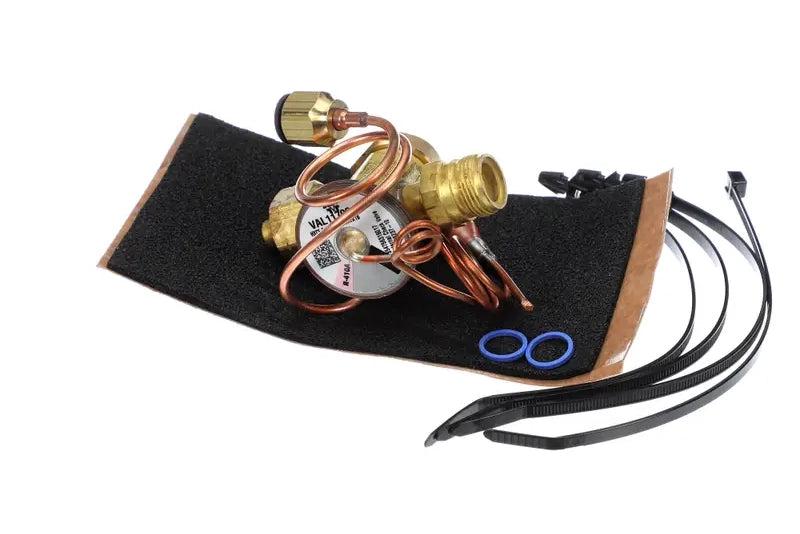

This thermal expansion valve is designed to regulate the flow of refrigerant in a 3-ton HVAC system. It features a Chatleff connection and a 15% bleed, which allows for precise control of the refrigerant flow and ensures optimal performance.
Specifications
| Actual Length/Depth |
5.3" |
| Actual Width |
4.7" |
| Actuator Type |
Thermal |
| Capacity (Ton) |
3 |
| Charge Code |
KX200 |
| Connection Type |
Chatleff |
| Flow Control |
15% Bleed |
| Inlet Size (In) |
3/4 - 20 - 2A UNF Thread 3/4 Hex Across Flats |
| Outlet Size (In) |
3/4 - 20 - 2BUNF Thread 7/8 Hex Across Flats |
| Pressure Rating |
87/135 psi Super Heat Setpoint |
| Refrigerant |
R-410A |
| Size |
10" Length |
| Type |
Sweat |
