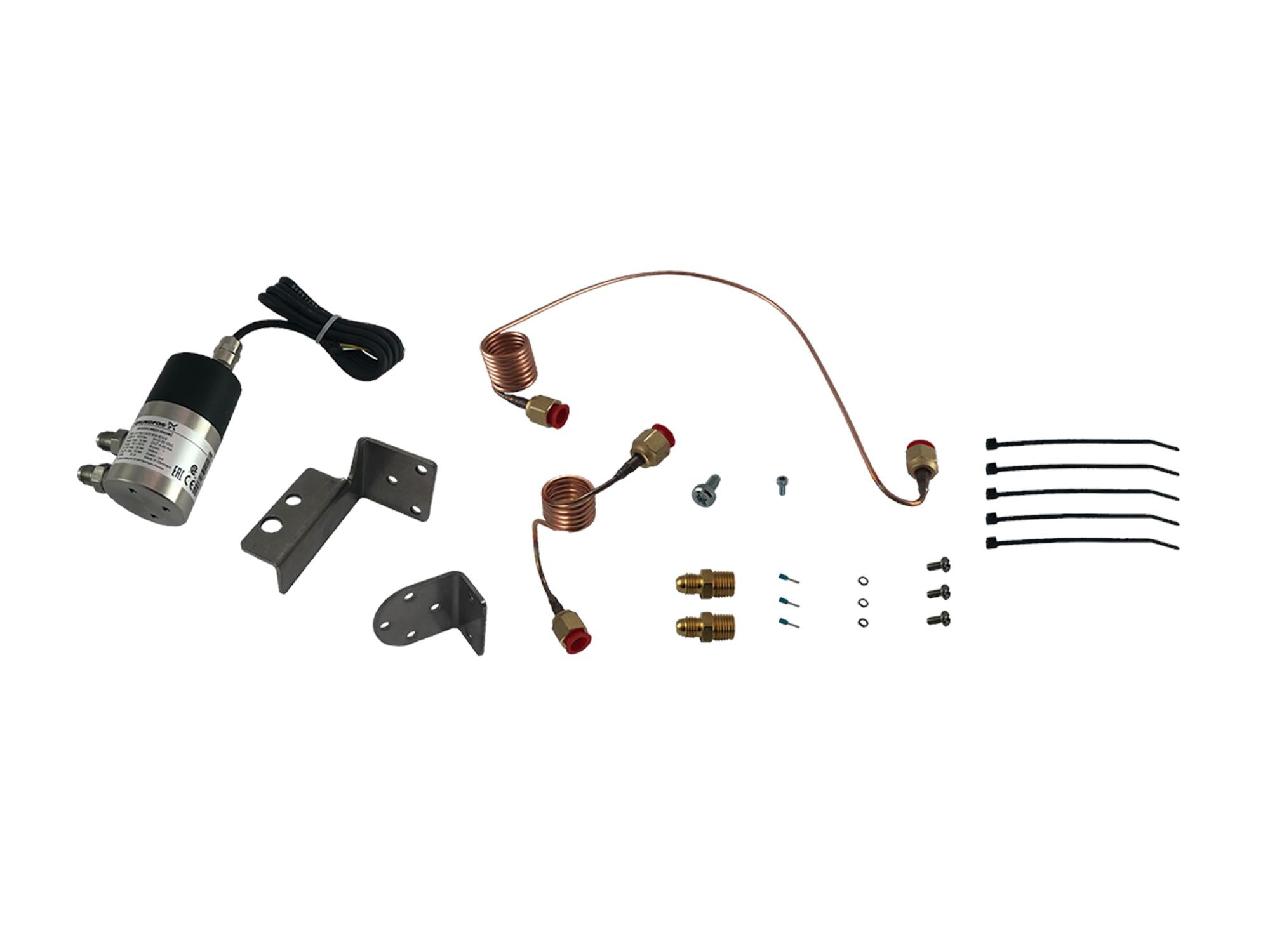

This differential pressure industrial sensor is designed to be robust and accurate, with a Silicoat coating that allows direct contact with media while providing stable signals.
Specifications
Manufacturer
Grundfos
Part Number
96611527
Approvals
EAC
Pressure differential functionality (Yes/No)
Y
Pressure relative functionality (Yes/No)
N
Flow functionality (Yes/No)
N
Temperature functionality (Yes/No)
N
Minimum measuring pressure
0 psi
Maximum measuring pressure
87.02 psi
Range of ambient temperature
-40 .. 158 °F
Liquid temperature range
14 .. 158 °F
Enclosure class (IEC 34-5)
IP55
Length of cable
2.95 ft
Minimum rated voltage DC
12.00 V
Maximum rated voltage DC
30.00 V
Net weight
2.11 lb
Gross weight
2.87 lb
Danish VVS No.
475273060
Swedish RSK No.
6010206
Finnish LVI No.
4534507
Country of origin
DK
Custom tariff no.
8544.42.9000
