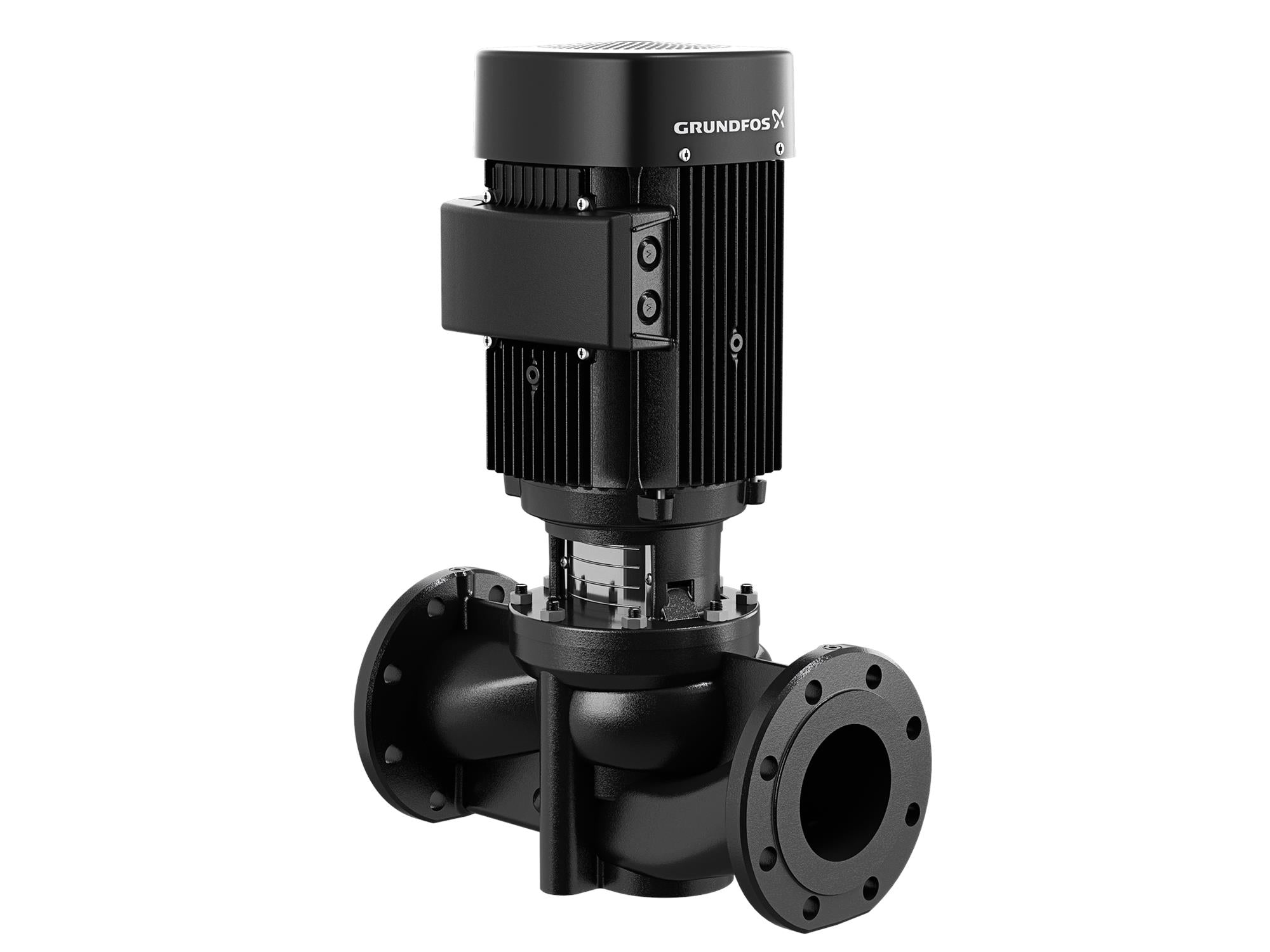

This inline single-stage pump is a TP80-160/2 A-G-A-RUUE model designed for applications such as heating, cooling, and district energy. It has a mechanical shaft seal and is fitted with fixed-speed motors.
Specifications
Manufacturer
Grundfos
Part Number
96736483
Rated flow
150 US gpm
Rated head
37.73 ft
Actual impeller diameter
3.56 in
Primary shaft seal
RUUE
Approvals on motor nameplate
UL Recognized Component, CSA
Curve tolerance
ISO9906:2012 3B2
Pump Number
96405273
Pump housing
Cast iron, EN-JL1040, ASTM 25 B
Impeller
Stainless steel, DIN W.-Nr. 1.4301, AISI 304
Maximum ambient temperature
104 °F
Pipe connection
3"
Pressure stage
125 lb.
Pumped liquid
Water
Liquid temperature range
140 .. 140 °F
Selected liquid temperature
68 °F
Density
62.29 lb/ft³
Motor type
BALDOR
Rated power - P2
3 HP
KVA code
H
Main frequency
60 Hz
Rated voltage
1 x 115/208-230 V
Service factor
1.15
Rated current
29/16-14,5 A
Full load SF current
31,8/18-16,9 A
Rated speed
3450 rpm
Insulation class (IEC 85)
F
Built-in motor protection
NONE
DOE Pump Energy Index CL
0.89
Gross weight
161 lb
Shipping volume
4.98 ft³
Country of origin
US
Custom tariff no.
8413.70.2025
