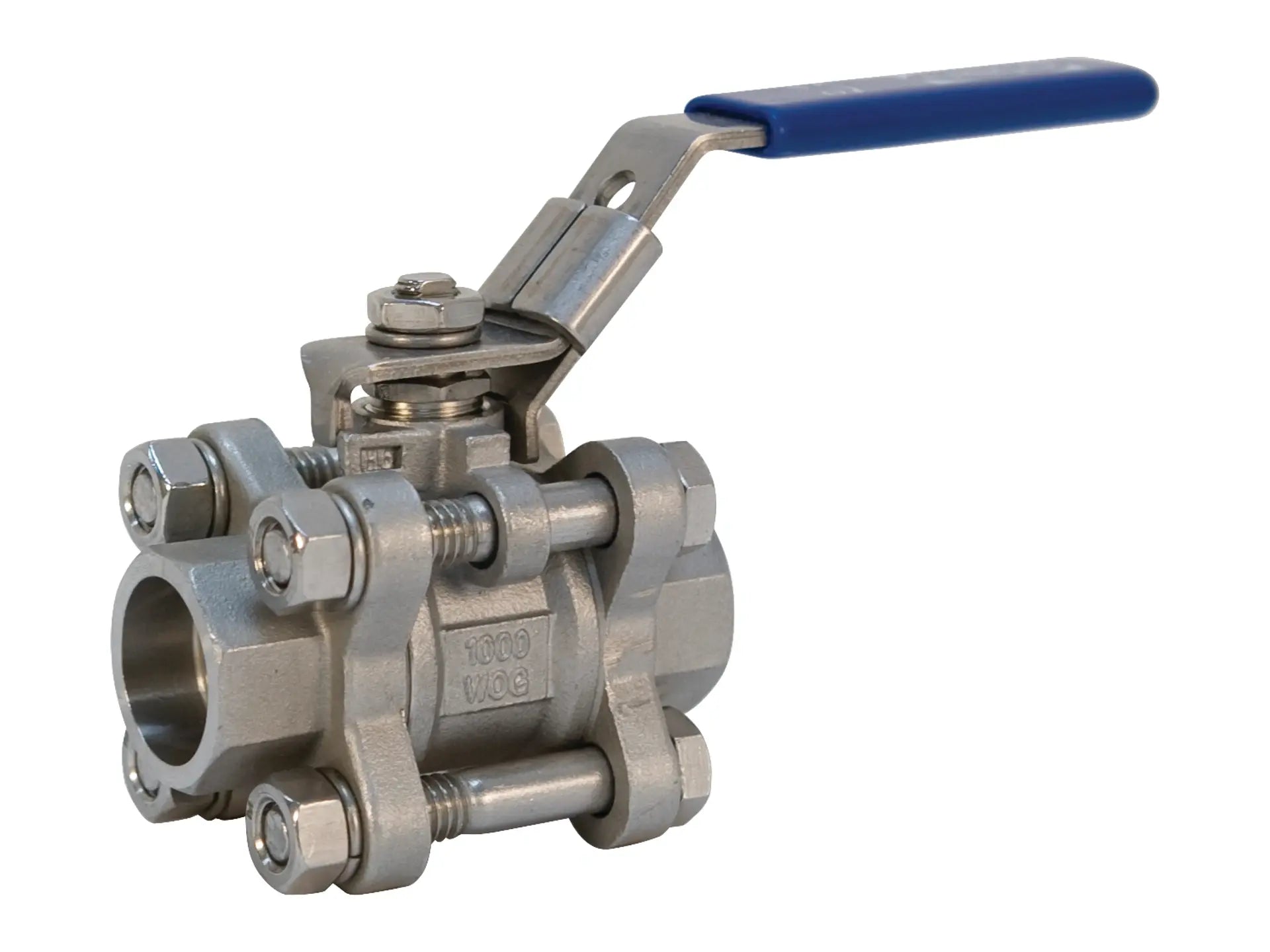

NIBCO K-595-S6R-66-LL 2" Socket Weld Stainless Steel Ball Valve NL99F4D

SKU: LSI7XG85EO Part Number: NL99F4D Model: K-595-S6R-66-LL

Price:
Sale price$529.95 Regular price$1,059.00

Save 50% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

This NIBCO stainless steel ball valve provides bubble-tight shutoff at 1000 psi. This valve features socket weld connections for easy installation. The three-piece valve may be used on hot/cold water, HVAC, and is recommended for process piping, some chemical and utility service applications. This valve features a standard locking lever handle for security. It may be used for isolation and throttling (half open to full open only). This NIBCO three-piece ball valve provides ease of operation with quarter-turn (90°) open to close. The reinforced PTFE seat ring and stainless steel stem and ball exhibit high chemical resistance properties and is recommended for process piping. Please refer to NIBCO technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO ball valves are backed by the exclusive NIBCO INC. 5-year 125% limited warranty.

Features

  • Valve pressure rating 1,000 psi 69 bar non-shock cold working pressure
  • Maximum temperature rating 400°F
  • Full port
  • Blowout-proof stem
  • Stainless steel ball and stem
  • Vented ball
  • Locking lever handle
  • Socket weld end connections
  • Conforms to MSS SP-110

Specifications

Manufacturer NIBCO
Part Number NL99F4D
Model K-595-S6R-66-LL
Series K-595-S6-R-66-LL
Type of Valve Ball
Nominal Pipe Size 2"
End Connection Type K - Socket Weld
Material Stainless Steel
Ball Body Type Three-Piece
Ball Operator CS Locking Lever Handle
Ball Port Style Full Port
Ball Stem Material SS - Stainless Steel
Trim Package Stainless Steel Trim
Seat Seal Material RPTFE (Reinforced)
Turns Operations Quarter-Turn
Pressure Rating (CWP) 1000 psi/69 Bar CWP
Potable Water Code Not LL Comp not intend potable
UPC Code 039923793966
Length 10.67"
Width 6.33"
Height 4.15"
Country of Origin TW

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
