Webstone H-7-G306W-140, THD-7-X30W-140 1-1/2 Forged DZR Brass Union Fitting

SKU: LSI8545IAJ Part Number: H-7-G306W-140 Model: THD-7-X30W-140

Price:
Sale price$40.95 Regular price$52.68

Save 22% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

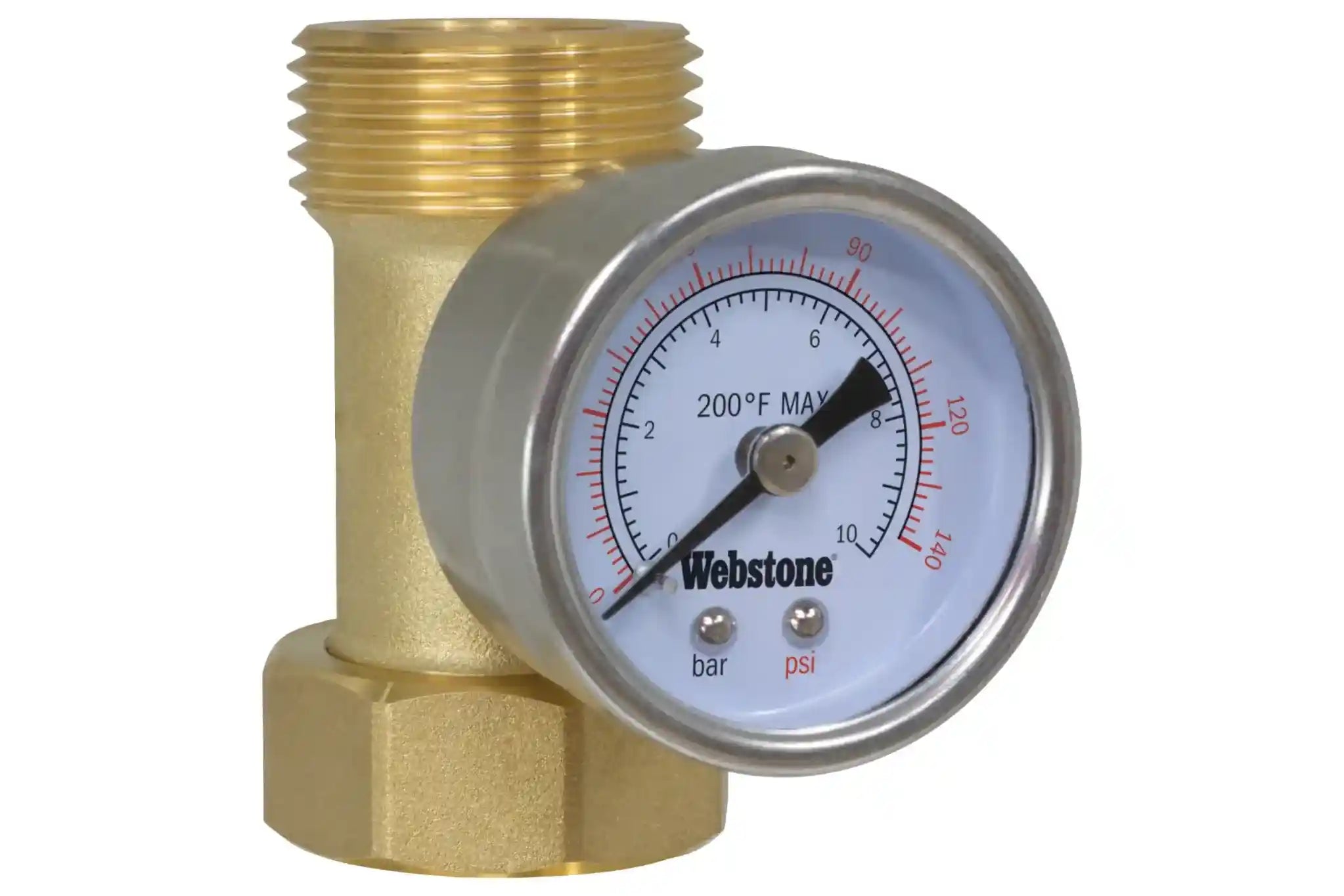

This Webstone G-Series Pressure Gauge Fitting is designed to install between a G-Series body and union fitting (sold separately) for precise system monitoring with a back-mounted gauge rated at either 60 PSI or 140 PSI. By combining these fittings with G-Series bodies, you can create custom, space-saving configurations and easily mix and match end connections to accommodate different piping types and sizes. Each fitting features a non-piloting design and EPDM gasket seal for hassle-free installation and removal, making them ideal for tracking temperature and pressure in both residential and commercial systems using water, oil, or glycol mix. Like all Webstone products, these fittings come backed by a limited lifetime warranty for added peace of mind.

Features

  • Installs Between a G-Series Body and Fitting to Provide Pressure Reading Right at the Source
  • Choice of 60 or 140 PSI Max Gauge
  • G-Series Connections Allow for Multiple Options to Customize Your Installation
  • Saves Time
  • Replaces Components
  • Eliminates Leak Paths
  • Models available to satisfy all state and federal low-lead laws
  • Available in G-Union x GMT
  • Certified to NSF/ANSI/CAN 61 & 372

Specifications

Manufacturer Webstone
Part Number H-7-G306W-140
Model THD-7-X30W-140
Nominal Pipe Size 1-1/2"
UPC Code 018394027404
Length 5.51
Width 3.94
Height 2.76
Country of Origin CN
Potable Water Code LL Compliant NSF/ANSI 372
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Series H-7-X30
Notes and Disclaimer P65-Lead
Material Lead-Free Brass
Type of Fitting Union
Valve End Connection Type G Union x G Thread
End Connection Union
Valve Pressure Rating (WBS) 200 PSI CWP Max

About Webstone

Founded in 1954, Webstone is recognized as an industry leader for innovative design of residential and commercial valves used in plumbing, hydronic, radiant, solar and geothermal applications.
