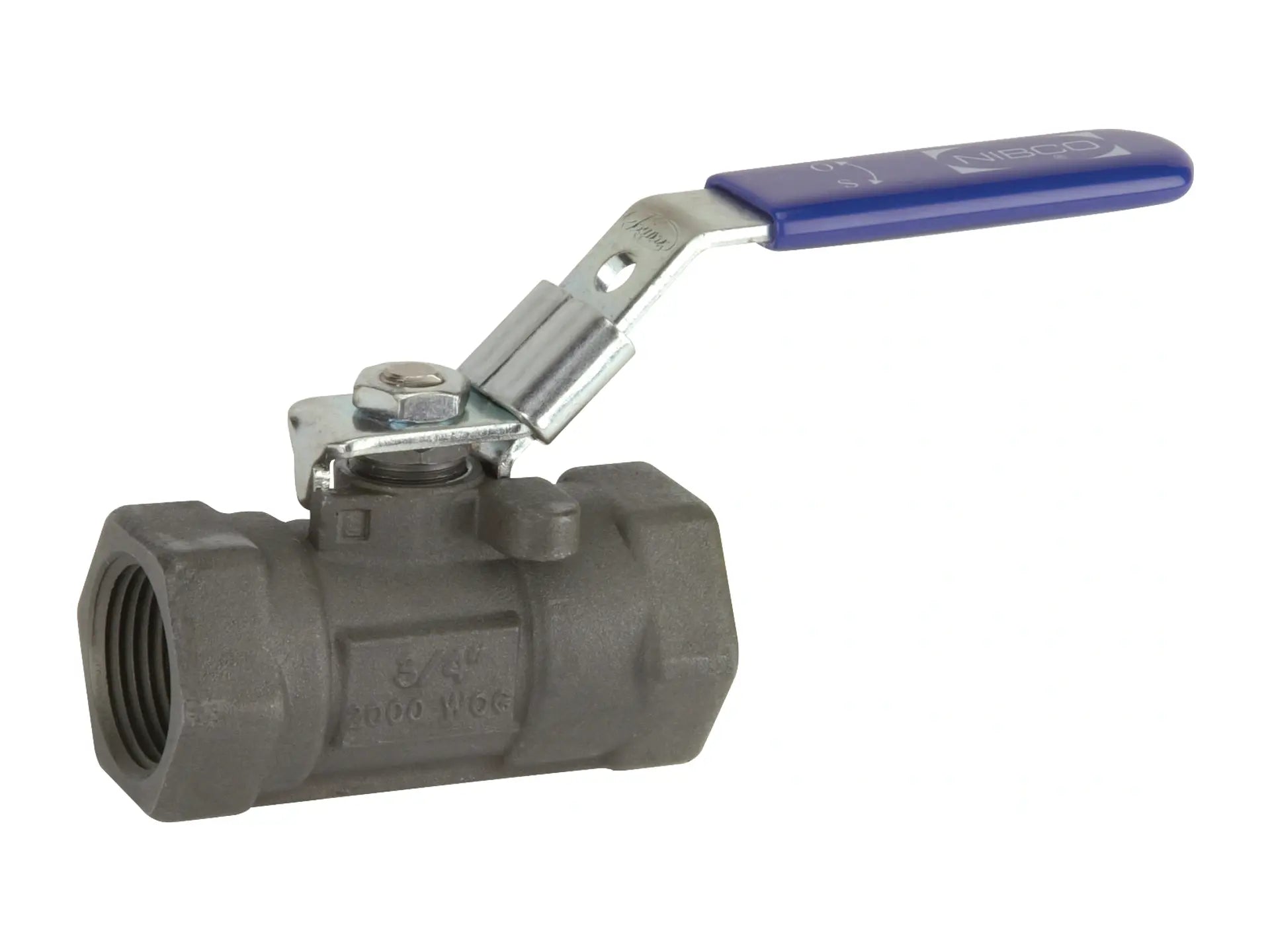

NIBCO T-560-CSR-66-LL 1-1/4" FIPT Carbon Steel Ball Valve NL941JBP

SKU: LSI88BLMJP Part Number: NL941JBP Model: T-560-CSR-66-LL

Price:
Sale price$137.95 Regular price$274.80

Save 50% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

This NIBCO carbon steel ball valve provides bubble-tight shutoff at 2000 psi. The reinforced PTFE seat ring and stainless steel stem and ball exhibit high chemical resistance properties and is recommended for process piping. The one-piece valve may be used on hot/cold water, HVAC, and is recommended for process piping, some chemical and utility service applications. This NIBCO carbon steel ball valve provides ease of operation with quarter-turn (90°) open to close. This valve features a standard locking lever handle for security purposes. It may be used for isolation and throttling (half open to full open only). The one-piece design eliminates leak paths and features threaded ends for easy installation. Please refer to NIBCO technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO ball valves are backed by the exclusive NIBCO INC. 5-year 125% limited warranty.

Features

  • Valve pressure rating 2000 psi 138 bar non-shock cold working pressure
  • Maximum temperature rating 400°F
  • Reduced port
  • Blowout-proof stem
  • Stainless steel ball and stem
  • Vented ball
  • Locking lever handle
  • Threaded end connections
  • Conforms to MSS SP-110

Specifications

Manufacturer NIBCO
Part Number NL941JBP
Model T-560-CSR-66-LL
Series T-560-CS-R-66-LL
Type of Valve Ball
Nominal Pipe Size 1-1/4"
End Connection Type T -- Female NPT Thread (FIPT)
Material Carbon Steel
Ball Body Type One-Piece
Ball Operator CS Locking Lever Handle
Ball Port Style Reduced Port
Ball Stem Material SS - Stainless Steel
Trim Package Stainless Steel Trim
Seat Seal Material RPTFE (Reinforced)
Turns Operations Quarter-Turn
Pressure Rating (CWP) 2000 psi/138 Bar CWP
Potable Water Code Not LL Comp not intend potable
UPC Code 039923666482
Length 7.52"
Width 3.74"
Height 2.27"
Country of Origin TW

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
