Description

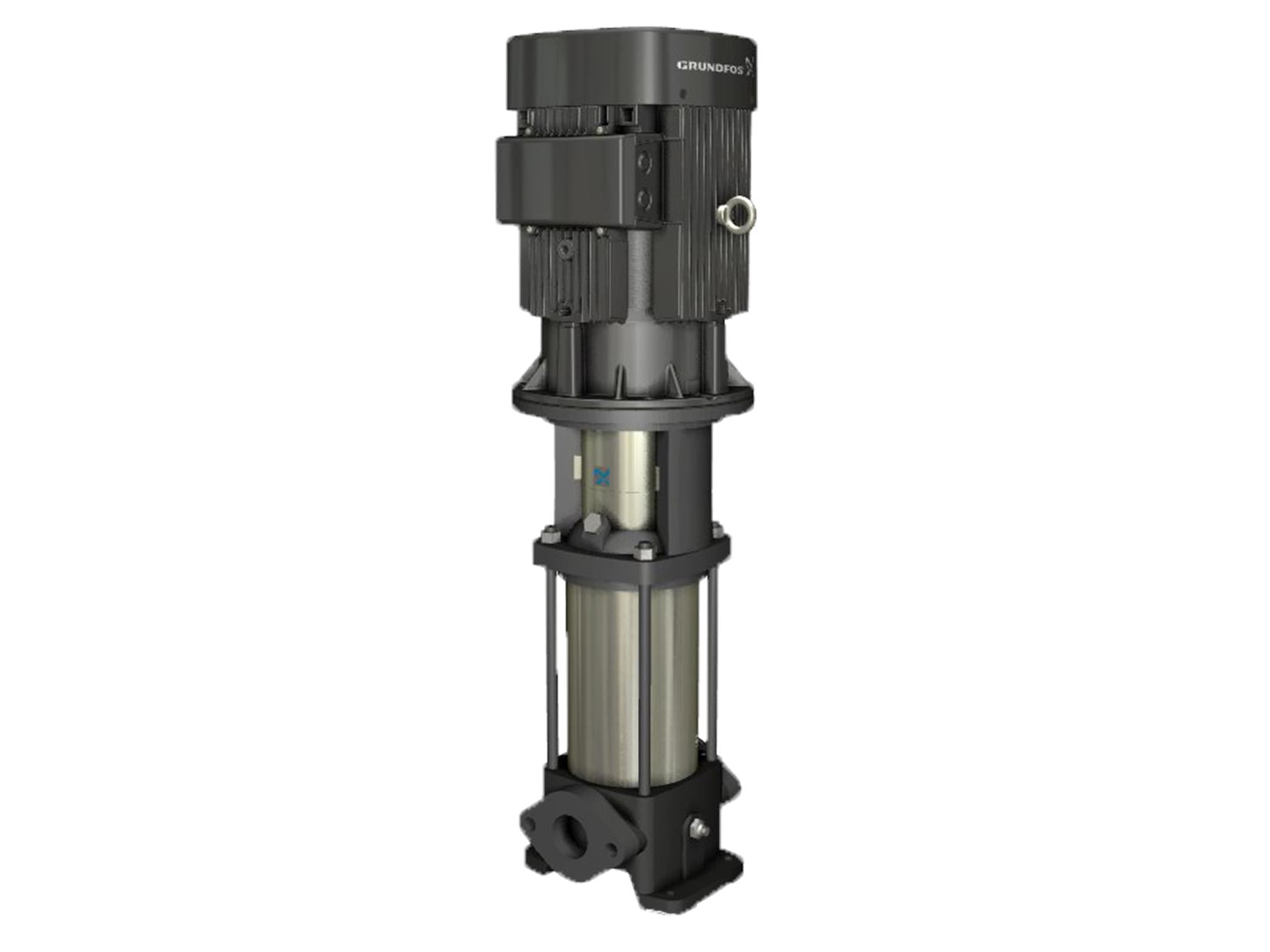

This vertical multistage centrifugal pump has suction and discharge ports on the same level, with materials in contact with the liquid made of stainless steel (EN 1.4301). It is suitable for applications such as water treatment fertigation, chemigation, dosing, controls and digital groundwater management, as well as drip, micro spray, and soaker hose irrigation.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 99012199 |
| Rated pump speed | 3425 rpm |
| Rated flow | 4.84 US gpm |
| Rated head | 95.48 ft |
| Maximum head | 140.1 ft |
| Stages | 5 |
| Impellers | 5 |
| Number of reduced-diameter impellers | 0 |
| Low NPSH | N |
| Pump orientation | Vertical |
| Shaft seal arrangement | Single |
| Code for shaft seal | HQQE |
| Approvals | CURUS |
| Approvals for drinking water | NSF/ANSI 61 |
| Curve tolerance | ISO9906:2012 3B |
| Pump version | A |
| Base | Cast iron, EN 1561 EN-GJL-200, ASTM A48-25B |
| Impeller | Stainless steel, EN 1.4301, AISI 304 |
| Material code | A |
| Code for rubber | E |
| Maximum ambient temperature | 104 °F |
| Maximum operating pressure | 232.06 psi |
| Max pressure at stated temperature | 232 psi / 250 °F, 232 psi / -4 °F |
| Type of connection | Oval / NPT(F) |
| Size of suction port | 1 inch |
| Size of outlet port | 1 inch |
| Pressure rating for connection | PN 16 |
| Flange size for motor | 56C |
| Connect code | B |
| Pumped liquid | Water |
| Liquid temperature range | -4 .. 248 °F |
| Selected liquid temperature | 68 °F |
| Density | 62.29 lb/ft³ |
| Motor standard | NEMA |
| Motor type | BALDOR |
| Rated power - P2 | 0.33 HP |
| Power (P2) required by pump | 0.33 HP |
| Main frequency | 60 Hz |
| Rated voltage | 3 x 230/460 V |
| Service factor | 1.35 |
| Rated current | 1.4/0.7 A |
| Rated speed | 3450 rpm |
| Motor efficiency at full load | 70 % |
| Number of poles | 2 |
| Enclosure class (IEC 34-5) | 55 Dust/Jetting |
| Insulation class (IEC 85) | B |
| Built-in motor protection | NONE |
| Frequency converter | None |
| Pressure sensor | N |
| Net weight | 48.6 lb |
| Gross weight | 59.6 lb |
| Shipping volume | 4.94 ft³ |
