Grundfos 99929878, Vertical Multistage Centrifugal Pump for Machining

Roll over image to zoom in Click on image to zoom

Grundfos 99929878, Vertical Multistage Centrifugal Pump for Machining

Name: Grundfos 99929878, Vertical Multistage Centrifugal Pump for Machining
Brand: Grundfos
SKU: LSI9AG884D
Price: 3479.0 USD
Availability: OutOfStock

SKU: LSI9AG884D Part Number: 99929878

Price:

$3,479.00

Save 0% Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

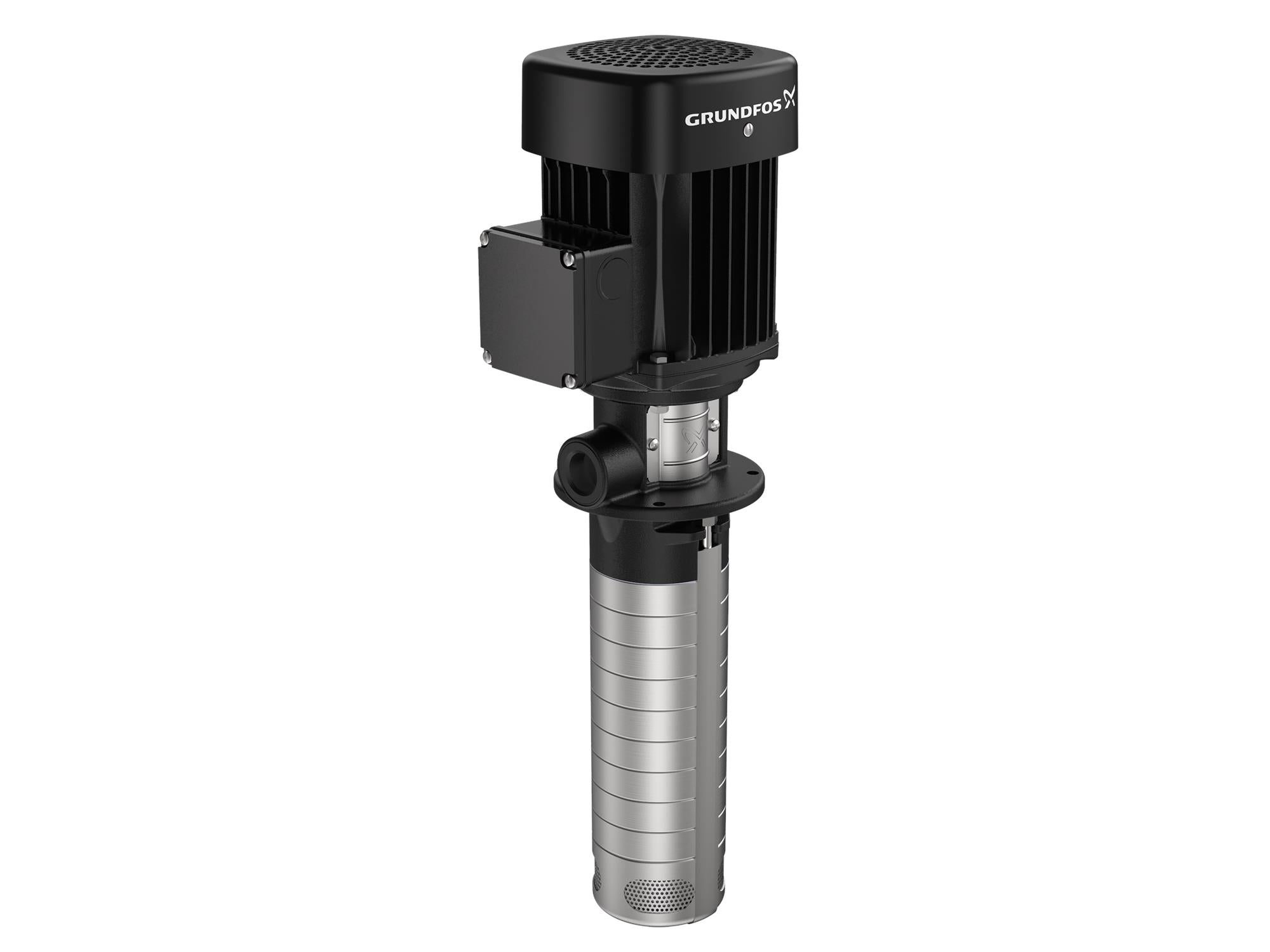

This vertical multistage centrifugal pump is designed for tank top mounting and is used for pumping cooling lubricants and cutting oils in machine tools, as well as condensate transfer and similar applications.

Manufacturer	Grundfos
Part Number	99929878
Pump speed on which pump data are based	3500 rpm
Stages	15
Impellers	11
Code for shaft seal	AUUV
Approvals	CE
Approvals for motor	cURus/cCSAus
Curve tolerance	ISO9906:2012 3B
Pump version	A
Cooling	IC 411
Drain holes	Open drain hole
Pump housing	Cast iron, EN 1561 EN-GJL-200, ASTM A48-25B
Impeller	Stainless steel, DIN W.-Nr. 1.4301, AISI 304
Material code	A
Range of ambient temperature	-4 .. 104 °F
Max pressure at stated temperature	363 psi / 194 °F
Pipe connection	NPT 1 1/4
Flange size for motor	56C
Connect code	WB
Pumped liquid	Emulsion
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Motor type	WEG
Rated power - P2	1 HP
KVA code	K
Main frequency	60 Hz
Rated voltage	1 x 115/208-230 V
Service factor	1.15
Rated current	10,1/5,64-5,06 A
Starting current	840 %
Full load SF current	11.6/5.06 A
Cos phi - power factor	0.92
Rated speed	3500 rpm
Motor efficiency at full load	70.0 %
Motor efficiency at 3/4 load	64.0 %
Motor efficiency at 1/2 load	55.0 %
Number of poles	2
Enclosure class (IEC 34-5)	IP55
Insulation class (IEC 85)	F
Built-in motor protection	PTO
Thermal protec	internal
Net weight	59.1 lb
Gross weight	64.8 lb

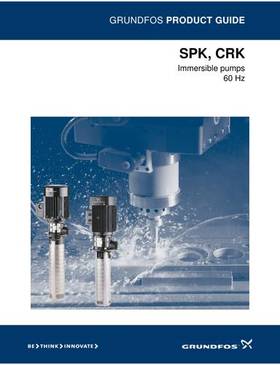

SPK, CRK (Data booklet)

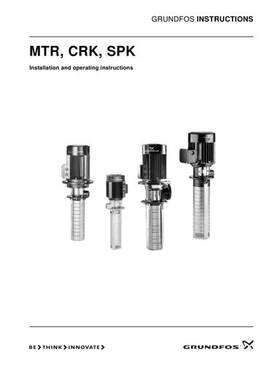

MTR, CRK, SPK (Installation and operating instructions)

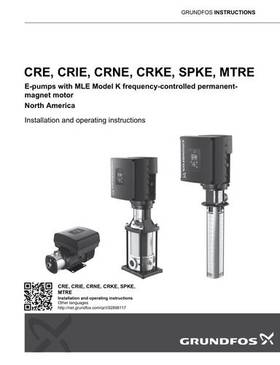

CRE, CRIE, CRNE, CRKE, SPKE, MTRE E-pumps with MLE model K permanent-magnet motor

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
