Grundfos 96861371, CRI 3-21 FK-FGJ-A-F-HQQE Vertical Multistage Pump

SKU: LSI9H4641E Part Number: 96861371

Price:
Sale price$7,447.95 Regular price$11,115.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

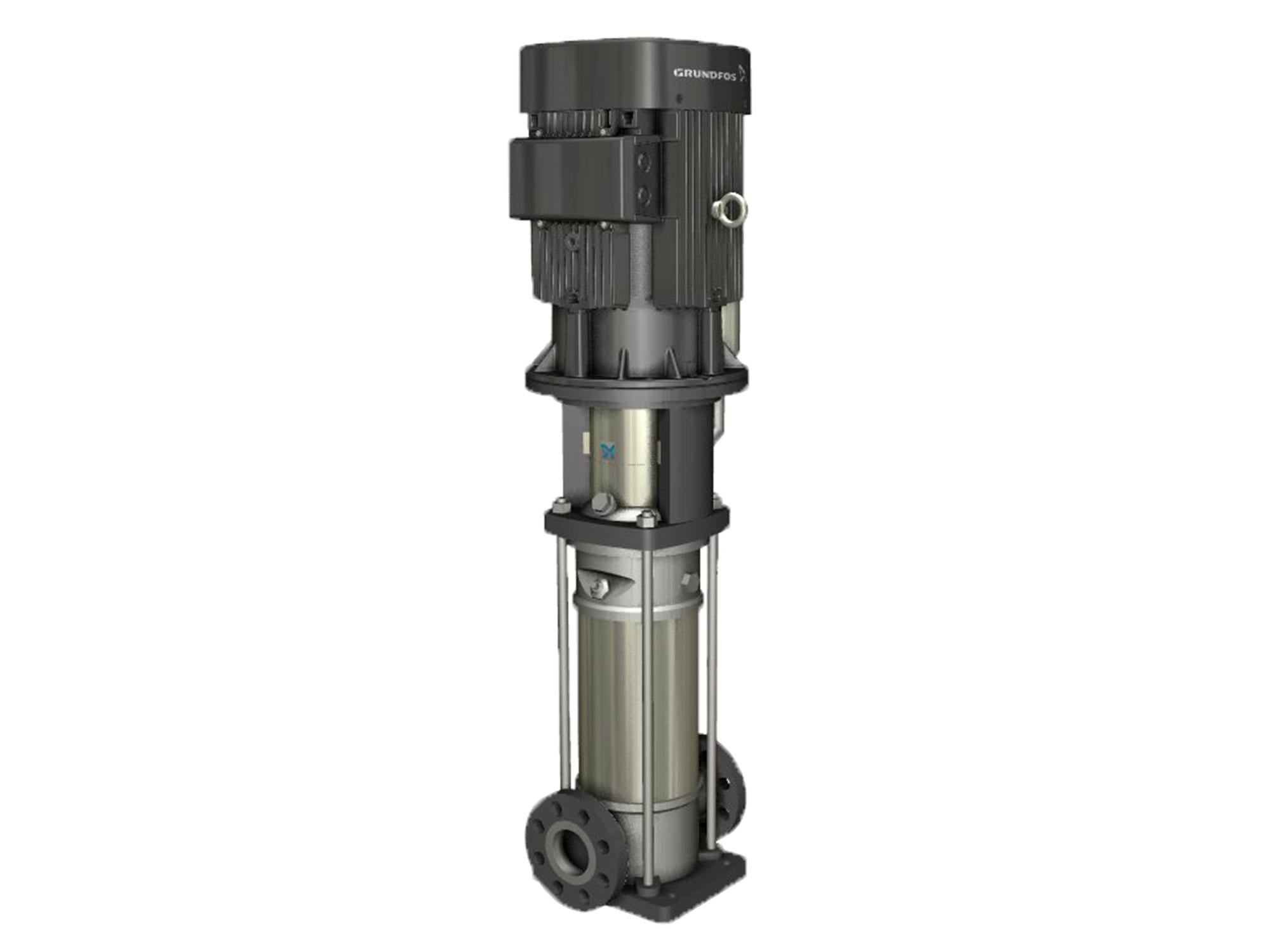

This vertical multistage centrifugal pump has suction and discharge ports on the same level.

Specifications

Manufacturer Grundfos
Part Number 96861371
Rated pump speed 3461 rpm
Rated flow 15.4 US gpm
Rated head 497.1 ft
Maximum head 660.5 ft
Stages 21
Impellers 21
Number of reduced-diameter impellers 0
Low NPSH Y
Pump orientation Vertical
Shaft seal arrangement Single
Code for shaft seal HQQE
Approvals CE
Curve tolerance ISO9906:2012 3B
Pump version FK
Base Stainless steel, EN 1.4408, AISI 316
Impeller Stainless steel, EN 1.4301, AISI 304
Material code A
Code for rubber F
Maximum operating pressure 362.59 psi
Max pressure at stated temperature 363 psi / 356 °F, 362.59 psi / 14 °F
Type of connection DIN / ANSI / JIS
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Pressure rating for connection PN 25
Flange rating inlet 300 lb
Flange size for motor 182TC
Connect code FGJ
Liquid temperature range 14 .. 356 °F
Motor standard NEMA
Frequency converter None
Pressure sensor N
Net weight 67.9 lb
Gross weight 85.8 lb
Shipping volume 8.26 ft³

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.

Estimate shipping

Repair Parts

(3 items)

Grundfos 96455086, Shaft Seal Kit HQQEGG KB012S1
Save 6%

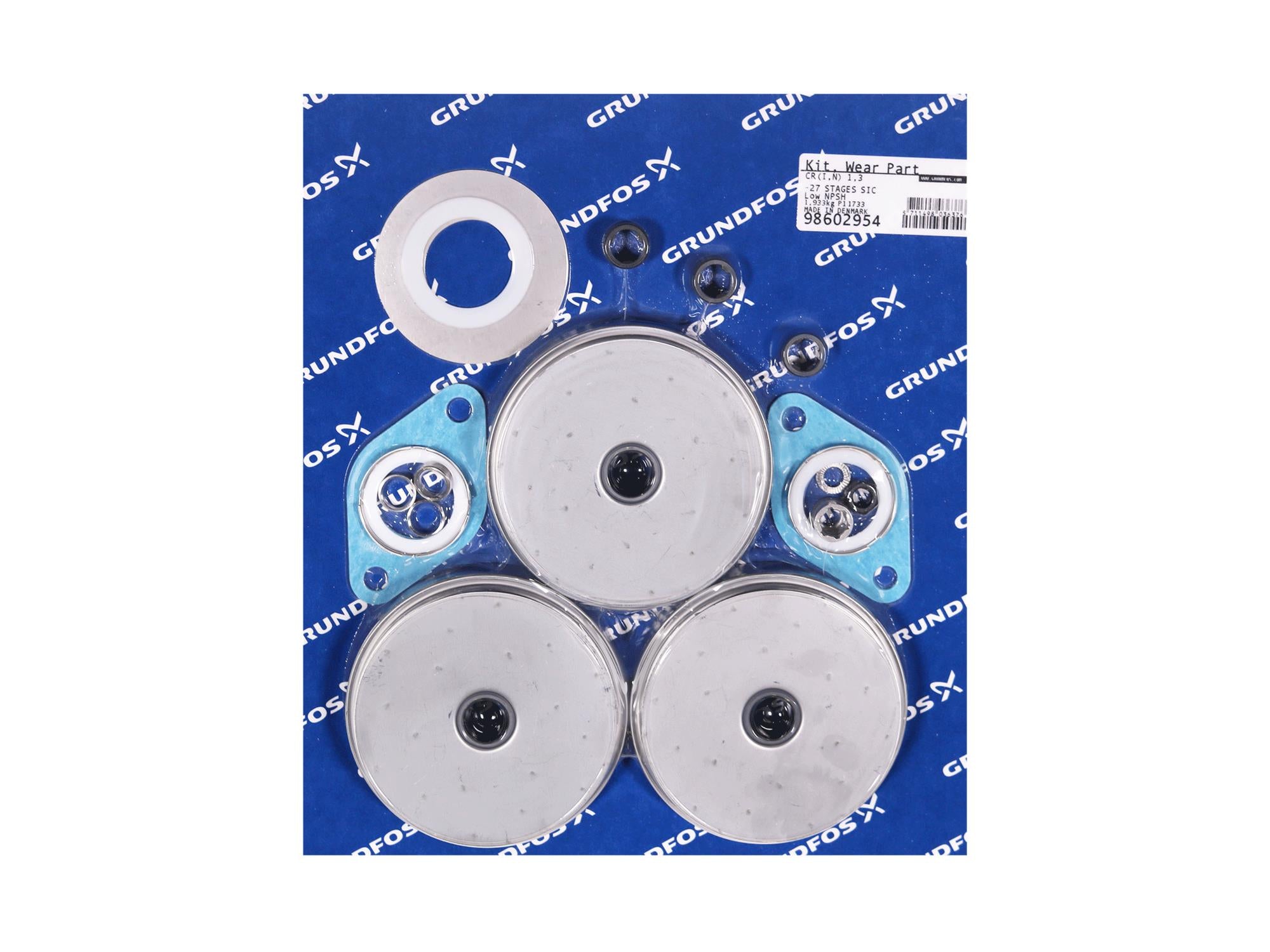

Grundfos 98602954, Wear Part Kit CR1/3 -27 St SIC L NPSH
Save 6%
Grundfos logo
Grundfos Grundfos 98606621, O-Rings Kit FXM SmCR
Sale price$336.95 Regular price$360.00
