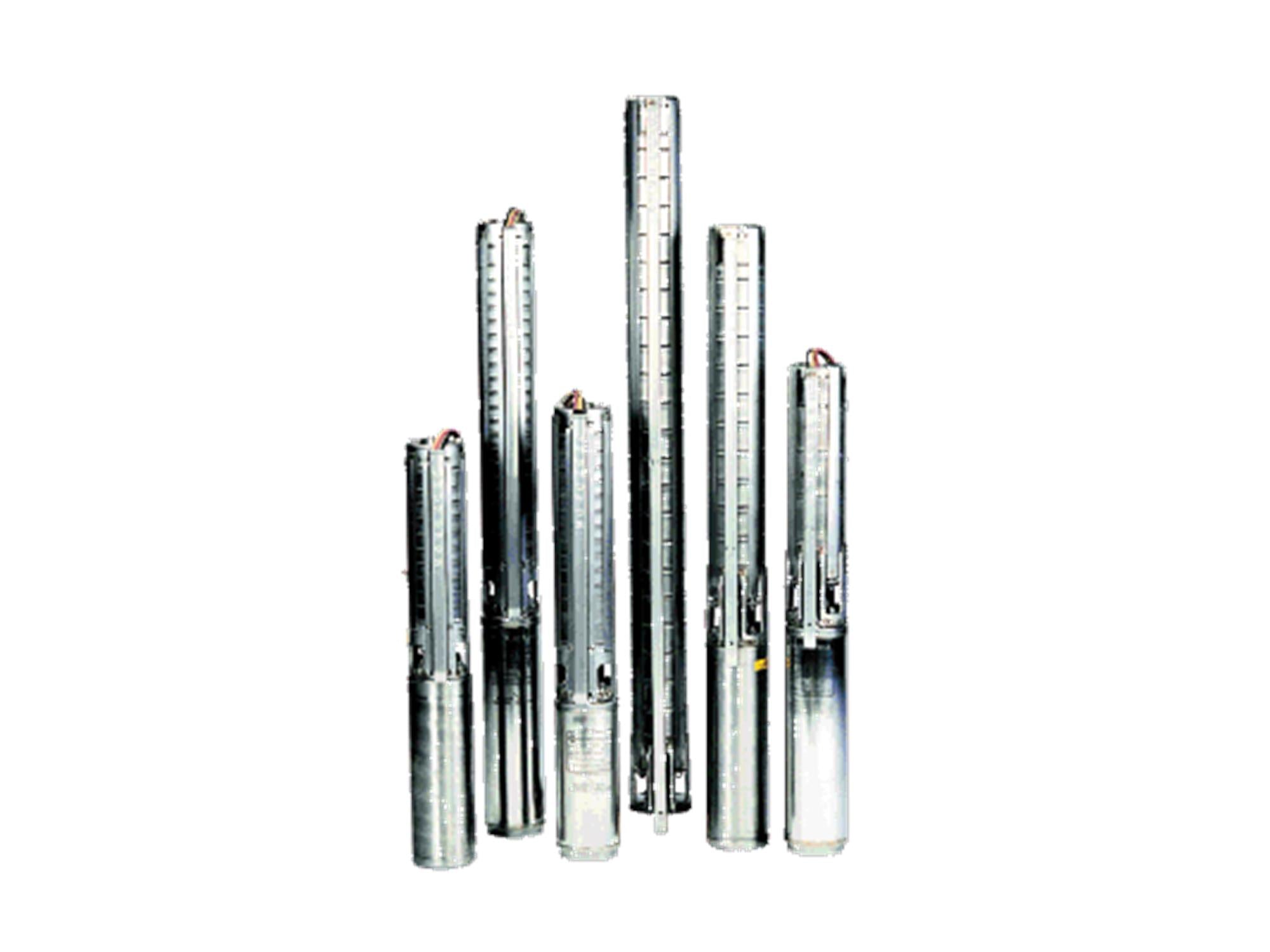

Grundfos 12B60030, Submersible Pump 85S400-30 Stainless Steel

Roll over image to zoom in Click on image to zoom

Grundfos 12B60030, Submersible Pump 85S400-30 Stainless Steel

Name: Grundfos 12B60030, Submersible Pump 85S400-30 Stainless Steel
Brand: Grundfos
SKU: LSI9KJNX4U
Price: 15883.95 USD
Availability: OutOfStock

SKU: LSI9KJNX4U Part Number: 12B60030

Price:

$15,883.95

Save -24% Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

This submersible pump is constructed from stainless steel, including EN 1.4301 (AISI 304), EN 1.4401 (AISI 316), and EN 1.4539 (AISI 904L) materials. It is suitable for applications such as groundwater extraction, irrigation, mining, fountains, and offshore operations.

Manufacturer	Grundfos
Part Number	12B60030
Pump speed on which pump data are based	3450 rpm
Rated flow	88.1 US gpm
Rated head	1155 ft
Stages	30
Number of reduced-diameter impellers	NONE
Approvals	CULDWUS,CCSAUS
Approvals for drinking water	PROP65
Curve tolerance	ISO9906:2012 3B
Return valve	YES
Pump	Stainless steel, EN 1.4301, AISI 304
Impeller	Stainless steel, EN 1.4301, AISI 304
Maximum operating pressure	870.23 psi
Maximum outlet pressure	496.03 psi
Type of connection	NPT(F)
Size of connection	3 inch
Motor diameter	6 inch
Minimum borehole diameter	5.71 in
Pumped liquid	Water
Liquid temperature range	5 .. 140 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Motor flange design	Grundfos
Power (P2) required by pump	40 HP
Start. method	direct-on-line
Minimum efficiency index, MEI ≥	-.--
DOE Pump Energy Index CL	0.82
Net weight	100 lb
Gross weight	176 lb
Shipping volume	9.32 ft³

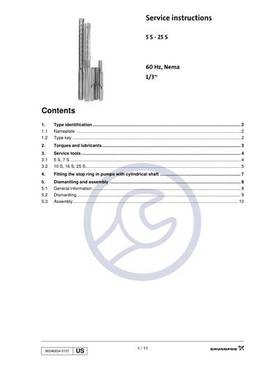

5 S to 25 S (Service Instructions)

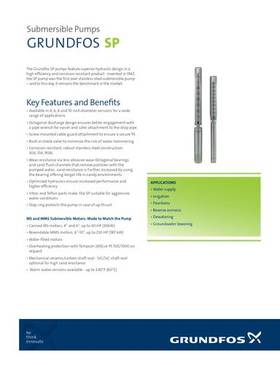

GRUNDFOS SUBMERSIBLES, SP PUMPS (Product brochure)

GRUNDFOS SMARTFLO (Product brochure)

SP (Data booklet)

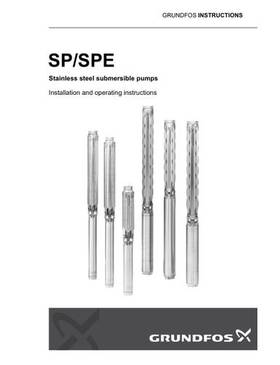

SP/SPE, Stainless steel submersible pumps, 4", 6", 8", and 10" (I & O instructions)

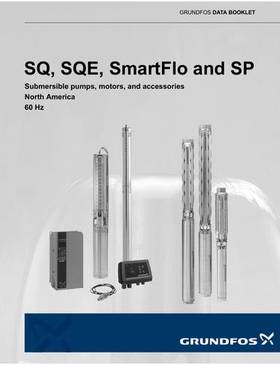

SQ, SQE, CU 331, and SP (Data booklet)

OPTIMIZED INDUSTRIAL SOLUTIONS (Product brochure)

Cathodic protection (Quick guide)

SmartFlo, Start-up guide for SP pumps (I & O instructions)

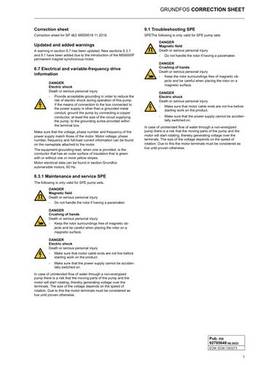

Correction sheet for SP and SPE
