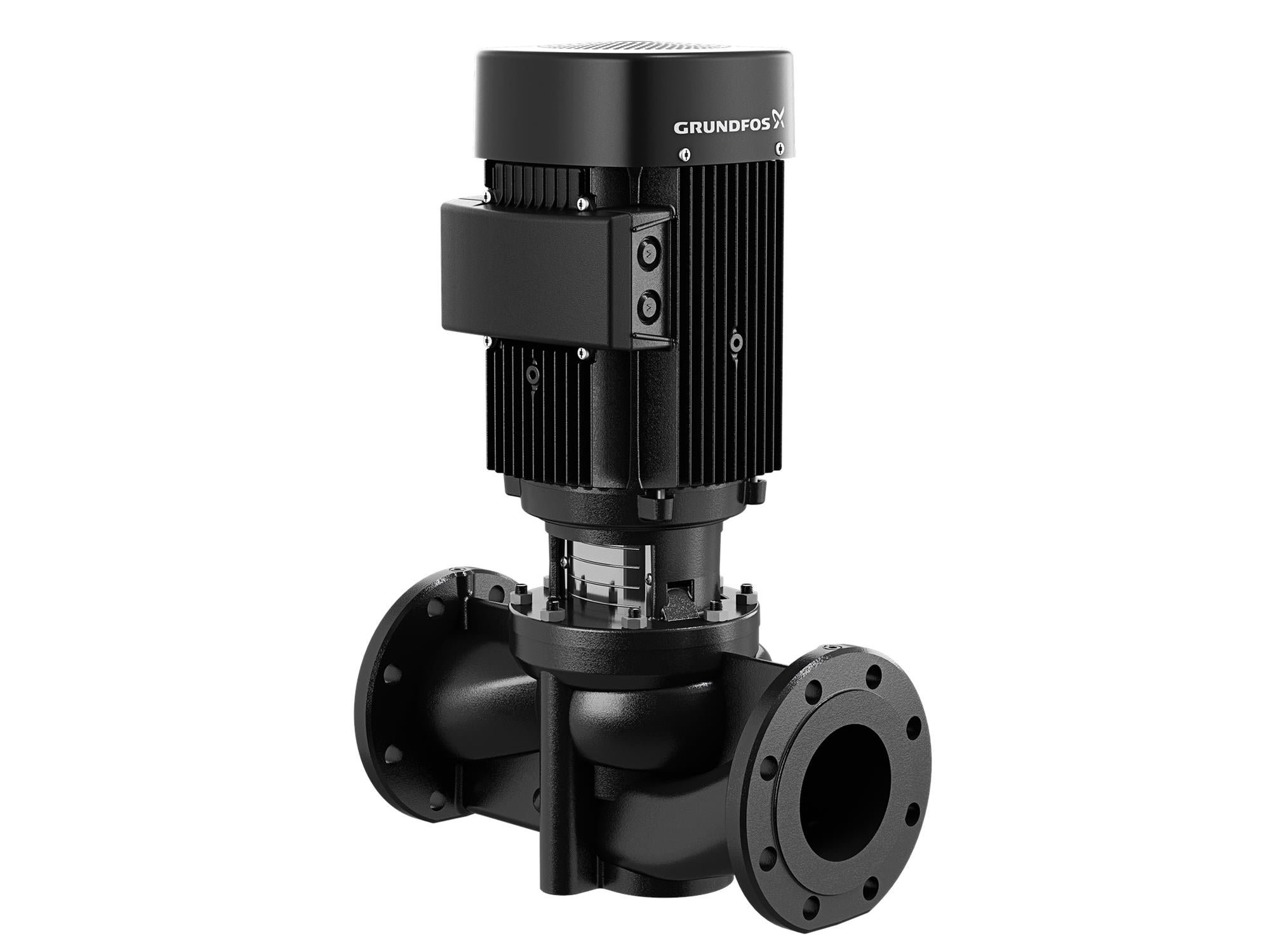

Grundfos 91122121, TP32-40/4B .33HP PEO Inline Pump

SKU: LSI9N01FI0 Part Number: 91122121

Price:
Sale price$3,008.95 Regular price$4,491.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This inline single-stage pump is a TP32-40/4B model with a .33HP motor, designed for hot water recirculation. It has a bronze pump housing and mechanical shaft seal, making it suitable for applications such as fertigation, chemigation, dosing, and various irrigation methods. The pump operates with fixed speed motors.

Specifications

Manufacturer Grundfos
Part Number 91122121
Rated flow 30.8 US gpm
Rated head 9.515 ft
Actual impeller diameter 3.39 in
Primary shaft seal BUBE
Curve tolerance ISO 9906:1999 Annex A
Pump housing Bronze, DIN W.-Nr. 2.1093
Impeller Stainless steel, DIN W.-Nr. 1.4301, AISI 304
Maximum operating pressure 145.04 psi
Flange standard USA
Pipe connection 1 1/4"
Pumped liquid Water
Liquid temperature range 5 .. 284 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Gross weight 46 lb
Country of origin US
Custom tariff no. 8413.70.2025

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
