Name: Grundfos 96293270, BM HP 46-5-R NBR Booster Module for Filtration
Brand: Grundfos
SKU: LSI9S5JZFM
Price: 54887.0 USD
Availability: OutOfStock

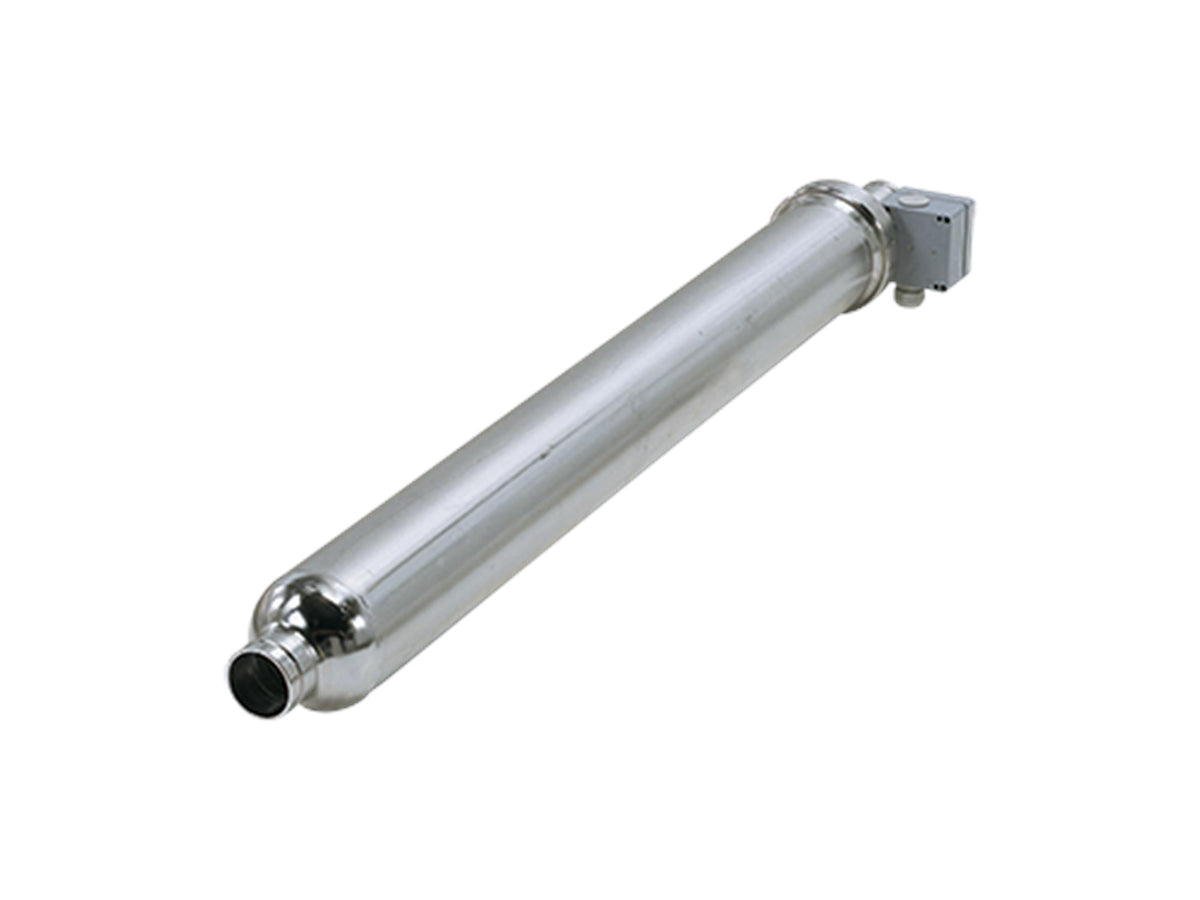

Grundfos 96293270, BM HP 46-5-R NBR Booster Module for Filtration

Roll over image to zoom in Click on image to zoom

This high pressure booster module is used for boosting and liquid circulation in systems under a high static pressure.

Manufacturer	Grundfos
Part Number	96293270
Rated flow	203 US gpm
Rated head	141.1 ft
Stages	5
Curve tolerance	ISO9906:2012 3B
Pump	Stainless steel, DIN W.-Nr. 1.4539, AISI 904L
Impeller	Stainless steel, EN 1.4539, AISI 904L
Motor	Stainless steel, DIN W.-Nr. 1.4539, AISI 904L
Code for rubber	NBR
Sleeve	Stainless steel, SAF 2205, EN 1.4462
Maximum operating pressure	1199.46 psi
Maximum permissible inlet pressure	1189.31 psi
Maximum outlet pressure	1189.31 psi
Pipe connection standard	PJE
Pipe connection	89 mm
Pumped liquid	Water
Maximum liquid temperature	104 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Rated power - P2	10 HP
Main frequency	50 Hz
Rated voltage	3 x 380-415 V
Service factor	1.0
Rated current	17.8-17.2 A
Rated speed	2840-2860-2870 rpm
Start. method	DOL
Enclosure class (IEC 34-5)	IP66
Minimum efficiency index, MEI ≥	0.40
Net weight	198 lb
Gross weight	290 lb

BM, BMhp (Data booklet)
