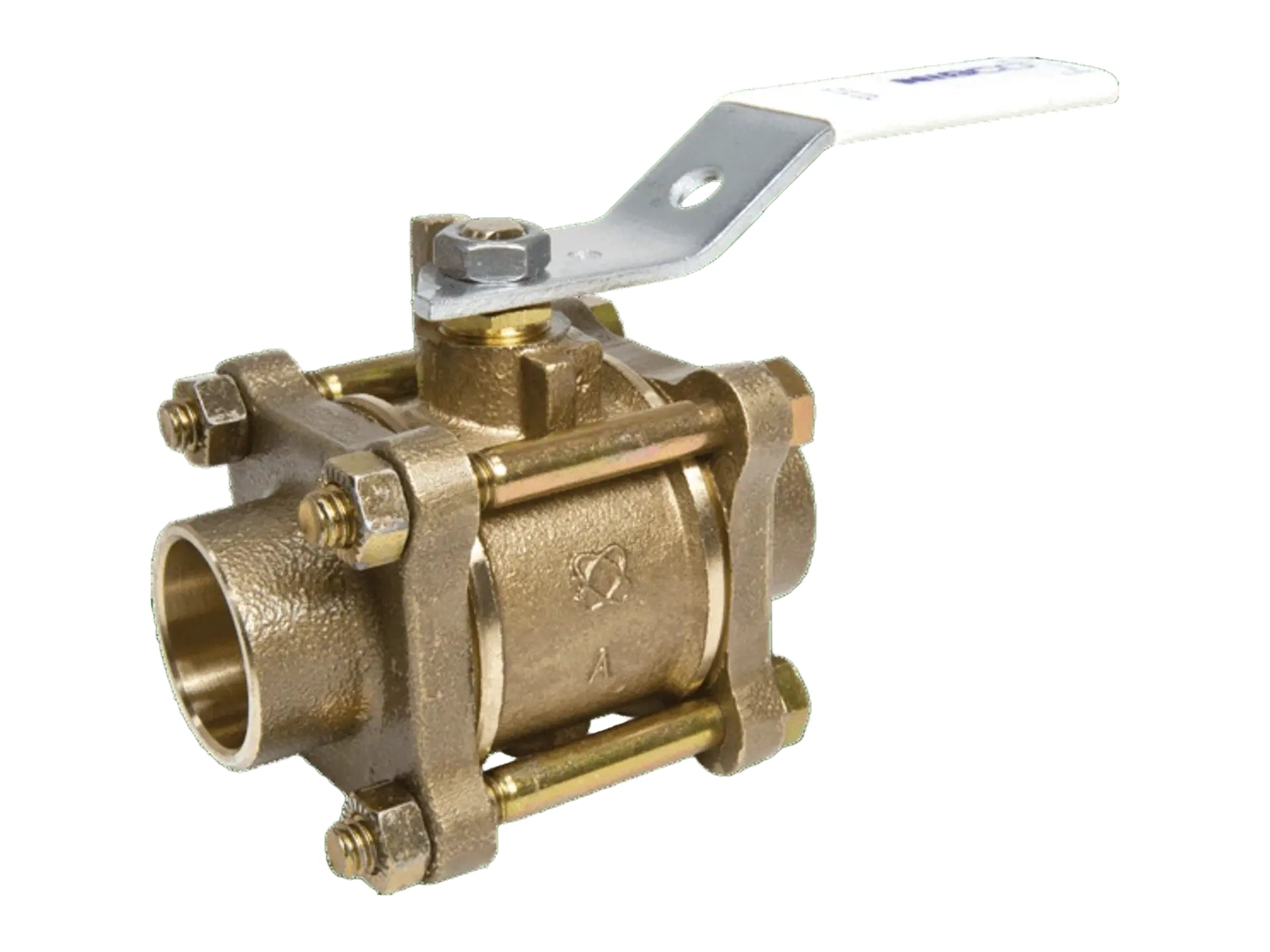

NIBCO S-595-Y-66-LF 1-1/2" LF Bronze LF Ball Valve NJ93H2C

SKU: LSI9WH3A86 Part Number: NJ93H2C Model: S-595-Y-66-LF

Price:
Sale price$439.95 Regular price$846.00

Save 48% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

NIBCO full port ball valve is constructed of high quality lead-free dezincification-resistant (DZR) performance bronze silicon alloy per ASTM specifications. The valve features solder ends for easy installation. The lead-free ball valve is recommended for applications that deliver water for human consumption, including commercial and residential construction. NIBCO ball valve provides ease of operation with quarter-turn (90°) open to close. The lead-free ball valve provides bubble-tight shutoff at 600 psi. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO valves are backed by the NIBCO INC. 5-year 125% limited warranty.

Features

  • Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure
  • Full port
  • Repairable design
  • Stainless steel trim
  • Blowout-proof stem
  • PTFE seats
  • White handle for easy lead-free identification
  • NIBCO double-oval lead-free body marking
  • Solder end connections
  • Dezincification resistant
  • Lead-free
  • Conforms to MSS SP-110
  • NSF/ANSI/CAN-61 and 372

Specifications

Manufacturer NIBCO
Part Number NJ93H2C
Model S-595-Y-66-LF
Application(s) Lead-Free
System Use Lead-Free
Basic Material Lead-Free Bronze
Nominal Pipe Size 1-1/2"
Type of Valve Ball
Ball Port Style Full Port
Ball Material Stainless Steel
Ball Stem Material Stainless Steel
Valve End Connection Type Female Solder Cup
End Connection Solder
Ball Operator CS Standard Lever Handle
Turns Operations Quarter-Turn
Stem Material Stainless Steel
Seat Seal Material PTFE
Valve Trim Package Stainless Steel Trim
Old Material Number S595Y66LF112
UPC 039923319951
Length 9.01"
Width 4.82"
Height 3.02"
Potable Water Code LL Compliant NSF/ANSI 372
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
