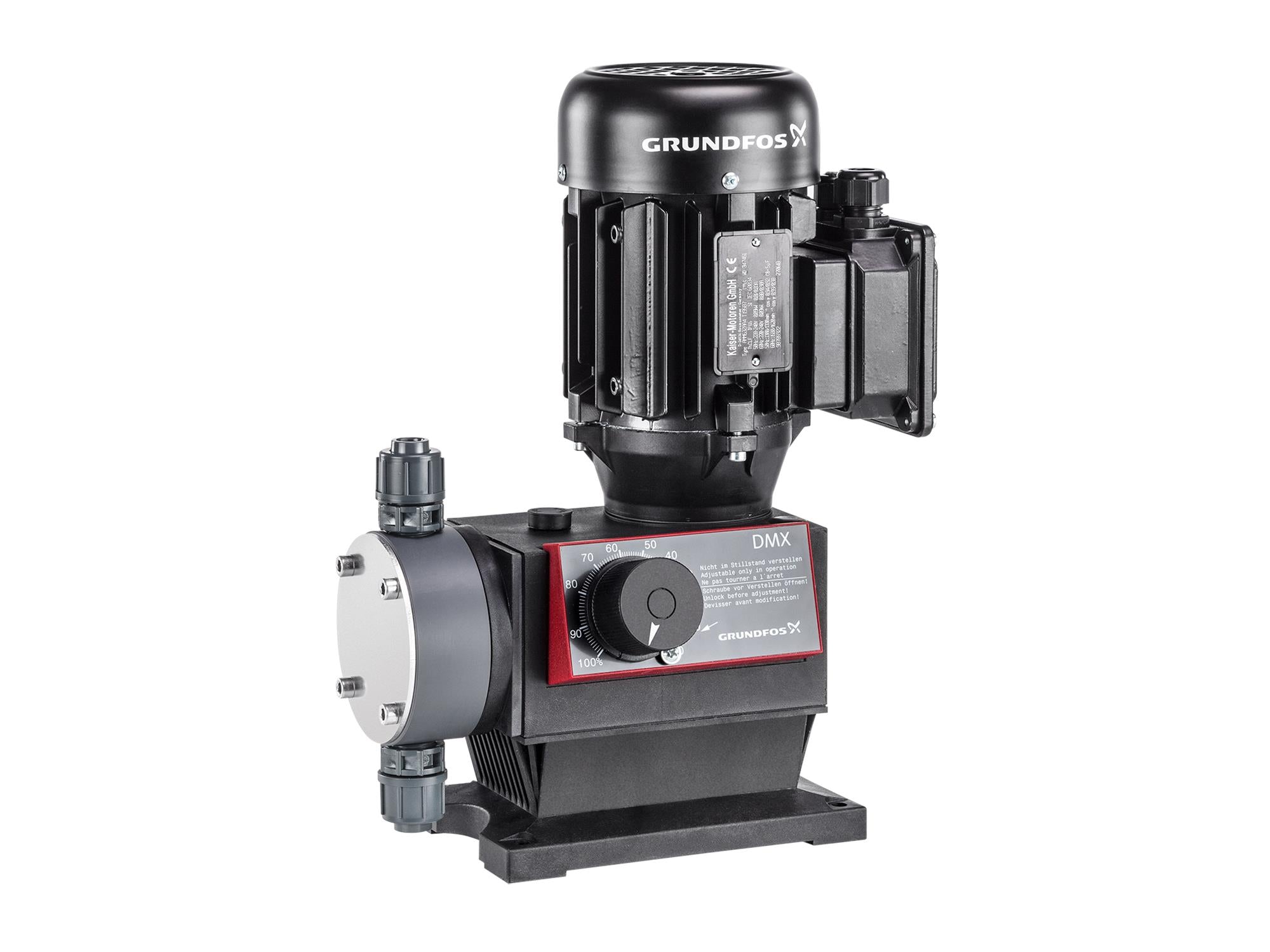

Grundfos 99773167, Diaphragm Dosing Pump with External Motor

SKU: LSIA5KVBTA Part Number: 99773167

Price:
Sale price$5,967.95

Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This diaphragm dosing pump with an external motor is suitable for applications such as commercial water disinfection, industrial cooling, and process liquids transfer.

Specifications

Manufacturer Grundfos
Part Number 99773167
Nominal flow rate at 60 Hz 11.1 US gal/hour
Number of dosing heads 1
Approvals CE,EAC,CNROHSEX,PROP65
Non return valve type, inlet pump 1 Standard
Non return valve type, outlet pump 1 Standard
Max viscosity 100 mPas
Pump housing Thermoplastic
Dosing head, pump 1 Plastic, PVC
Valve ball Composite, PTFE
Valve seat Composite, PTFE
Valve gasket PTFE, Composite
Max operating pressure at 60 Hz 145.04 psi
Maximum permissible inlet pressure 0 psi
Type of inlet connection NPT(M)
Type of outlet connection NPT(M)
Size of suction port 1/2 inch
Size of outlet port 1/2 inch
Pumped liquid Water
Liquid temperature range 32 .. 104 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Power input P1 0.121 HP
Main frequency 60 Hz
Max. frequency 60 Hz
Rated voltage 1 x 110/120 V
Enclosure class (IEC 34-5) IP65
Cable included (Yes/No) Y
Power plug US plug
Type of connector Type B (NEMA 5-20)
Type of control variant AR Electronic
Frequency converter Not prepared for VFD
Net weight 15.4 lb
Gross weight 21.1 lb
Shipping volume 1.41 ft³
Diaphragm Leakage Detection N
Country of origin DE
Custom tariff no. 8413.50.0050

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
