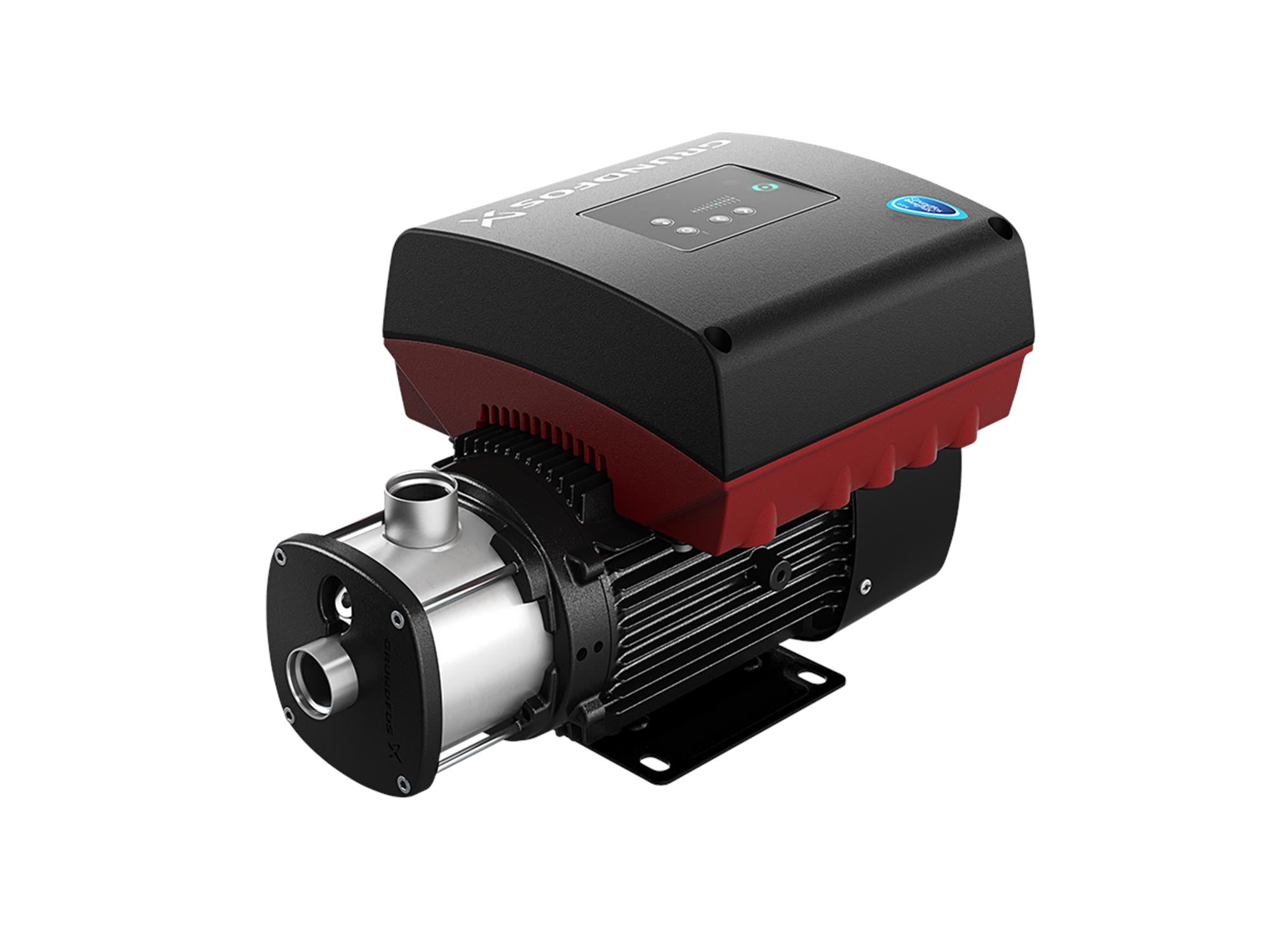

Grundfos 99383179, CME 25-1 A-S-G-V-AQQV V-A-D-N End Suction Pump

SKU: LSIADQDB0S Part Number: 99383179

Price:
Sale price$5,503.95 Regular price$8,599.00

Save 36% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This horizontal end-suction pump is compact and quiet, with an integrated frequency converter and intelligent features. Its modular design allows for customized solutions, making it suitable for applications such as water treatment fertigation, chemigation, dosing, controls and digital groundwater management, as well as drip, micro spray, and soaker hose irrigation.

Specifications

Manufacturer Grundfos
Part Number 99383179
Rated pump speed 3480 rpm
Rated flow 116 US gpm
Rated head 62.56 ft
Impellers 1
Code for shaft seal AQQV
Approvals CE,EAC,CURUS,UKCA
Approvals for drinking water WRAS,ACS,NSF61,UBA
Curve tolerance ISO9906:2012 3B
Pump version A
Pump housing Stainless steel, EN 1.4401, AISI 316
Impeller Stainless steel, EN 1.4401, AISI 316
Material code G
Code for rubber V
Range of ambient temperature -4 .. 131 °F
Maximum operating pressure 232.06 psi
Max pressure at stated temperature 232 psi / 194 °F, 232 psi / 194 °F
Type of connection NPT(F)
Size of suction port 2 inch
Size of outlet port 2 inch
Outlet position 12
Connect code S
Pumped liquid Water
Liquid temperature range -4 .. 194 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard NEMA
Frame size 112C
Rated power - P2 5 HP
Main frequency 50 / 60 Hz
Suitable for 50/60 Hz (Yes/No) Y
Rated voltage 3 x 200-240 V
Service factor 1.15
Rated current 13.2-10.9 A
Rated speed 3400-4000 rpm
Enclosure class (IEC 34-5) IP55
Insulation class (IEC 85) F
Frequency converter Built-in
Terminal box position 12
Minimum efficiency index, MEI ≥ 0.41
Net weight 72.2 lb
Gross weight 79.9 lb
Country of origin US
Custom tariff no. 8413.70.2040

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
