Grundfos 99612820, LC 241 Level Controller DOL 3x230/460/575 PO

SKU: LSIAJDSPF3 Part Number: 99612820

Price:
Sale price$4,079.95 Regular price$4,363.00

Save 6% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

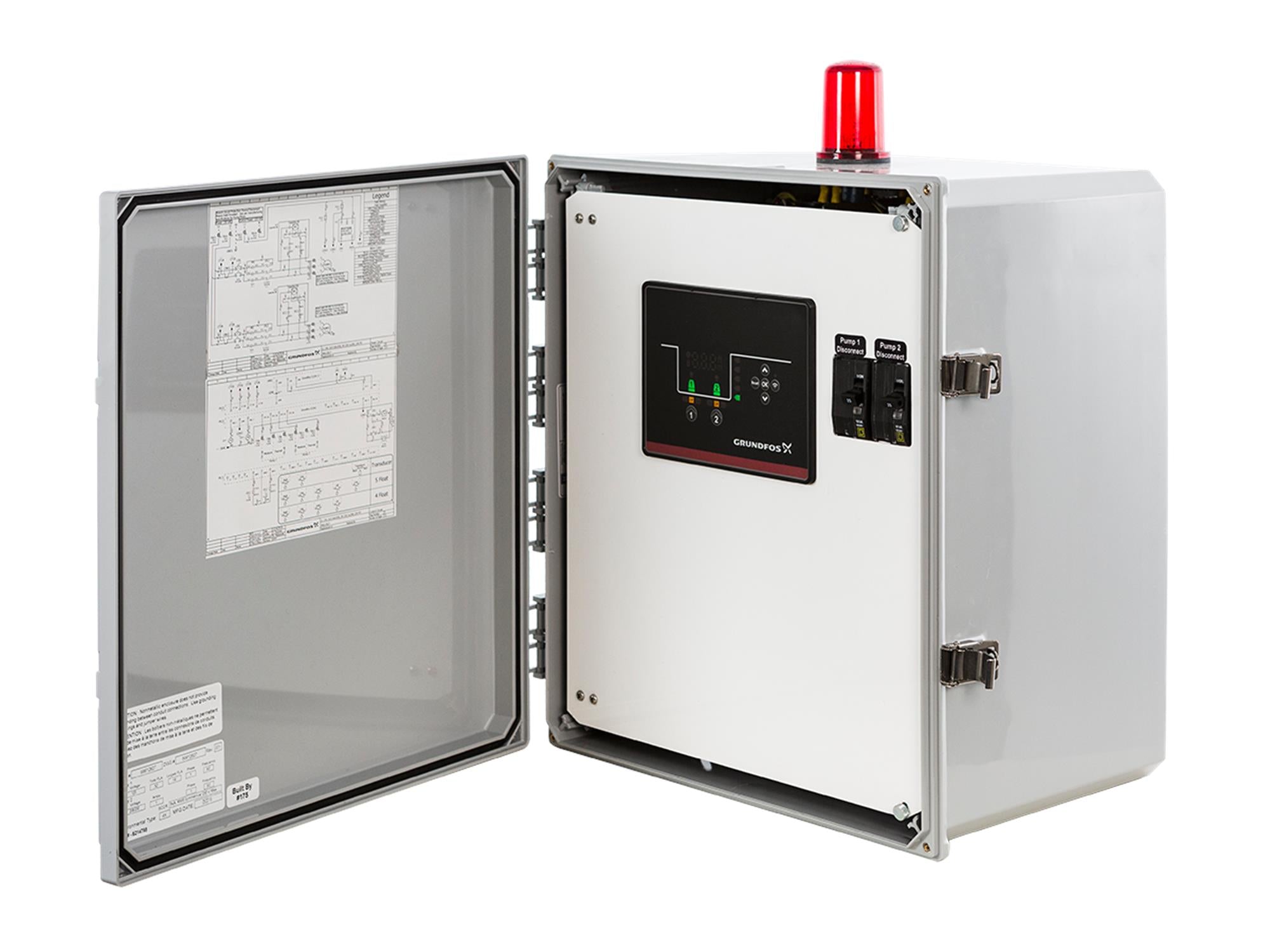

This control panel is designed for monitoring and controlling one or two pumps in wastewater pumping systems, supporting up to 72 Amp. It offers modularity and customization with a metal or plastic cabinet solution, suitable for applications such as commercial wastewater, drinking water treatment, and flood control.

Specifications

Manufacturer Grundfos
Part Number 99612820
Approvals CULUS
Number of pumps 2
Cabinet Plastic
Range of ambient temperature 32 .. 104 °F
Cabinet mounting Wall mounting
Earth connection PE
Main frequency 60 Hz
Rated voltage 3 x 230-575 V
Rated current 3-12 A
Capacitor size - run N/A µF
Capacitor size - start N/A µF
Start. method Direct-on-line (DOL)
Enclosure class (IEC 34-5) IP56
Back-up fuse required 35 A
Communication interface module (Yes/No) N
Current measurement (Yes/No) Y
IO 241 (Yes/No) N
Mains switch (Yes/No) N
Electrode-relay (Yes/No) N
Net weight 30 lb
Gross weight 32.5 lb
Shipping volume 3.35 ft³
Sales region Namreg
Country of origin US
Custom tariff no. 8537.10.6000

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
