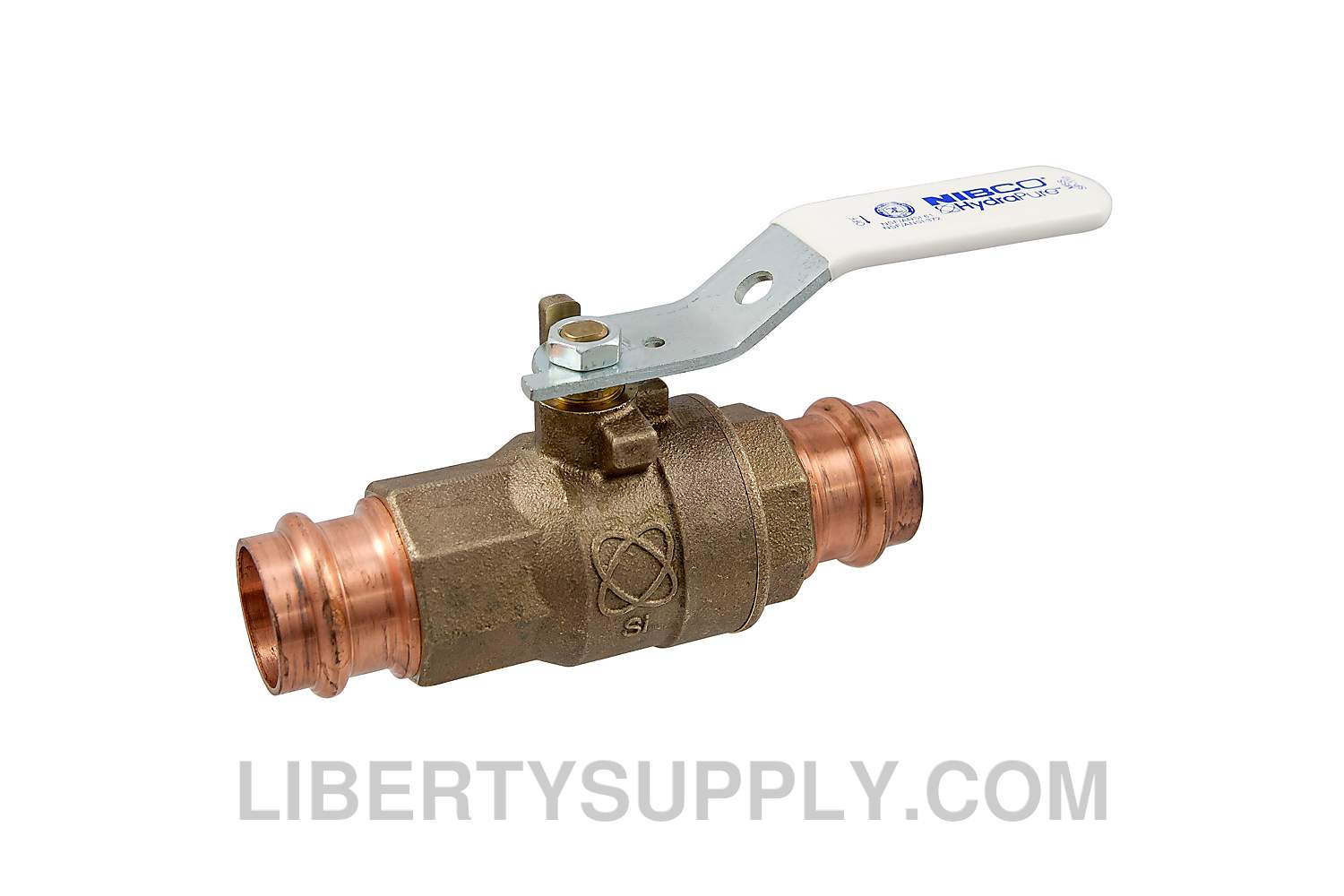

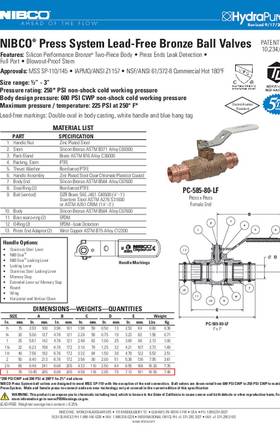

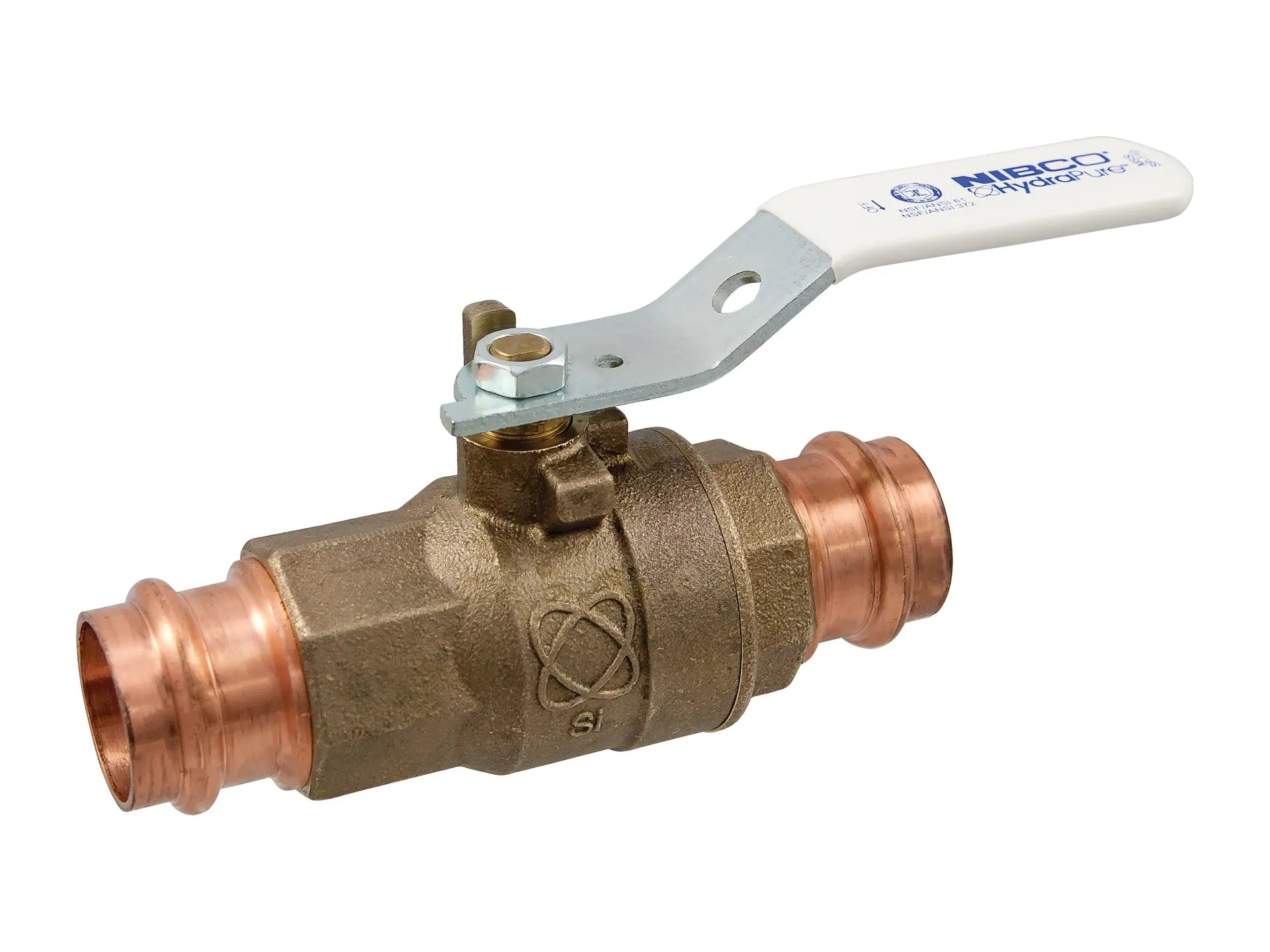

This NIBCO Press System ball valve body is manufactured from lead-free HydraPure Performance Bronze alloy and is dezincification resistant. The ball valve is designed with press-to-connect copper end connections with an inboard bead and EPDM O-ring for quick and easy copper-to-copper joinery. Properly applying pressure from a press-fit tool tightens the O-ring onto the tube, ensuring a clean, permanent, watertight seal in seconds, with no flame, solder, or flux. This NIBCO Press System is user-friendly, quick, and easy to install. When properly crimped, a unique "N" witness mark is clearly visible. The lead-free HydraPure Performance Bronze ball valve is specifically designed for use in systems that deliver water for human consumption. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. NIBCO Press System applies the proven performance of press technology to NIBCO valves and fittings - the industry's most specified flow control products. This NIBCO Press System features a full range of precision-engineered copper fittings, bronze valves, accessories, pressing tools, jaws, and chains. NIBCO Press System valves are backed by a 5-year limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO is the preferred brand in the industry.
Features
- Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
- Maximum service temperature 250°F
- Copper-to-copper connections
- Full port
- Blowout-proof stem
- Reinforced PTFE seat rings
- Press x press female end connections
- Press leak-detection feature
- Multiple handle options, including NIB-Seal®
- Dezincification resistant
- Lead-free
- Conforms to MSS SP-110
- NSF/ANSI-61-8 Commercial Hot 180°F (includes Annex F and G)
- NSF/ANSI-372
- IAPMO/ANSI Z1157
