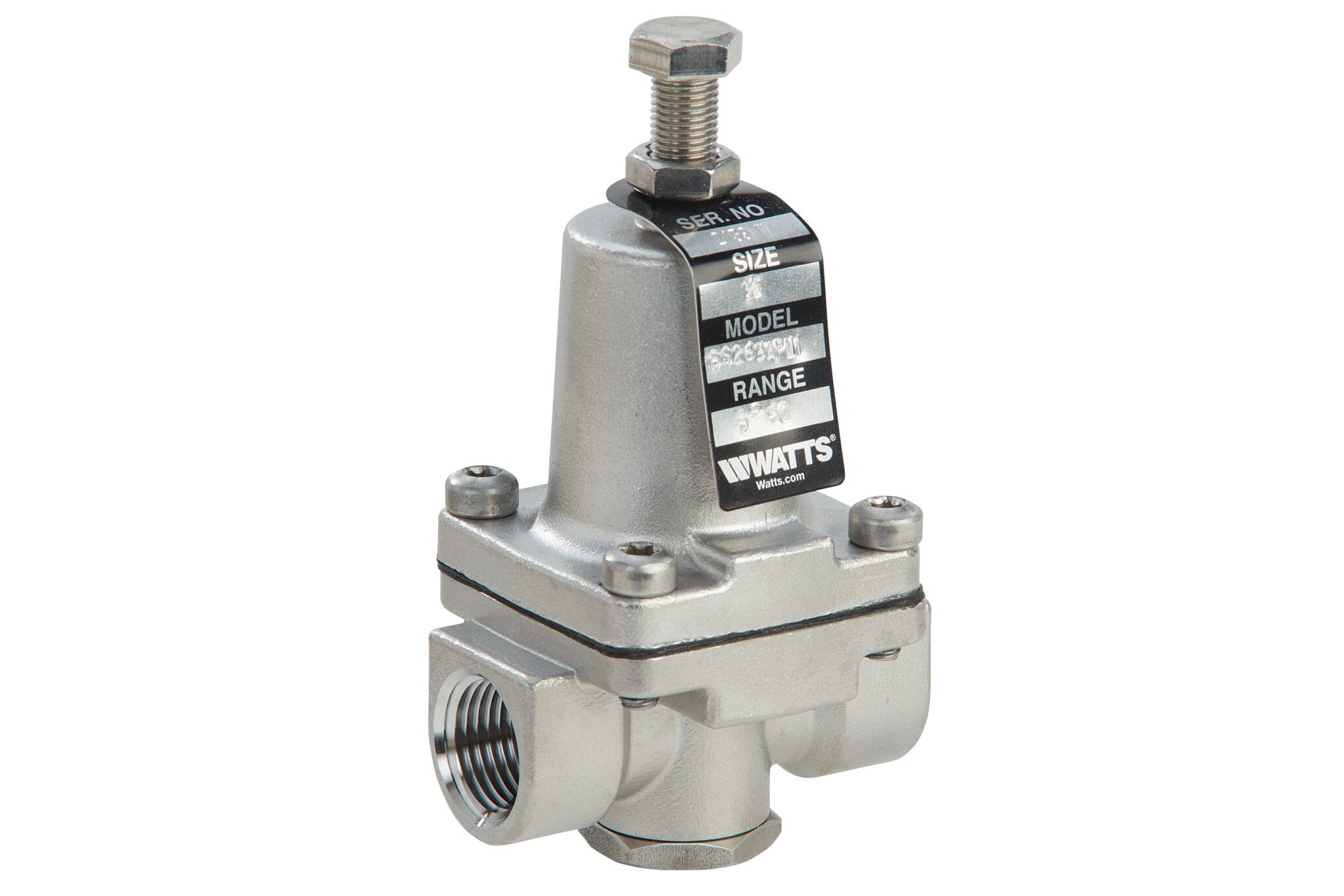

This 1/2" compact 3-way small water pressure regulator is designed for deionized water, chemical solutions, high purity water purification systems, and low-pressure steam 15 psi (1.0 bar) applications. It has an oversized orifice and is ideally used on beverage dispensing and paint spraying equipment, ice cube machines, humidifiers, drinking fountains, and other small process applications. It consists of a compact stainless steel body and spring cage, compact stainless steel adjusting screw, NPT threaded female connections, three-way low-pressure gauge port, Buna-N compact stainless steel disc, and a reinforced Buna-N diaphragm. Its temperature range is 33 to 120°F (0.5 to 49°C). Its reduced pressure range is 1 to 25 psi (0.1 to 1.8 bar), and the pressure is set at 10 psi (0.7 bar).
Features
- Rugged investment cast stainless steel body and cage
- 1/4" (8mm) low-pressure gauge port
- Oversized orifice
- Stainless steel adjusting screw
- NPT threaded female inlet and outlet connections
- Temperature range is 33°F to 120°F (0.5°C to 49°C)
- Maximum working pressure is 400 psi (27.6 bar)
