Description

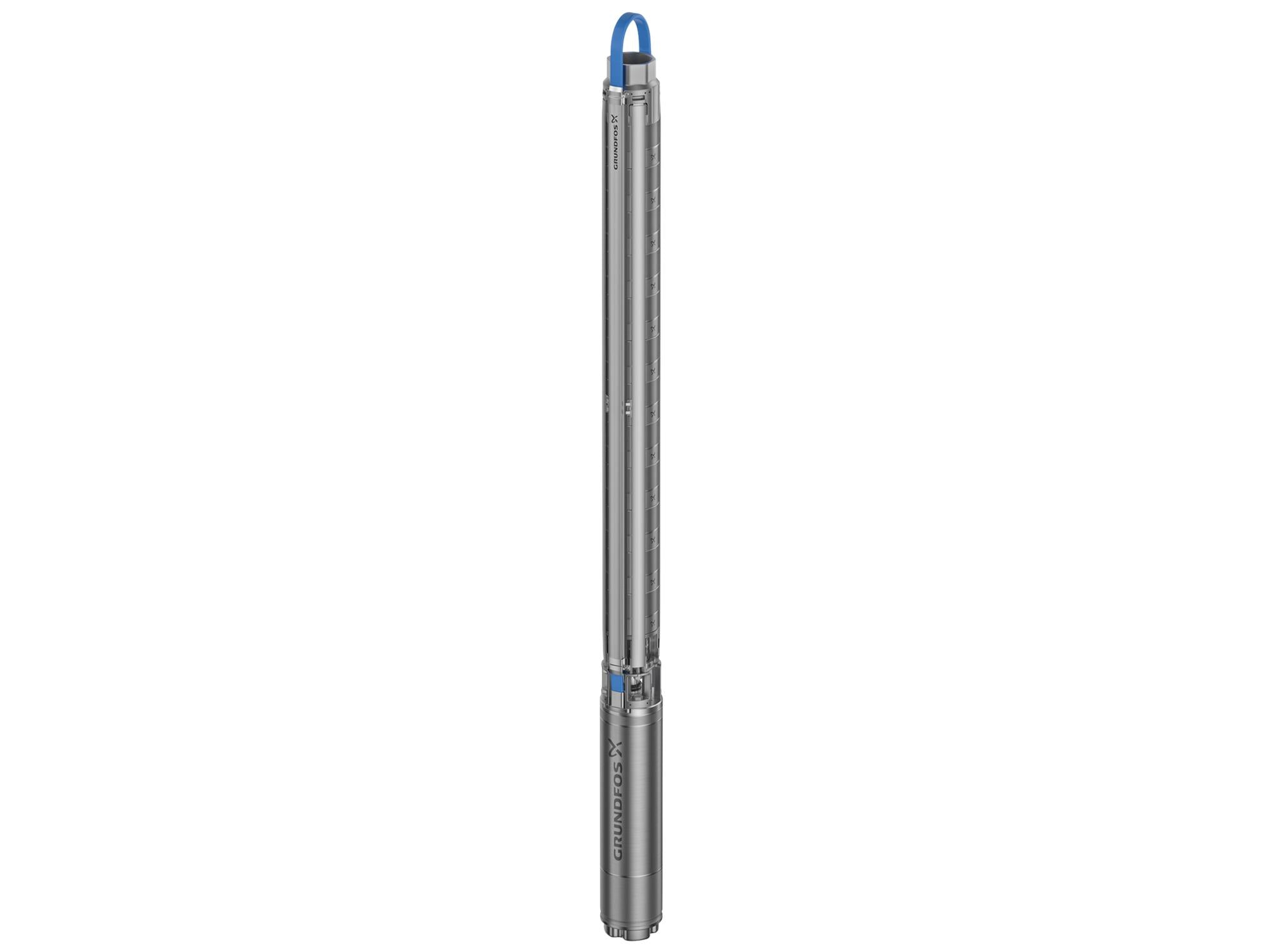

This submersible pump is a multi-stage, speed-regulated device designed for raw water supply, groundwater lowering, and pressure boosting. It is constructed entirely of stainless steel and suitable for both horizontal and vertical installations. The pump handles clean, thin, non-aggressive liquids without solid particles or fibers and includes a built-in non-return valve. It operates with a 3-phase synchronous high-efficiency permanent magnet motor requiring a frequency drive to start and regulate speed.
Specifications
Manufacturer | Grundfos |
---|---|
Part Number | 92673202 |
Pump speed on which pump data are based | 3600 rpm |
Rated flow | 159 US gpm |
Rated head | 505.3 ft |
Stages | 12 |
Number of reduced-diameter impellers | NONE |
Shaft seal for motor | SiC/SiC NBR |
Approvals | CULDWUS,CCSAUS |
Approvals for drinking water | PROP65 |
Curve tolerance | ISO9906:2012 3B |
Motor version | T60 |
Return valve | YES |
Pump | Stainless steel, EN 1.4301, AISI 304 |
Impeller | Stainless steel, EN 1.4301, AISI 304 |
Motor | Stainless steel, EN 1.4301, AISI 304 |
Maximum operating pressure | 870.23 psi |
Maximum outlet pressure | 303.13 psi |
Type of connection | NPT(F) |
Size of connection | 3 inch |
Motor diameter | 6 inch |
Pumped liquid | Water |
Liquid temperature range | 5 .. 140 °F |
Selected liquid temperature | 68 °F |
Density | 62.29 lb/ft³ |
Motor type | PM |
Motor flange design | Grundfos |
Rated power - P2 | 25 HP |
Power (P2) required by pump | 24.8 HP |
Main frequency | 60 Hz |
Rated voltage | 3 x 410-480 V |
Motor frequency | 120 Hz |
Service factor | 1.15 |
Rated current | 34.2 A |
Rated speed | 1650-3600 rpm |
Motor efficiency at full load | 93 % |
Number of poles | 4 |
Start. method | Direct-on-line (DOL) |
Enclosure class (IEC 34-5) | IP68 |
Insulation class (IEC 85) | F |
Built-in motor protection | NONE |
Thermal protec | external |
Built-in temperature transmitter | No |
Number of cables | 1 |
Windings | Enamelled |
Rpm related to frequency | 3600 rpm at 120 Hz |
Frequency converter | VFD IPM type required |
DOE Pump Energy Index CL | 0.91 |
Net weight | 174 lb |
Gross weight | 267 lb |
Shipping volume | 8.93 ft³ |
Sales region | Namreg |
Country of origin | US |
Custom tariff no. | 8413.70.21 |

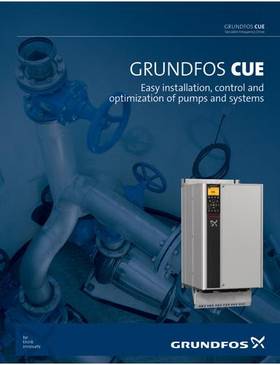

Recommended CUE (IP20) | 99619019 |
Recommended Sine wave filter (IP20) | 92617587 |
