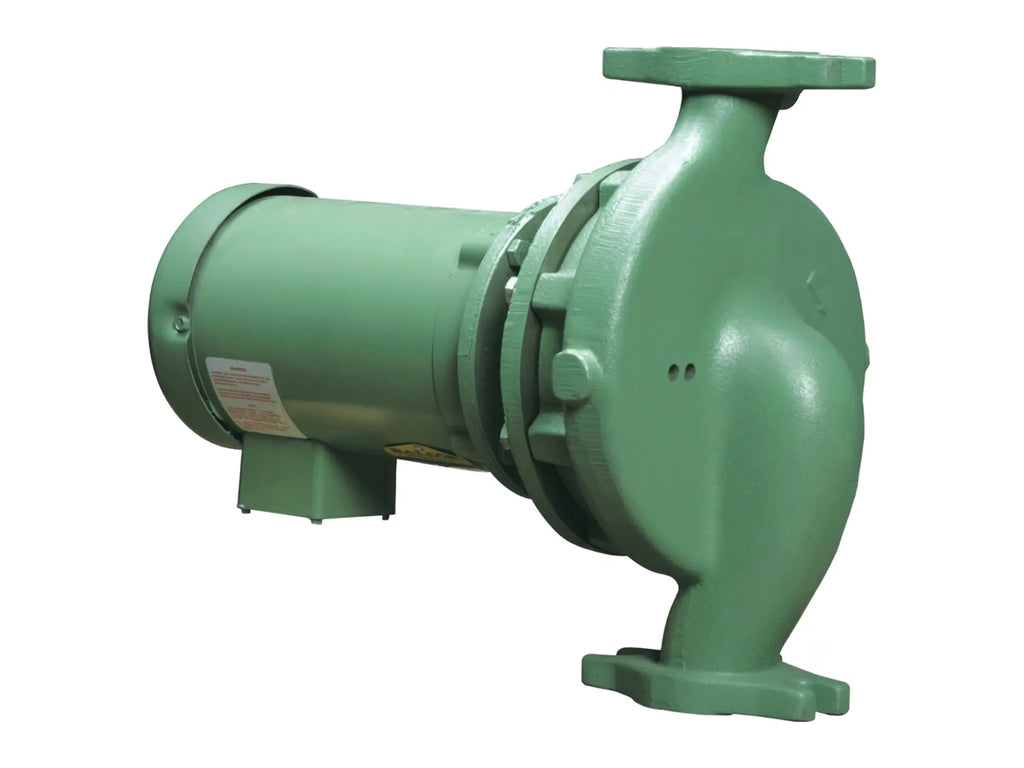

This close-coupled in-line pump has 2-inch suction and discharge ports with a 6.15-inch nominal diameter impeller. The pump uses cast iron for the casing and bracket, combined with a stainless steel impeller and a bronze face plate. A seal composed of a ceramic seat, carbon rotor, and EPT rubber manages fluid containment at temperatures up to 250°F. This configuration allows for either vertical or horizontal installation and includes companion flanges to assist with system integration. The casing includes pressure tappings for differential readings and relies on the system piping for support, which reduces external mechanical strain.
The system is equipped with a 1.5 HP, 1750 RPM ODP motor, wired for 115/208-230/60/1 power. Maintenance-free operation is supported by permanently sealed, grease-lubricated motor ball bearings. Utilizing a rear pull-out design, the assembly permits complete removal of the motor and rotating components for servicing without disturbing the connected piping layout.
