Grundfos 97626239, Auto Coupling Set 3 Inch/4 Inch ANSI CI

SKU: LSIBTJYNWP Part Number: 97626239

Price:
Sale price$1,444.95 Regular price$1,445.00

Save 0% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

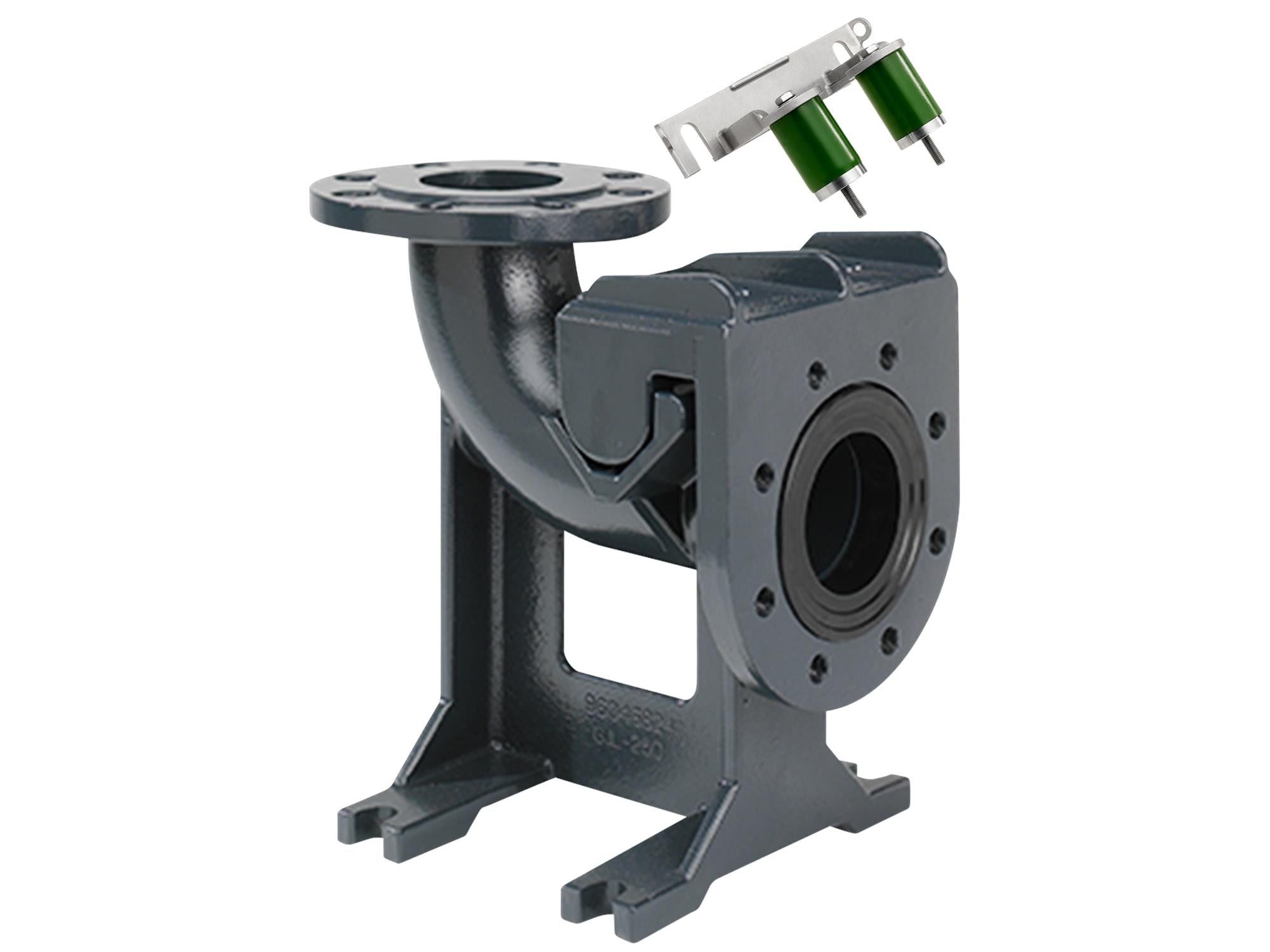

This auto coupling set is designed for use with submersible pumps and supports both dry installation in vertical and horizontal orientations. It includes a 3"/4" ANSI CI configuration, making it suitable for wastewater accessory applications.

Specifications

Manufacturer Grundfos
Part Number 97626239
Material Cast iron, EN-GJL-250, ASTM A48 Class 250B
Surface treatment Powder coated
Gasket Rubber, NBR
Maximum operating pressure 145.04 psi
Type of inlet connection ANSI
Type of outlet connection ANSI
Size of suction port 3 inch
Size of outlet port 4 inch
Flange pressure class Class 150
Flange standard ANSI-B 16.5
Number of anchor bolts 0
Number of base units 1
Number of washers 0
Number of nuts 8
Number of gaskets 1
Number of profile gaskets 1
Number of guide claws 1
Number of screws 2
Number of guide rail holders 1
Net weight 127 lb
Gross weight 127 lb
Shipping volume 5.93 ft³
Fits the following products SE/SL/S
Country of origin PL
Custom tariff no. 7307.22.1000

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
