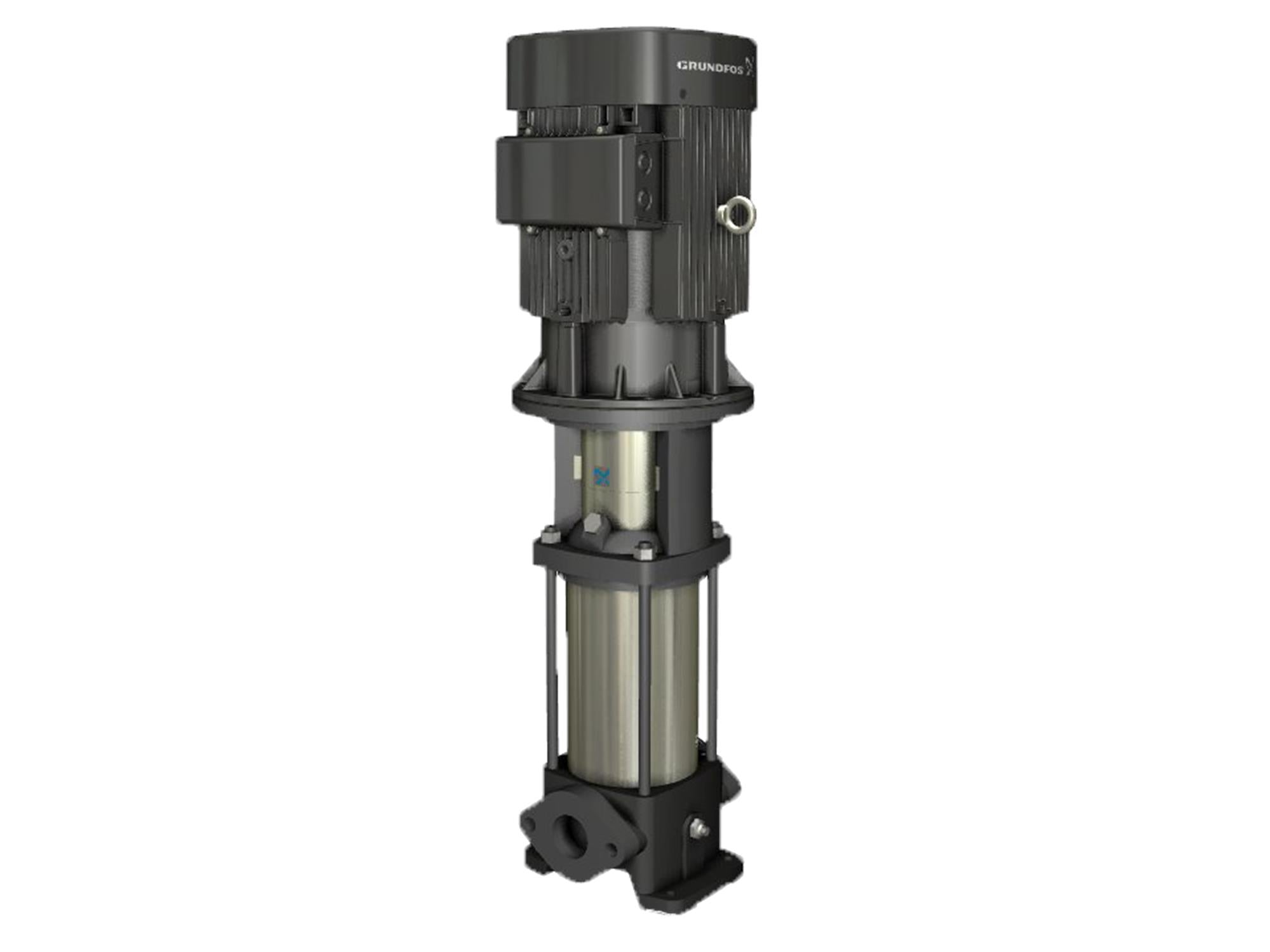

Grundfos 98706906, CR3-4 A-A-A-V-HUBV Vertical Multistage Pump

SKU: LSIBV0K7TW Part Number: 98706906

Price:
Sale price$1,745.95 Regular price$2,605.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This vertical multistage centrifugal pump has suction and discharge ports on the same level.

Specifications

Manufacturer Grundfos
Part Number 98706906
Rated pump speed 3447 rpm
Rated flow 15.4 US gpm
Rated head 90.56 ft
Maximum head 124.3 ft
Stages 4
Impellers 4
Number of reduced-diameter impellers 0
Low NPSH N
Pump orientation Vertical
Shaft seal arrangement Single
Code for shaft seal HUBV
Approvals CE,EAC,UKCA,CURUS,SEPRO
Approvals for drinking water WRAS
Curve tolerance ISO9906:2012 3B
Pump version A
Base Cast iron, EN 1561 EN-GJL-200, ASTM A48-25B
Impeller Stainless steel, EN 1.4301, AISI 304
Material code A
Code for rubber V
Maximum ambient temperature 140 °F
Maximum operating pressure 232.06 psi
Max pressure at stated temperature 232 psi / 194 °F, 232 psi / 176 °F
Type of connection Oval / Rp
Size of suction port 1 inch
Size of outlet port 1 inch
Pressure rating for connection PN 16
Flange size for motor FT85
Connect code A
Pumped liquid Water
Liquid temperature range 32 .. 194 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard IEC
Motor type 71BA
Rated power - P2 0.75 HP
Power (P2) required by pump 0.75 HP
Main frequency 60 Hz
Rated voltage 3 x 220-255D/380-440Y V
Rated current 2,15-2,05/1,25-1,20 A
Starting current 500-600 %
Cos phi - power factor 0.85-0.76
Rated speed 3390-3460 rpm
IE Efficiency class NEMA Premium / IE3 60Hz
Motor efficiency at full load 76.8 %
Motor efficiency at 3/4 load 83.0 %
Motor efficiency at 1/2 load 82.5-79.5 %
Number of poles 2
Enclosure class (IEC 34-5) 55 Dust/Jetting
Insulation class (IEC 85) F
Built-in motor protection NONE
Frequency converter None
Pressure sensor N
Minimum efficiency index, MEI ≥ 0.70
Net weight 40.4 lb
Gross weight 46.2 lb
Shipping volume 1.91 ft³
