Description

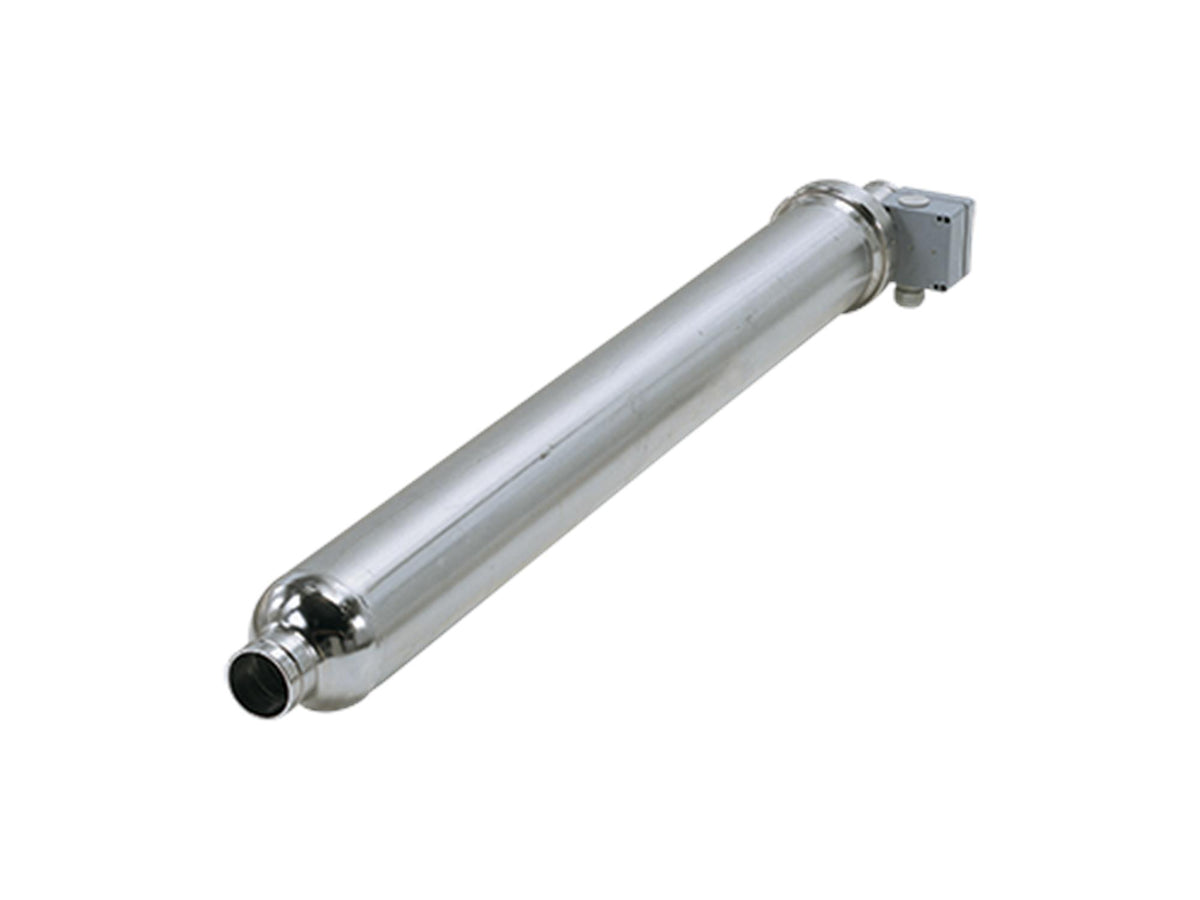

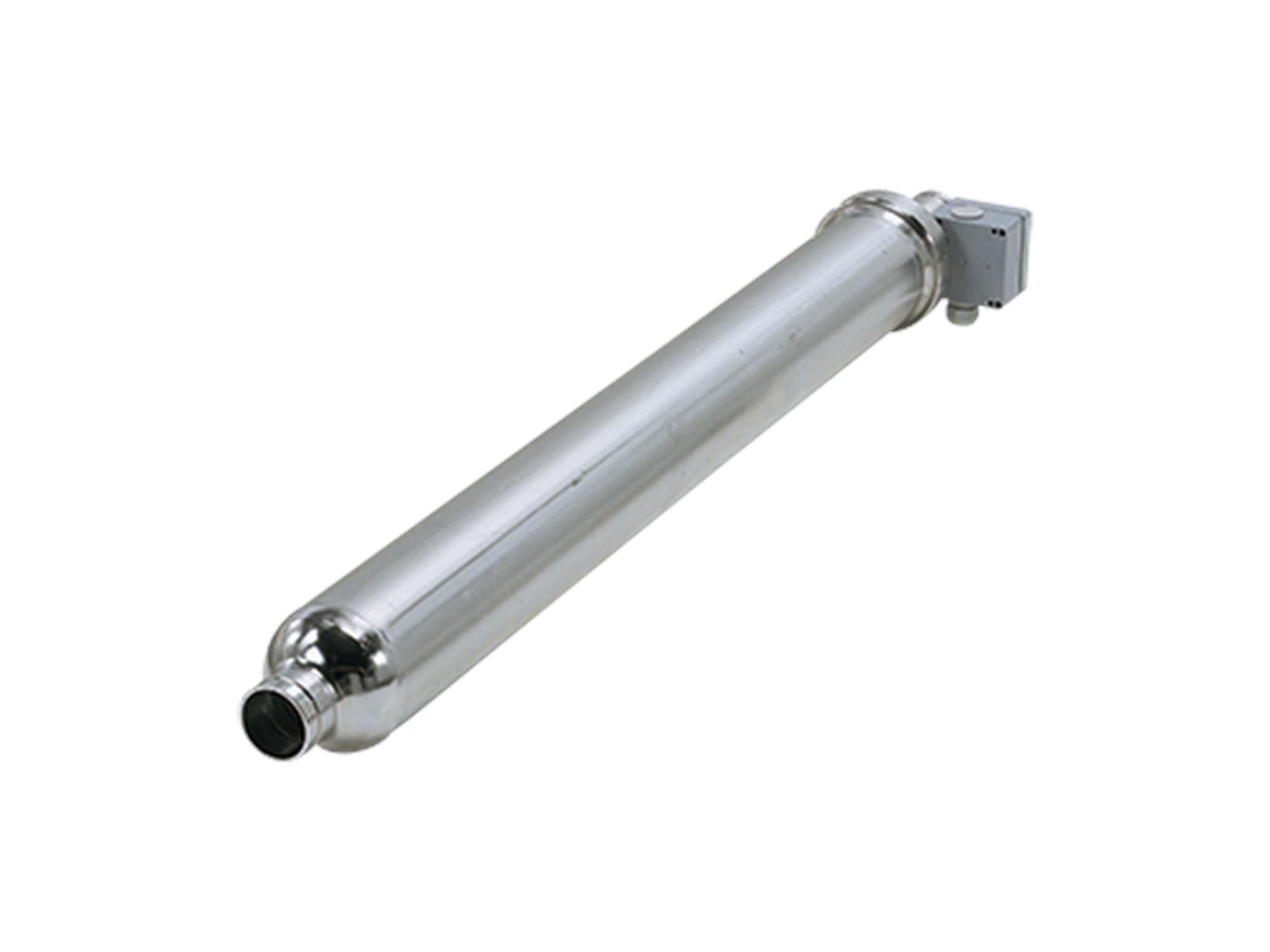

This encapsulated pump is a modified standard submersible model designed for industrial filtration applications and water supply. It operates with an asynchronous submersible squirrel-cage motor, suitable for use in drinking water treatment, desalination, and industrial water supply and transfer.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 15DO3604 |
| Stages | 4 |
| Curve tolerance | ISO 9906:1999 Annex A |
| Pump | Stainless steel, DIN W.-Nr. 1.4301, AISI 304 |
| Impeller | Stainless steel, 1.4301, AISI 304 |
| Motor | Stainless steel, DIN W.-Nr. 1.4301, AISI 304 |
| Code for rubber | NBR |
| Sleeve | Stainless steel, 304, 1.4301 |
| Maximum permissible inlet pressure | 725.19 psi |
| Maximum outlet pressure | 1160.3 psi |
| Pipe connection standard | PJE |
| Pipe connection | 89 mm |
| Pumped liquid | Water |
| Maximum liquid temperature | 104 °F |
| Selected liquid temperature | 68 °F |
| Density | 62.29 lb/ft³ |
| Rated power - P2 | 12.5 HP |
| Main frequency | 60 Hz |
| Rated voltage | 3 x 440-460-480 V |
| Service factor | 1.15 |
| Rated current | 21.2-20.6-20.4 A |
| Maximum current consumption | 21.2 A |
| Starting current | 370-400-430 % |
| Cos phi - power factor | 0.84-0.82-0.80 |
| Start. method | direct-on-line |
| Enclosure class (IEC 34-5) | IP54 |
| Thermal protec | external |
| Built-in temperature transmitter | yes |
| Minimum efficiency index, MEI ≥ | 0.50 |
| Net weight | 187 lb |
| Gross weight | 267 lb |
| Shipping volume | 11.3 ft³ |
| Country of origin | DK |
| Custom tariff no. | 8413.70.2004 |
