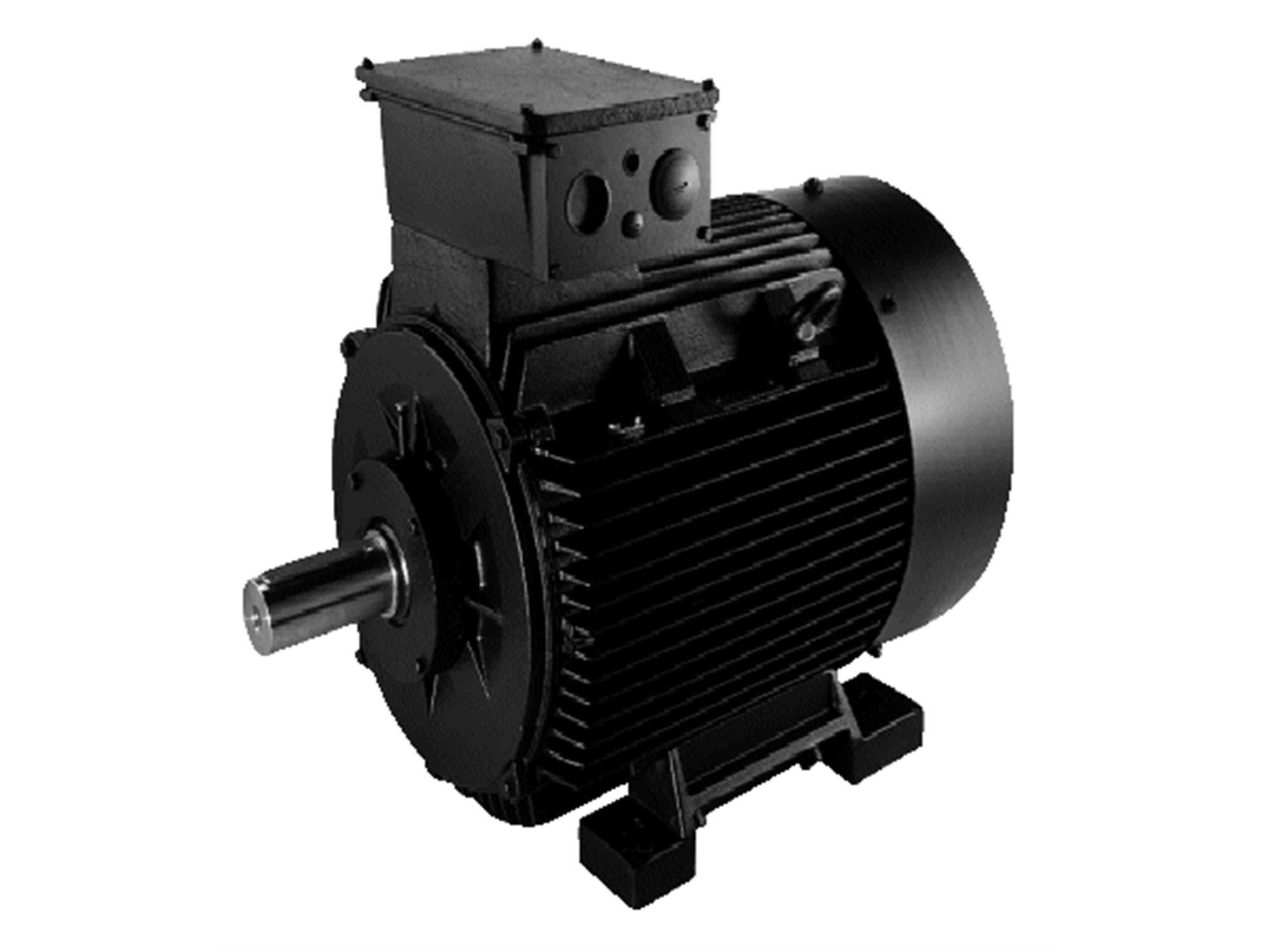

This motor is a TEFC MTR with 1.5 horsepower, designed for three-phase operation at 230/460 volts and 60 Hz. It has a frame size of 56C and includes the bearing type 6205PE.
Specifications
Manufacturer
Grundfos
Part Number
84Z06120
Shaft diameter
0.62 in
Length of shaft end
1.93 in
Approvals for motor
cURus/cCSAus
Energy approvals for motor
CC,
Cooling
TEFC
Range of ambient temperature
-22 .. 131 °F
Flange size for motor
56C
Motor type
BALDOR
Rated power - P2
1.5 HP
Main frequency
60 Hz
Rated voltage
3 x 208-230/460 V
Service factor
1.15
Rated current
4.5-4.4/2.2 A
Full load SF current
5-4.8/2.4 A
Rated speed
1760 rpm
IE efficiency
IE3 86.5%
IE Efficiency class
IE3 / NEMA Premium
Motor efficiency at full load
86.5 %
Number of poles
4
Enclosure class (IEC 34-5)
TEFC
Insulation class (IEC 85)
F
Built-in motor protection
NONE
Mounting design per IEC 34-7
NEMA type C
Bearing insulation type N-end
Steel Bearing
Net weight
40 lb
Color/Type
BLACK
Country of origin
US
Custom tariff no.
8501.52.4000
