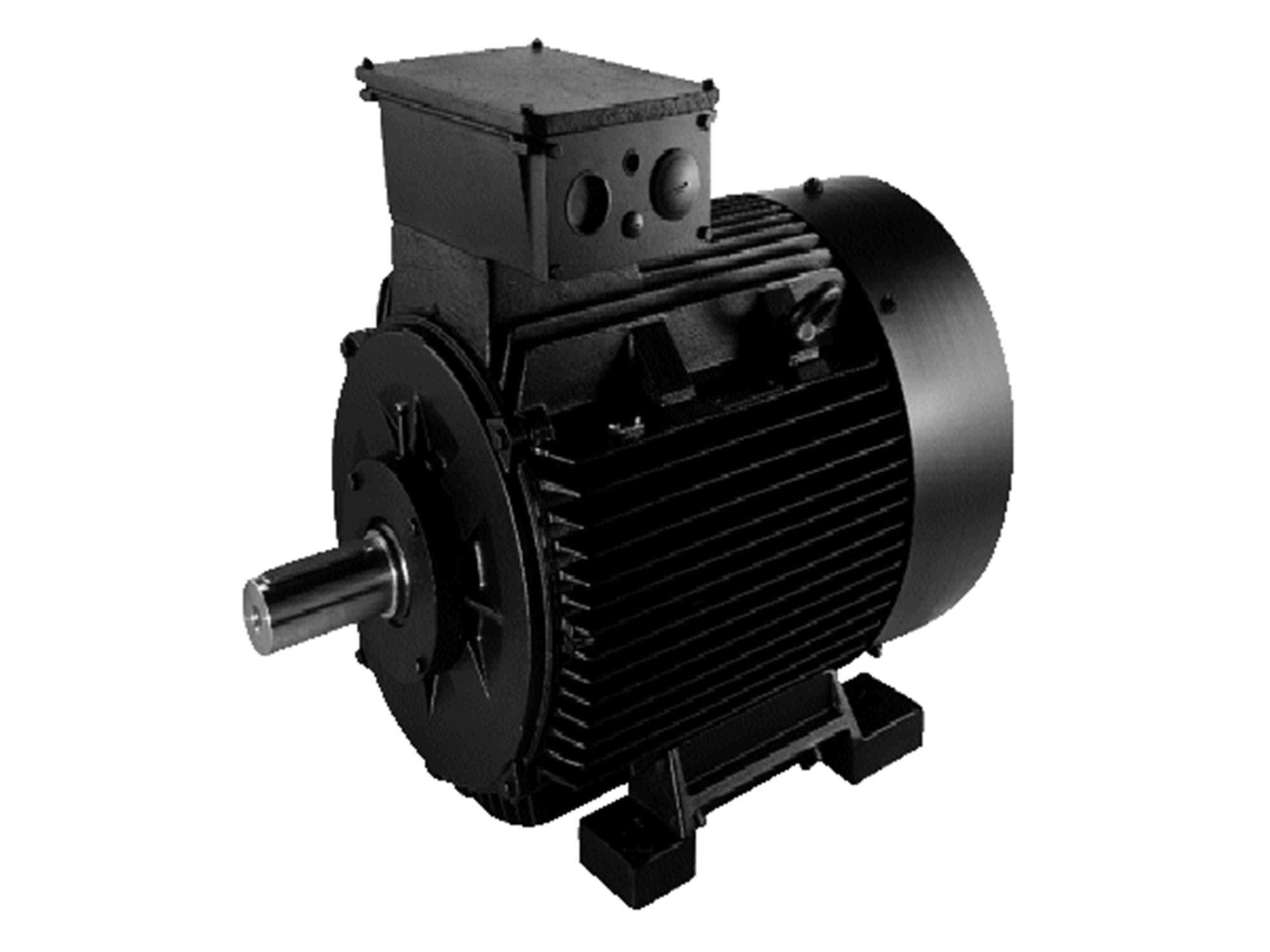

Name: Grundfos 84Z03568, Standard Motor Baldor 254TC
Brand: Grundfos
SKU: LSICC1FYCK
Price: 4211.0 USD
Availability: OutOfStock

Grundfos 84Z03568, Standard Motor Baldor 254TC

Roll over image to zoom in Click on image to zoom

This motor is categorized under standard motors.

Manufacturer	Grundfos
Part Number	84Z03568
Shaft diameter	1.62 in
Length of shaft end	3.75 in
Approvals for motor	cURus/cCSAus
Energy approvals for motor	CC,
Cooling	ODP
Maximum ambient temperature	104 °F
Flange size for motor	254TC
Motor type	BALDOR
Rated power - P2	20 HP
Main frequency	60 Hz
Rated voltage	3 x 230/460 V
Service factor	1.15
Rated current	47/23.5 A
Full load SF current	54/27 A
Rated speed	3525 rpm
IE efficiency	IE3 91,7%
IE Efficiency class	IE3 / NEMA Premium
Motor efficiency at full load	91.7 %
Number of poles	2
Enclosure class (IEC 34-5)	ODP
Insulation class (IEC 85)	F
Built-in motor protection	NONE
Tropic protec	No
Mounting design per IEC 34-7	NEMA type C
Bearing insulation type N-end	Steel Bearing
Net weight	221 lb
Color/Type	BLACK
Country of origin	US
Custom tariff no.	8413.70.2040

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
