Please note this item is made to order and additional lead-times may apply.

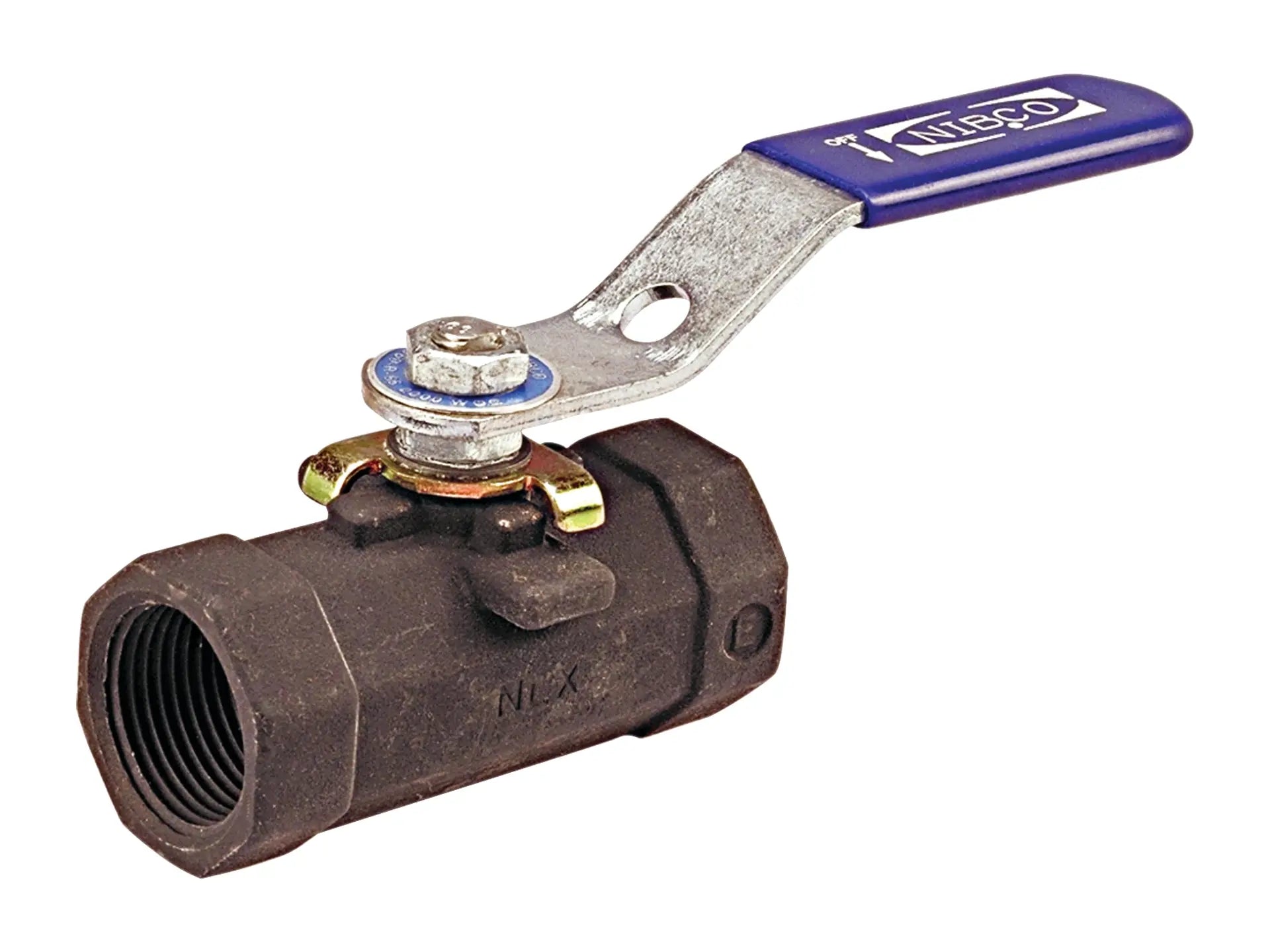

This NIBCO reduced port carbon steel ball valve meets Fire Safe requirements. The reinforced PTFE seat ring, Graphoil stem packing and stainless steel ball and stem exhibit high chemical resistance properties and is recommended for process piping. It features a standard locking lever handle for security purposes. It may be used for isolation and throttling (half open to full open only). Also available with oval handle. This NIBCO carbon steel ball valve provides ease of operation with quarter-turn (90°) open to close, and bubble-tight shutoff at 2000 psi. The one-piece design eliminates leak paths and features threaded ends for easy installation. The one-piece valve is recommended for petrochemical, utility service applications. Please refer to NIBCO technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO ball valves are backed by the exclusive NIBCO INC. 5-year 125% limited warranty.
Features
- Valve pressure rating 2000 psi 138 bar non-shock cold working pressure
- Maximum temperature rating 400°F
- Reduced port
- Blowout-proof stem
- Stainless steel ball and trim
- Vented ball
- Threaded end connections
- Locking lever handle
- Conforms to MSS SP-110
- API-607 Fourth Edition Fire Safe
