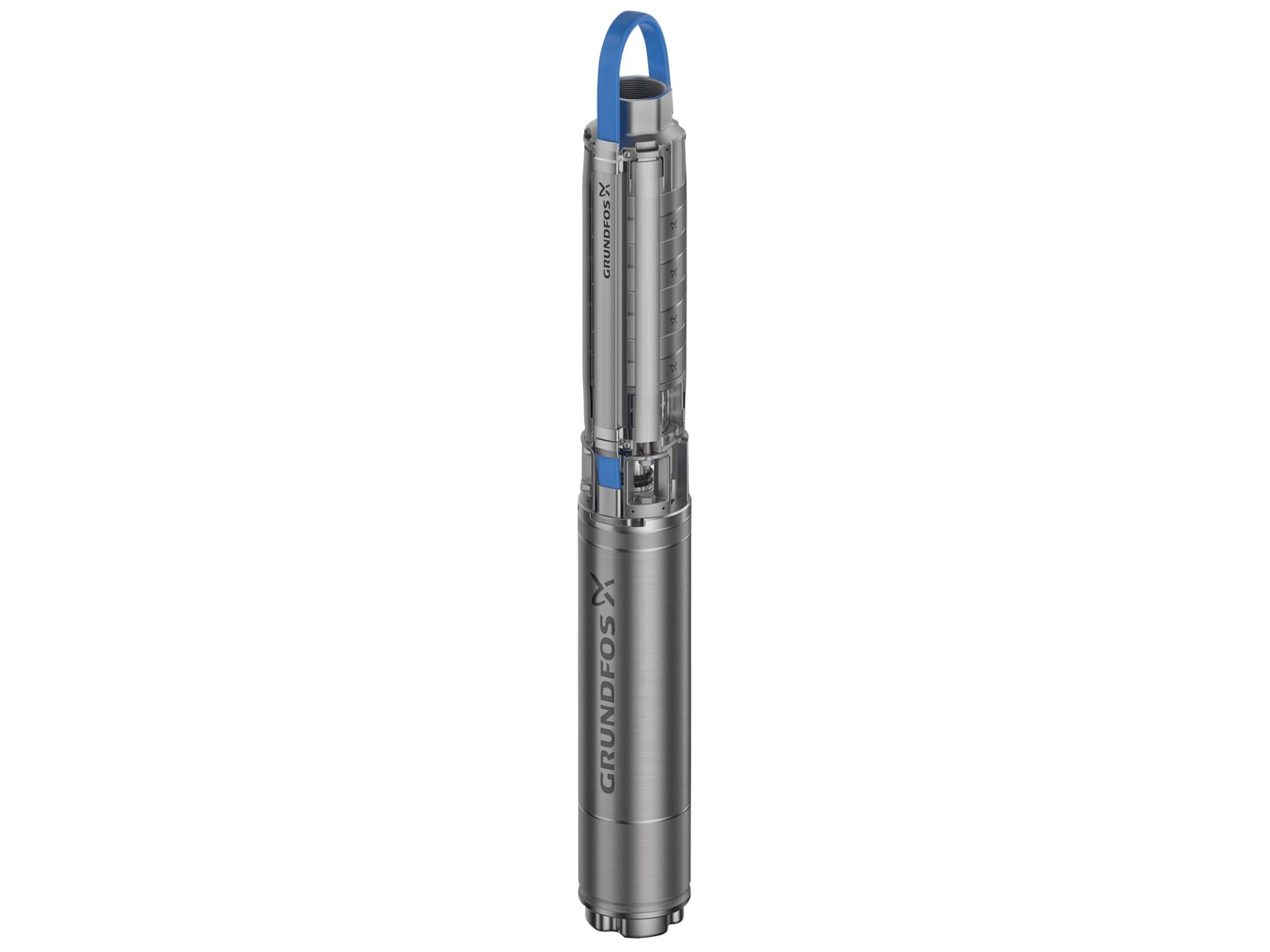

Grundfos 12BG3606, Submersible Pump 85S75-6 Stainless Steel

Roll over image to zoom in Click on image to zoom

Grundfos 12BG3606, Submersible Pump 85S75-6 Stainless Steel

Name: Grundfos 12BG3606, Submersible Pump 85S75-6 Stainless Steel
Brand: Grundfos
SKU: LSICRJUPVV
Price: 9826.95 USD
Availability: OutOfStock

SKU: LSICRJUPVV Part Number: 12BG3606

Price:

$9,826.95

Save -24% Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

This submersible pump is constructed from stainless steel, including EN 1.4301 (AISI 304), EN 1.4401 (AISI 316), and EN 1.4539 (AISI 904L) materials. It is suitable for applications such as groundwater extraction, irrigation, mining, fountains, and off-shore operations.

Manufacturer	Grundfos
Part Number	12BG3606
Pump speed on which pump data are based	3450 rpm
Rated flow	88.1 US gpm
Rated head	226.4 ft
Stages	6
Number of reduced-diameter impellers	NONE
Shaft seal for motor	SIC/SICNBR
Approvals	CULDWUS,CCSAUS
Approvals for drinking water	PROP65
Curve tolerance	ISO9906:2012 3B
Motor version	T40
Return valve	YES
Pump	Stainless steel, EN 1.4301, AISI 304
Impeller	Stainless steel, EN 1.4301, AISI 304
Motor	Stainless steel, DIN W.-Nr. 1.4301, AISI 304
Maximum ambient pressure	870.23 psi
Maximum operating pressure	870.23 psi
Maximum outlet pressure	145.04 psi
Type of connection	NPT(F)
Size of connection	3 inch
Motor diameter	6 inch
Minimum borehole diameter	5.71 in
Pumped liquid	Water
Liquid temperature range	5 .. 104 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Motor type	MS6000
Motor flange design	Grundfos
Rated power - P2	7.5 HP
Power (P2) required by pump	7.5 HP
KVA code	J
Main frequency	60 Hz
Rated voltage	3 x 440-460-480 V
Service factor	1.15
Rated current	13.2-13.0-13.0 A
Starting current	490-520-550 %
Cos phi - power factor	0.82-0.80-0.77
Rated speed	3470-3480-3490 rpm
Axial load max	1680 lb
Start. method	direct-on-line
Enclosure class (IEC 34-5)	IP68
Insulation class (IEC 85)	F
Built-in motor protection	NONE
Thermal protec	external
Built-in temperature transmitter	yes
Cable number	N/A
Windings	Enamelled
Minimum efficiency index, MEI ≥	-.--
DOE Pump Energy Index CL	0.85
Net weight	112 lb
Gross weight	165 lb
Shipping volume	6.32 ft³

5 S to 25 S (Service Instructions)

GRUNDFOS SUBMERSIBLES, SP PUMPS (Product brochure)

GRUNDFOS SMARTFLO (Product brochure)

SP (Data booklet)

SP/SPE, Stainless steel submersible pumps, 4", 6", 8", and 10" (I & O instructions)

SQ, SQE, CU 331, and SP (Data booklet)

OPTIMIZED INDUSTRIAL SOLUTIONS (Product brochure)

Cathodic protection (Quick guide)

SmartFlo, Start-up guide for SP pumps (I & O instructions)

Correction sheet for SP and SPE
