Please note this item is assembled to order and additional lead-times may apply.

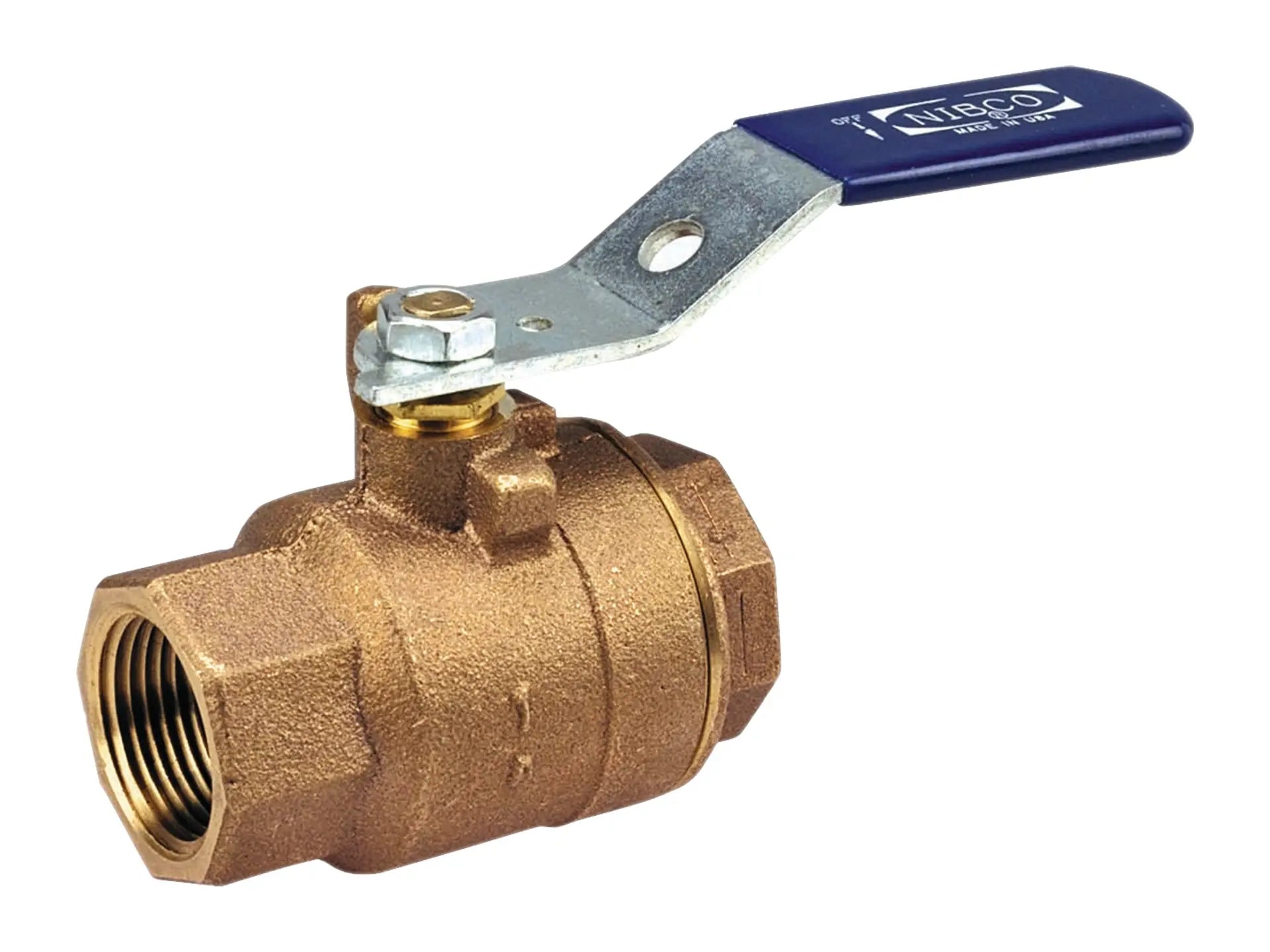

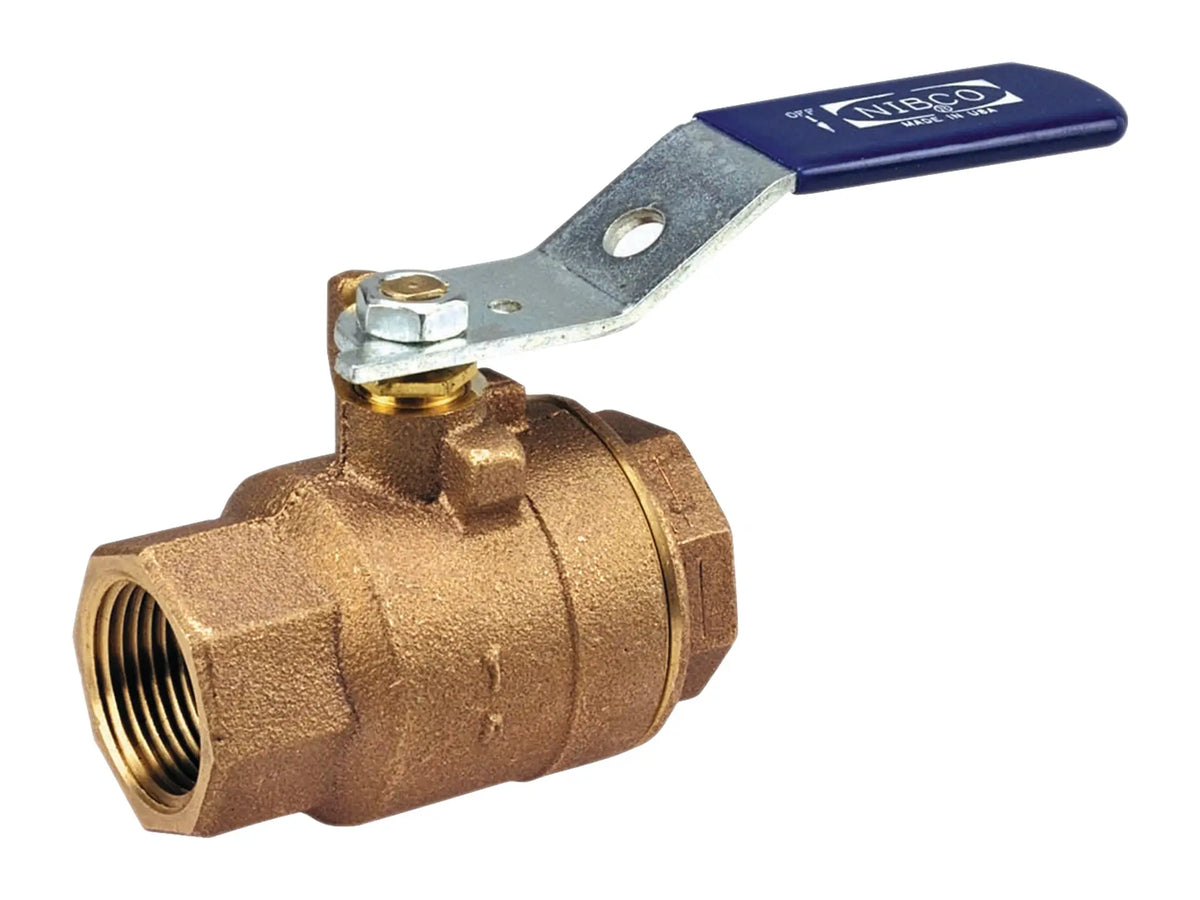

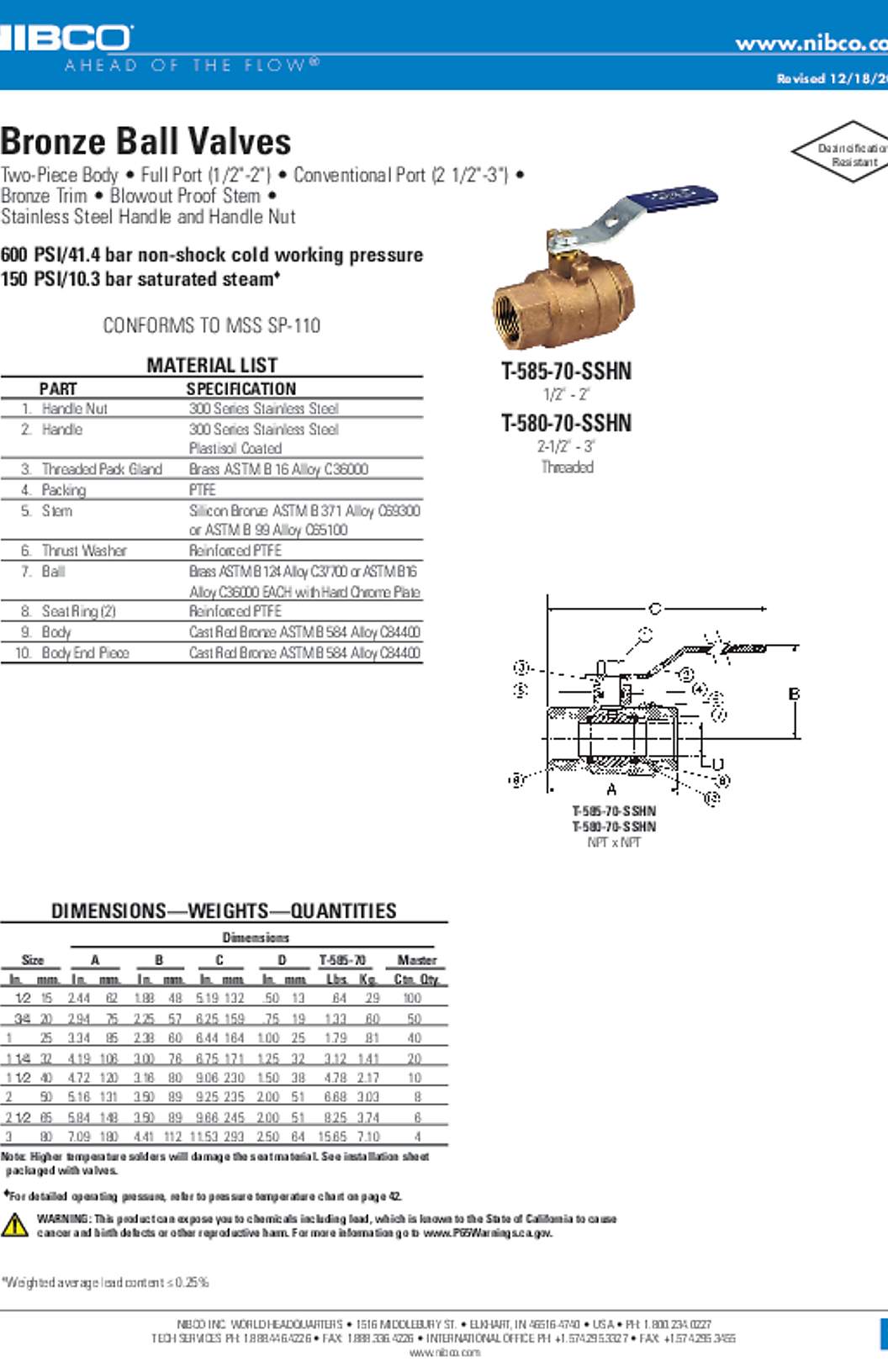

This NIBCO bronze ball valve provides bubble-tight shutoff at 600 psi. With the reinforced PTFE seat ring and brass hard chrome plated ball, the valve exhibits high chemical resistance properties. The two-piece valve is recommended for many high pressure applications, HVAC, hot and cold domestic water, Irrigation Water Shutoff, low pressure steam, compressed air, LP gas and natural gas. This NIBCO T-580-70-SSHN bronze ball valve provides ease of operation with quarter-turn (90°) open to close, with Stainless Steel Handle and Handle Nut for added corrosion resistance. The two-piece valve features thread ends for easy installation. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
Features
- Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
- Maximum temperature rating 400°F
- Chrome plated brass ball, silicon bronze stem
- Conventional port
- Blowout-proof stem
- Stainless steel lever handle and handle nut
- Threaded end connections
- Dezincification resistant
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-110
