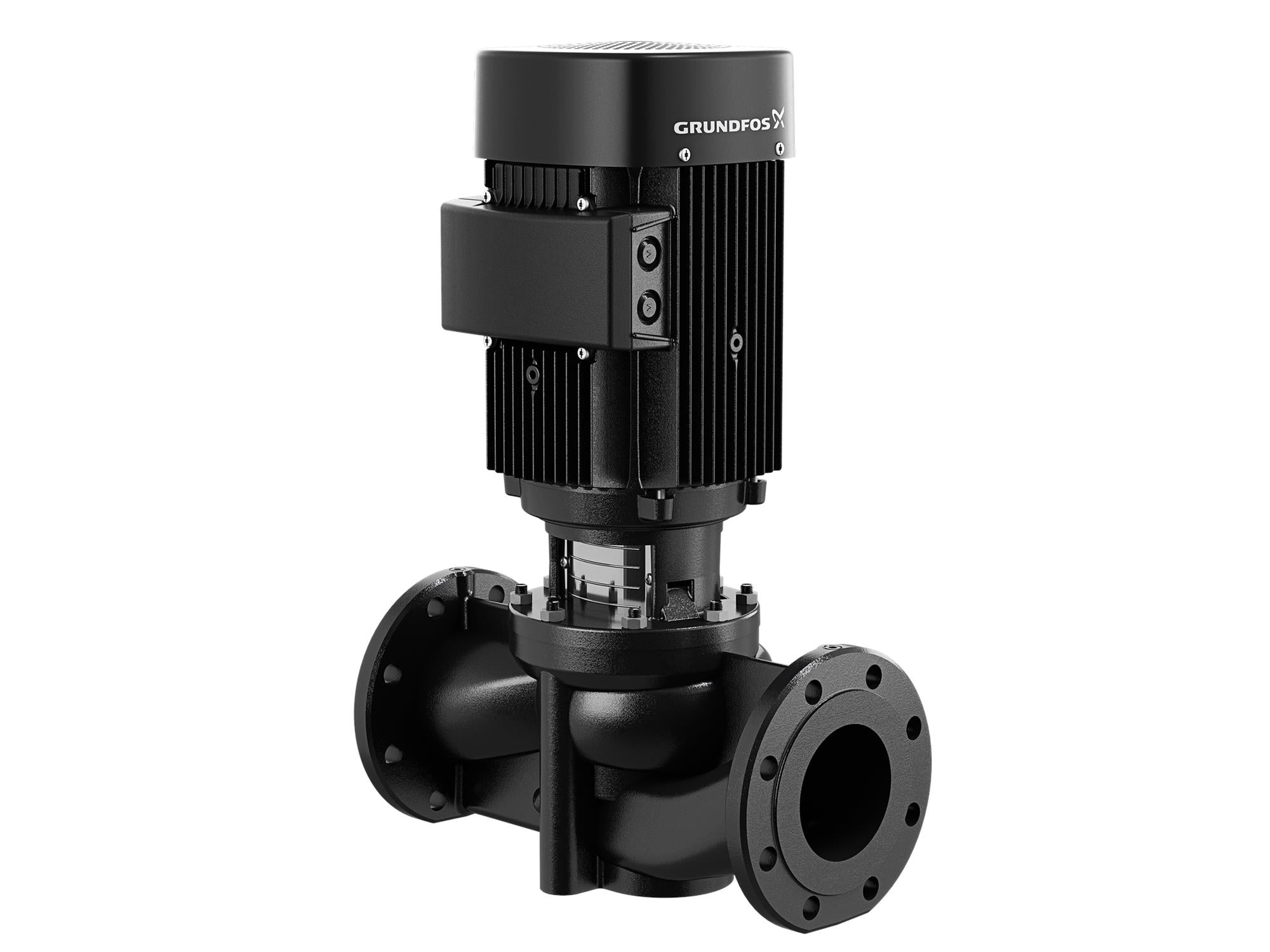

Grundfos 91122117, TP80-240/2 3HP CI PEO Inline Pump

SKU: LSIDCACU4L Part Number: 91122117

Price:
Sale price$4,637.95 Regular price$6,922.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This inline single-stage pump is a TP80-240/2 3HP CI PEO model, designed as a single-stage, close-coupled in-line centrifugal pump with a mechanical shaft seal. It is primarily used for heating, cooling, and district energy applications and has fixed-speed motors.

Specifications

Manufacturer Grundfos
Part Number 91122117
Rated flow 154 US gpm
Rated head 52.17 ft
Actual impeller diameter 4 in
Primary shaft seal BUBE
Curve tolerance ISO 9906:1999 Annex A
Pump housing Cast iron, EN-JL1040, ASTM 25 B
Impeller Stainless steel, DIN W.-Nr. 1.4301, AISI 304
Maximum operating pressure 145.04 psi
Flange standard ANSI
Pipe connection 3"
Pressure stage 125 lb.
Pumped liquid Water
Liquid temperature range 5 .. 284 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
DOE Pump Energy Index CL 0.88
Gross weight 87 lb
Country of origin US
Custom tariff no. 8413.70.2025

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
