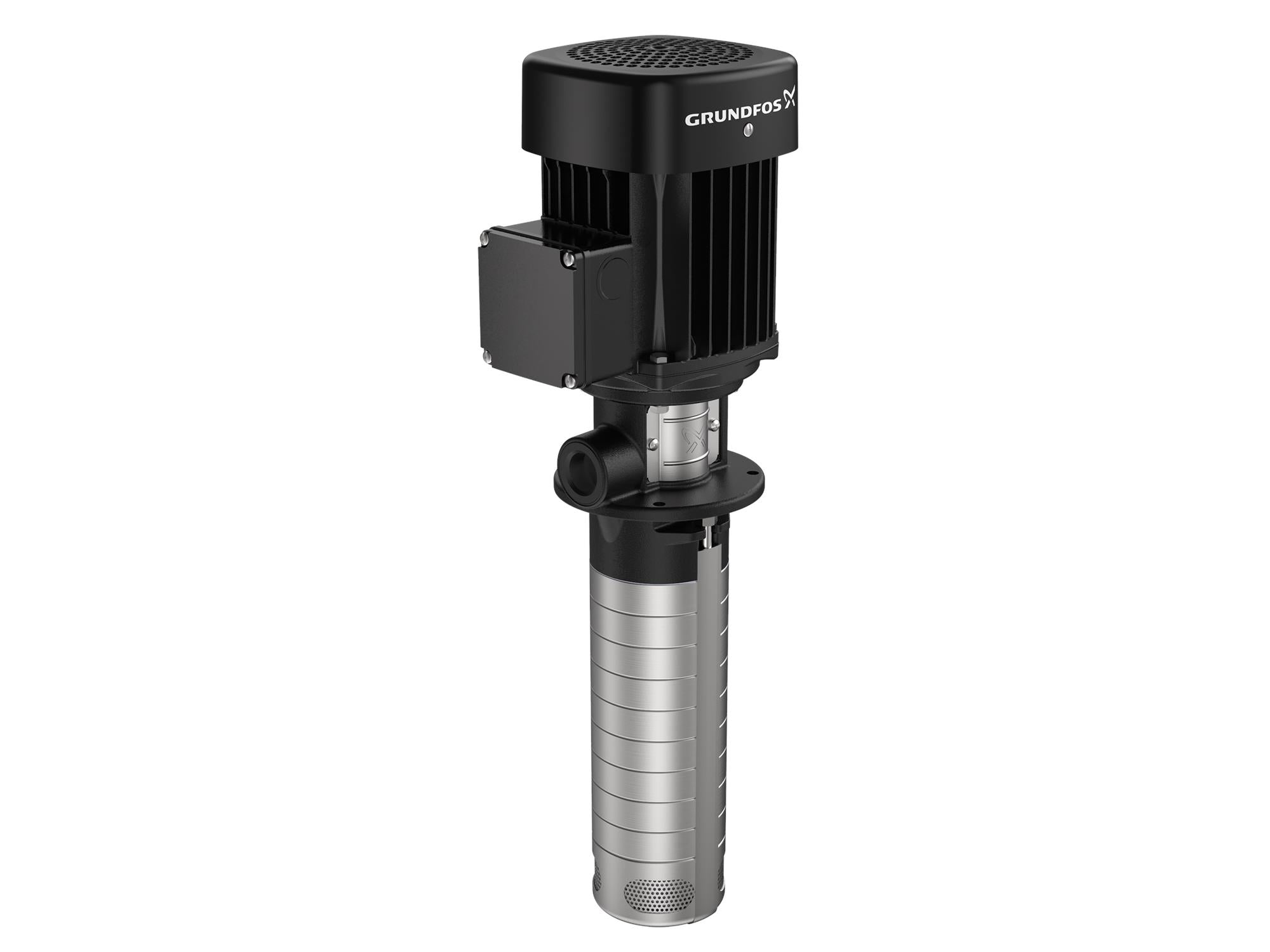

This vertical multistage centrifugal pump is designed for tank top mounting and is used for pumping cooling lubricants and cutting oils in machine tools, as well as condensate transfer and similar applications.
Specifications
Manufacturer
Grundfos
Part Number
97823305
Stages
5
Impellers
1
Code for shaft seal
AUUV
Approvals
CE,EAC,UKCA
Curve tolerance
ISO9906:2012 3B
Pump version
X
Drain holes
Open drain hole
Pump housing
Cast iron, EN 1561 EN-GJL-200, ASTM A48-25B
Impeller
Stainless steel, DIN W.-Nr. 1.4301, AISI 304
Material code
A
Max pressure at stated temperature
363 psi / 194 °F
Pipe connection
G 3/4
Flange size for motor
FT85
Connect code
W
Pumped liquid
Emulsion
Liquid temperature range
14 .. 194 °F
Selected liquid temperature
68 °F
Density
62.29 lb/ft³
Frequency converter
None
Net weight
10.4 lb
Gross weight
13.2 lb
