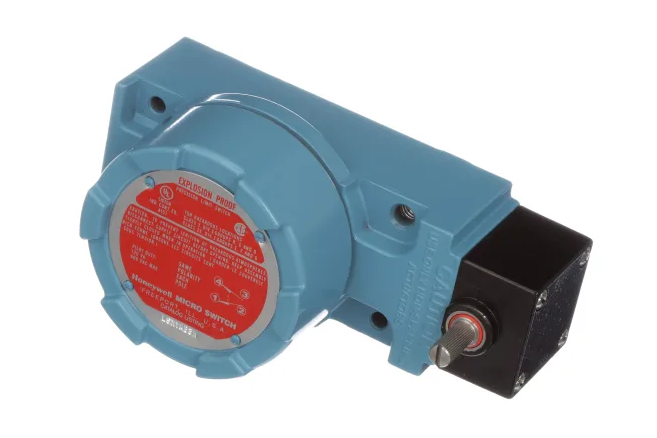

Low-temperature side-rotary plug-in explosion-proof switch with one normally open and one normally closed circuit, 1/2-1/4" NPT conduit connection. 60° minimum overtravel, 15° maximum pretravel, 5° (single pole) and 7° (double-pole) maximum differential travel.
MICRO SWITCH™ explosion-proof switches are designed specifically for use in hazardous area applications. In addition to meeting explosion-proof requirements, the MICRO SWITCH™ LSX meets additional enclosure sealing classifications, making the LSX ideal for outdoor use or in adverse environments where a combination of explosion-proof plus sealing requirements is needed.
The MICRO SWITCH™ LSX enclosure is sealed for protection against corrosion, water, dust, and oil, as defined in NEMA 1, 3, 4, 6, and 13. These enclosures also meet NEMA standards for hazardous type Div. 1 & 2, Class I, Groups B, C, & D; Div. 1 & 2, Class II, Groups E, F, & G.
