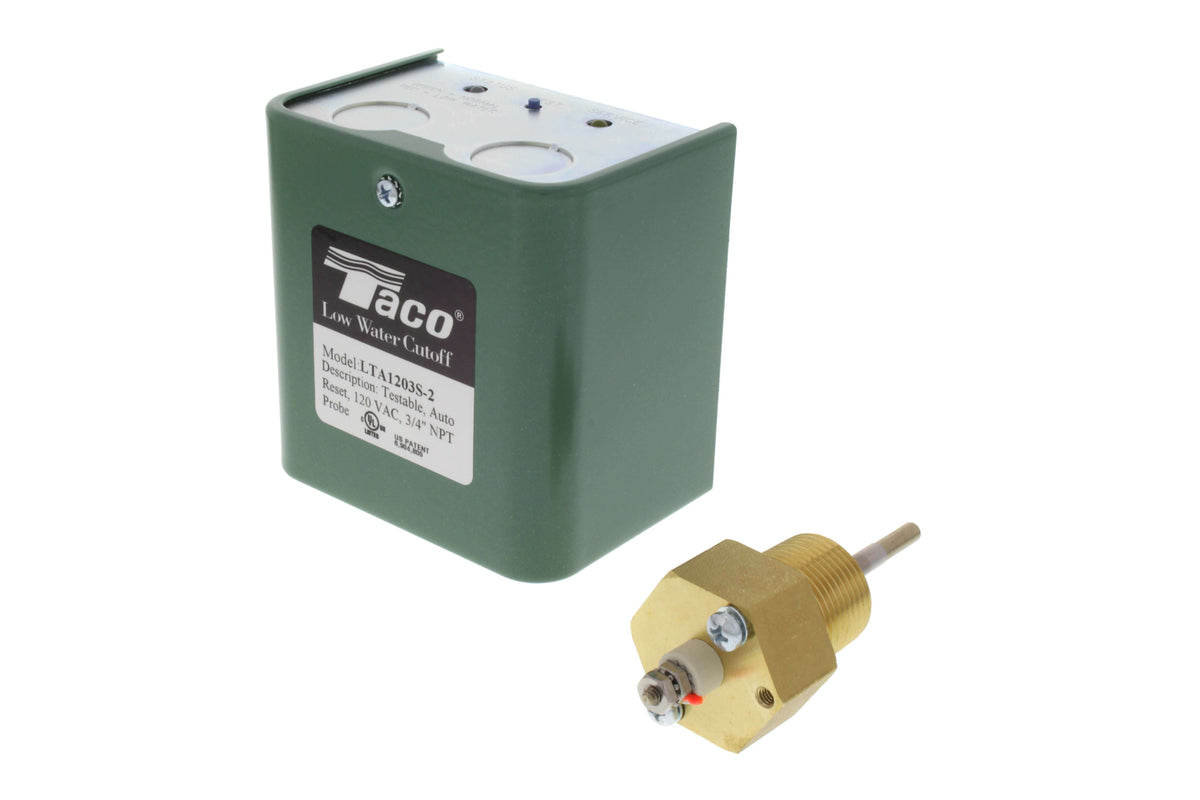

Taco 120V low water cut-off (LWCO) with automatic reset and 3/4" probe. LTA-2 models are used on smaller hot water boilers (usually under 400,000 BTU). They are available in 24 and 120 VAC auto reset models; the LTA-2 has a compact full metal enclosure with direct probe mounting, a test button, external LED lights, and easy-to-wire tri-barrier terminals. Built with the same patented signal processing technology as the LTR, the LTA-2 is a great solution for upgrading the safety of current systems or when traditional 120 VAC hard wiring is required.
LTA-2 Model Performance Data
-
Maximum Pressures Hot Water: 250 psi (17.6 kg/cm2) @250˚F (121˚C)
- Maximum Ambient Temperature: 150˚F (66˚C)
- Probe Sensitivity: 20K Ohms, extended operation to 40K Ohms
- Control Power Consumption: 2.8VA @ 120VAC, 2.8VA @ 24VAC
- Input Supply Voltage: 120VAC, 24VAC*
*24VAC supplied by a Class 2 power source
Taco Low Water Cut-Offs Overview
Taco Low Water Cut-Offs provide accurate and dependable protection for all boilers, from small residential hot water boilers to large industrial steam units. This probe-style Low Water Cut-Off features patented DualVision Technology, external LEDs, simplified wiring for easy installation and testing, and automatic, manual reset mode and are available in 24VAC or 120VAC models. The Taco Low Water Cut-Off can act as the primary or secondary low water cutoff on low-pressure steam boilers, the primary limit control on hot water boilers, or protect pumps from running dry in condensate receiver tank applications. The Low Water Cut-Off can also activate alarm systems or automatic water feeders.
Taco Low Water Cut-Offs Features
- Probe Style Low Water Cutoff
- Worry-Free Operation
- Simplified Installation & Wiring
- LED Verification
- Selection Ease
- Seamless Integration
Taco Low Water Cut-Offs Applications
- Hot Water Heating Systems
- Closed Cooling Circuits
- Air Conditioning Systems
- Hydronic Heating & Cooling
- Water/Glycol concentrations up to 50%
- Solar / Geothermal
