This Taco 4900 Series Commercial Air and Dirt Separator, Model 49025ADG, is designed to remove air and dirt from hydronic systems. It features a 2.5" grooved connection and can handle pressures up to 125 psi. The separator works by using centrifugal force to separate air and dirt particles from the water in the system, which are then collected in a removable stainless steel strainer. This helps to prevent problems such as corrosion, pump cavitation, and reduced system efficiency. The Taco 4900 Series separator is easy to install and maintain, making it an excellent choice for commercial applications where reliable performance is essential.

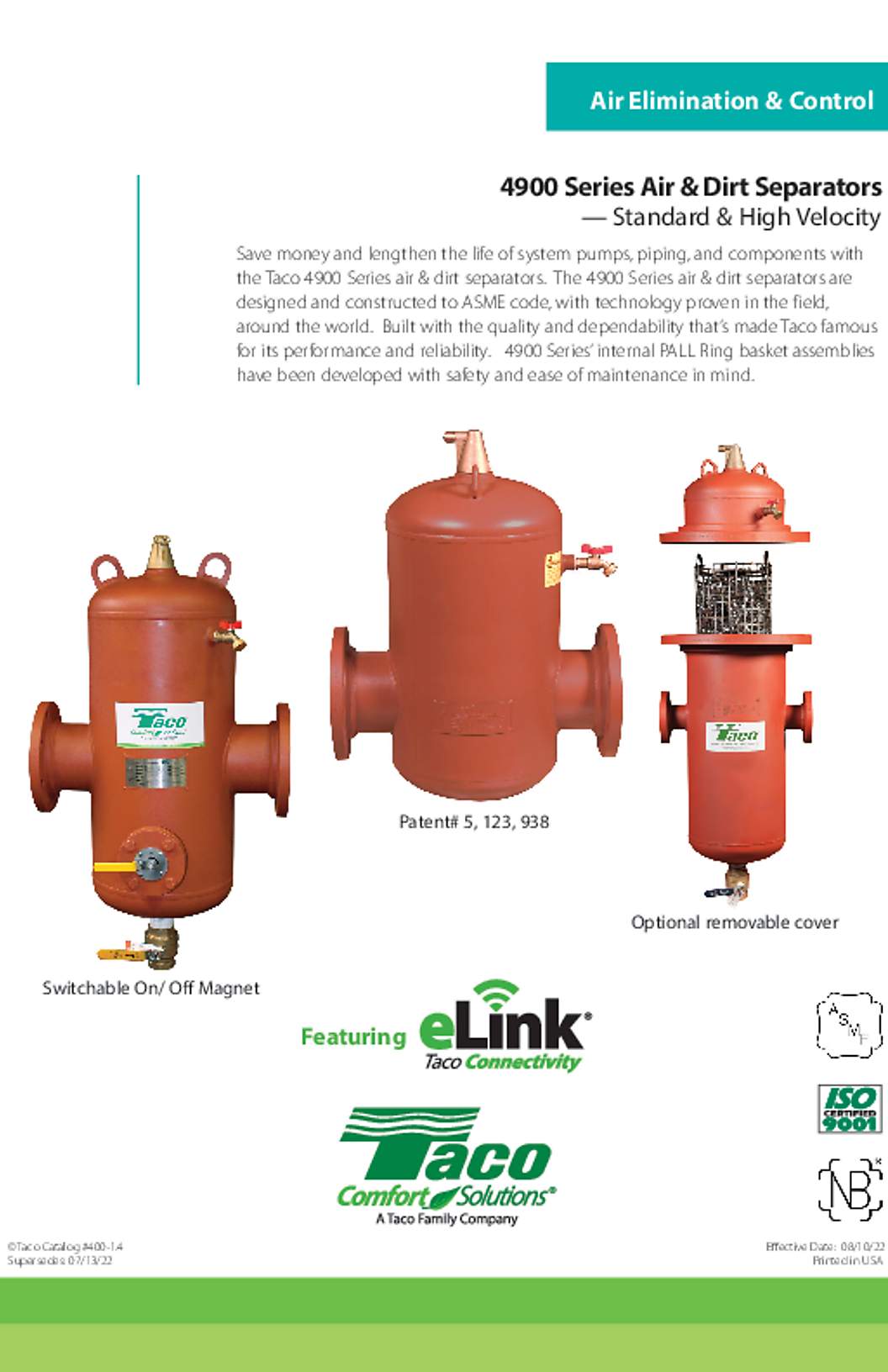

4900 Series Overview
Taco 4900 Series Commercial Air & Dirt Separators efficiently remove air, dirt, and other contaminants from system components, enhancing efficiency and longevity. They use patented PALL ring technology to eliminate micro-bubbles and debris, while an optional magnet collects iron oxide and magnetite.
These separators also feature a vent mechanism for releasing merged micro-bubbles and a blowdown valve to dispose of dirt. The magnet, easily activated by a handle, simplifies maintenance and magnetite removal. They are suitable for systems with variable speed and constant flow.
Taco 4900 Series separators are constructed and tested to ASME Section VIII, Div. 1 standards. Their design is guided by computerized selection, tailored for each application. All manufacturing occurs in-house, ensuring quality. Independent third-party tests validate performance.
Features & Benefits
- Available with high power switchable ON/OFF magnet for black iron oxide and magnetite removal
- Designed, constructed, and tested to ASME Section VIII, Div. 1 requirements
- Integral stainless steel PALL ring basket
- Furnished with air vent (dirt and air/dirt models furnished with full port blowdown valve)
- Available with removable cover

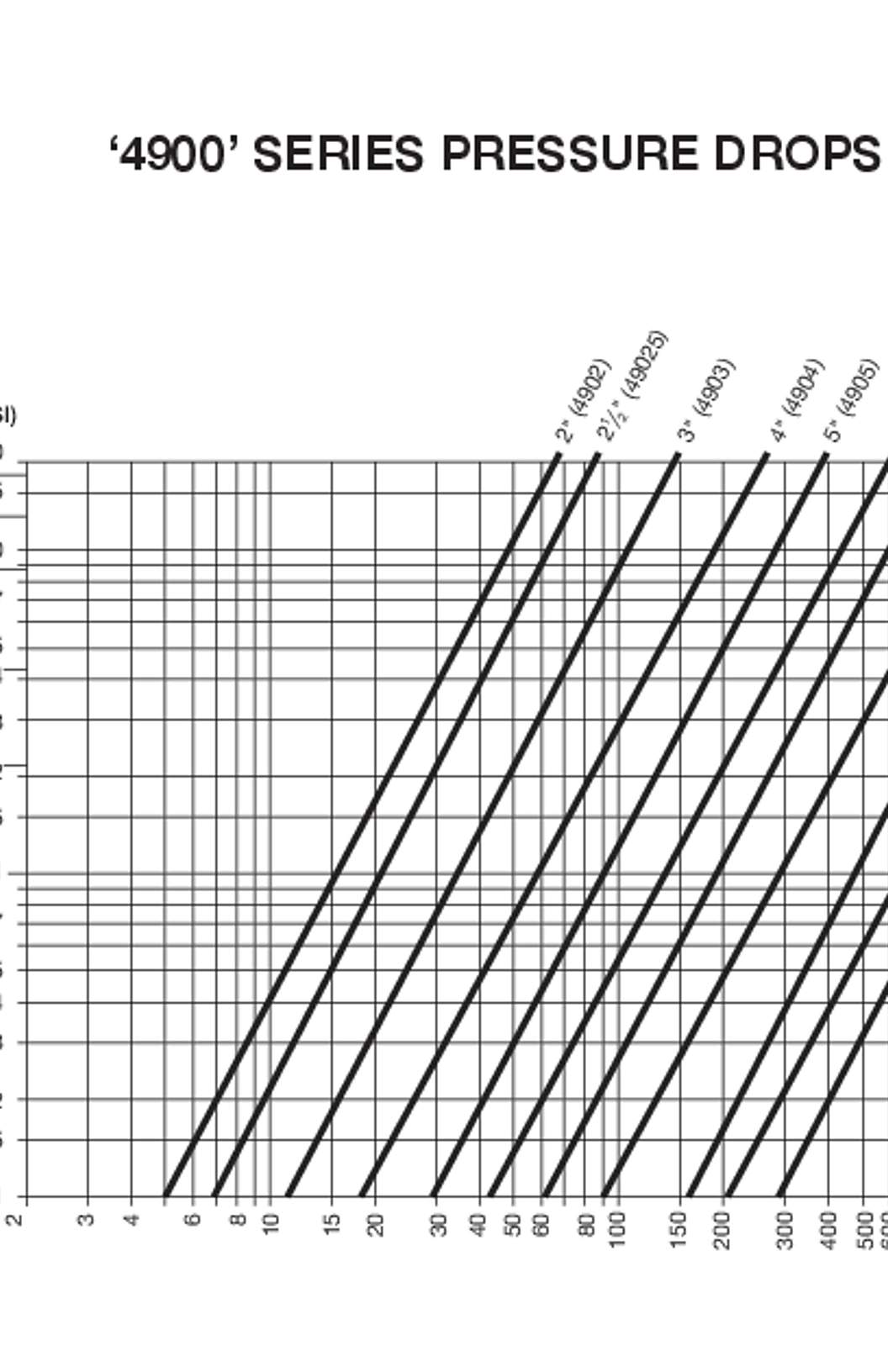

- 2 psi or less pressure drop at flow rates shown on submittal
- Higher maximum pressures available
- All fabrication done in house

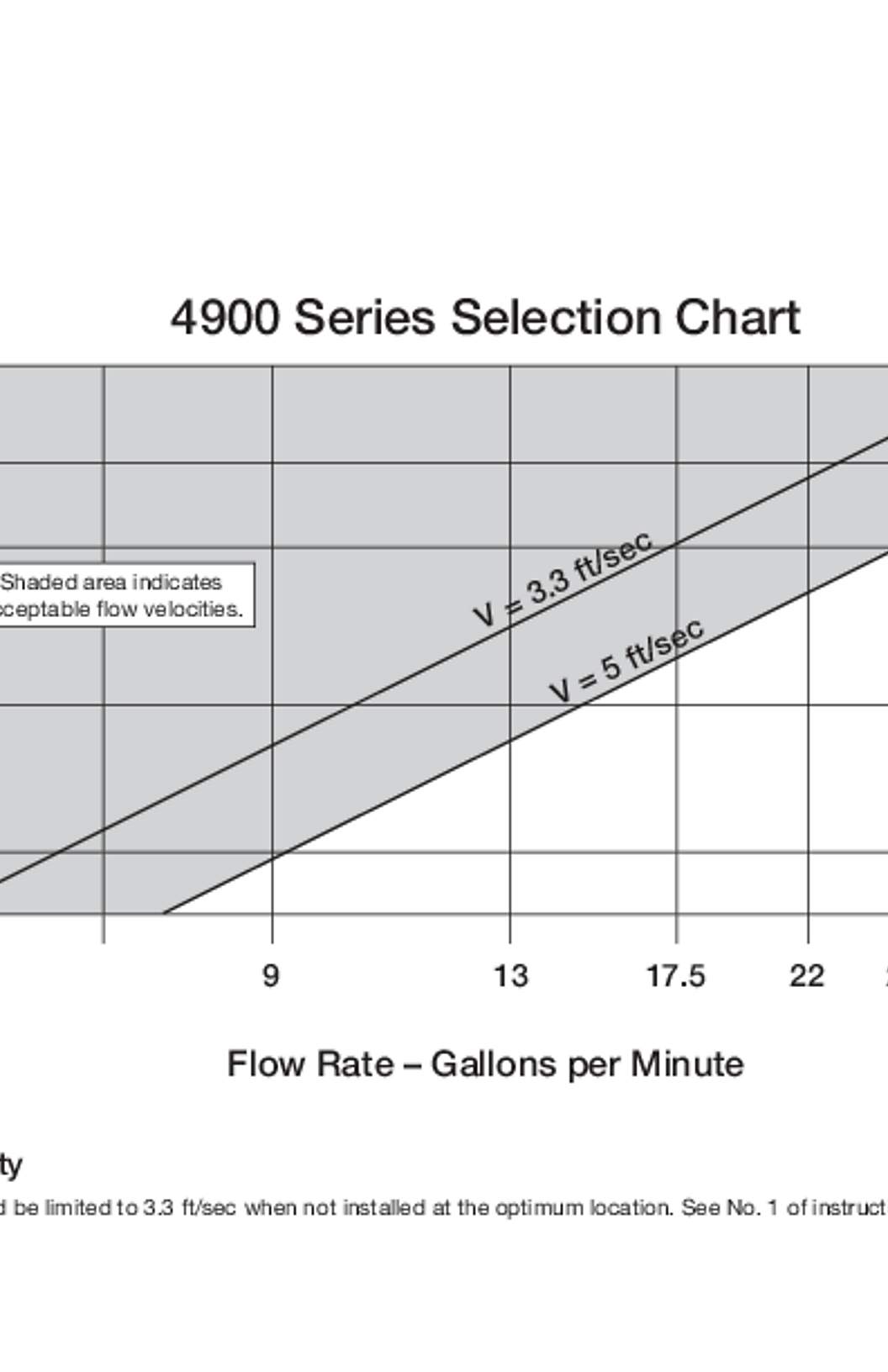

- Computerized selections to ensure fast and easy design
- National Board Registration
- CRN registration (optional)
