Grundfos 96522870, CRI 10-3 A-CA-A-E-HQQE Vertical Multistage Pump

Roll over image to zoom in Click on image to zoom

Grundfos 96522870, CRI 10-3 A-CA-A-E-HQQE Vertical Multistage Pump

Name: Grundfos 96522870, CRI 10-3 A-CA-A-E-HQQE Vertical Multistage Pump
Brand: Grundfos
SKU: LSIF5OW1DZ
Price: 3843.95 USD
Availability: OutOfStock

SKU: LSIF5OW1DZ Part Number: 96522870

Price:

$3,843.95 $5,737.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

This vertical multistage centrifugal pump has suction and discharge ports on the same level, with materials in contact with the liquid made of stainless steel (EN 1.4301). It is suitable for applications such as water treatment fertigation, chemigation, dosing, controls and digital groundwater management, and drip, micro spray, and soaker hose irrigation.

Manufacturer	Grundfos
Part Number	96522870
Rated pump speed	3457 rpm
Rated flow	53.3 US gpm
Rated head	111.6 ft
Maximum head	144.4 ft
Actual impeller diameter	3.66 in
Stages	3
Impellers	3
Number of reduced-diameter impellers	0
Low NPSH	N
Pump orientation	Vertical
Shaft seal arrangement	Single
Code for shaft seal	HQQE
Approvals	CURUS
Curve tolerance	ISO9906:2012 3B
Pump version	A
Cooling	TEFC
Base	Stainless steel, EN 1.4408, AISI 316
Impeller	Stainless steel, EN 1.4301, AISI 304
Material code	A
Code for rubber	E
Bearing	SIC
Maximum ambient temperature	104 °F
Maximum operating pressure	232.06 psi
Max pressure at stated temperature	232 psi / 250 °F, 232 psi / -4 °F
Type of connection	FlexiClamp
Size of inlet connection	DN 50
Size of outlet connection	DN 50
Pressure rating for connection	PN 25
Flange size for motor	182TC
Connect code	CA
Pumped liquid	Water
Liquid temperature range	-4 .. 248 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Motor standard	NEMA
Motor type	BALDOR
Rated power - P2	3 HP
Power (P2) required by pump	3 HP
Main frequency	60 Hz
Rated voltage	1 x 115/208-230 V
Service factor	1.15
Rated current	29/16-14,5 A
Full load SF current	31,8/18-16,9 A
Rated speed	3450 rpm
IE efficiency	75%
Motor efficiency at full load	75 %
Number of poles	2
Enclosure class (IEC 34-5)	IP55
Insulation class (IEC 85)	F
Built-in motor protection	NONE
Frequency converter	None
DOE Pump Energy Index CL	0.87
Net weight	146 lb
Gross weight	161 lb
Shipping volume	8.26 ft³

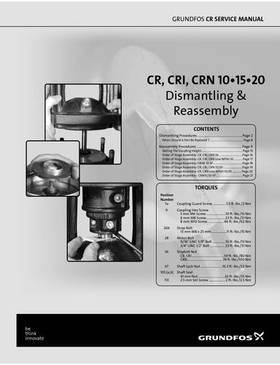

CR, CRI, CRN 10, 15 & 20 (Dismantling & Reassembly) (Service manual)

CR Reading the Pump Nameplate

CR, CRI, CRN - Vertical multistage centrifugal pumps (Data booklet)

CR, CRI, CRN, CRT, CRE, CRIE, CRNE, CRTE (Custom-built pumps) (Data booklet)

GRUNDFOS CR/CRE, Vertical Multistage Variable Speed System (Leaflet)

CR, CRI, CRN, CRT (I & O instructions)
